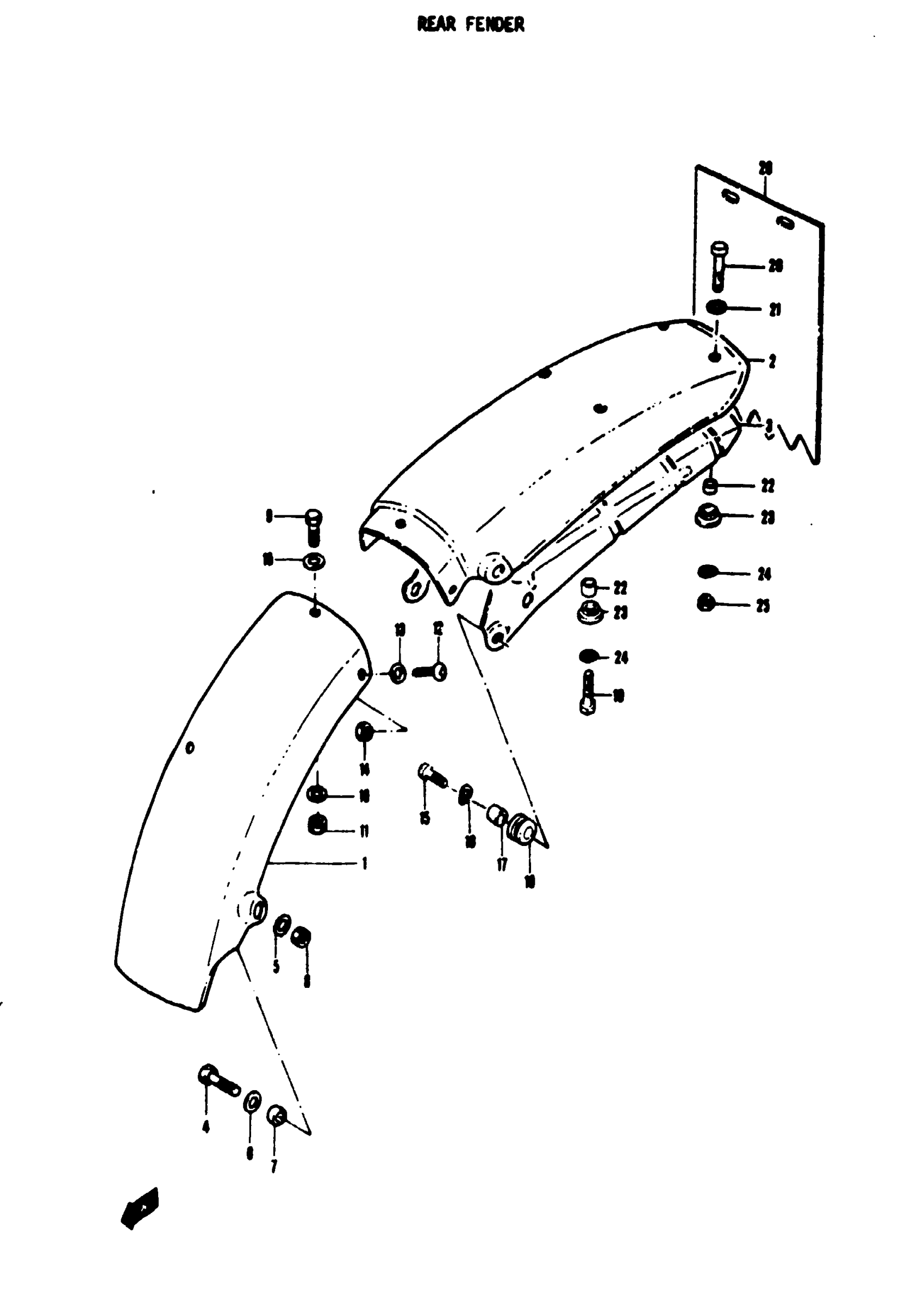

Suzuki TS50 (1974) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-26001-019

Unavailable

2

NO DESCRIPTION AVAILABLE | TS50J This part replaces 63113-26001-184.

63113-26001-737

Unavailable

2

NO DESCRIPTION AVAILABLE | TS50R This part replaces 63113-26001-176.

63113-26001-737

Unavailable

2

BODY, REAR FENDER REAR

63113-26001-185

Unavailable

2

NO DESCRIPTION AVAILABLE | TS50R This part replaces 63113-26001-711.

63113-26001-737

Unavailable

2

NO DESCRIPTION AVAILABLE | TS50K This part replaces 63113-26001-712.

63113-26001-737

Unavailable

3

REINFORCEMENT, REAR FENDER

63120-26000

Unavailable

4

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

5

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

6

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

7

SPACER | 7.6x10x5

09180-07007

Unavailable

8

.NUT This part replaces 08311-11068.

08310-00067

$2.13

9

BOLT | 6x14 This part replaces 09100-06026.

09100-06067

Unavailable

10

WASHER, CENTER | 6.5x16x1.26.5x16x1.2

09160-06019

$1.49

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

SCREW This part replaces 02141-05127.

02142-05127

$1.97

13

WASHER This part replaces 08322-11058.

08322-01057

$2.13

14

NUT This part replaces 08311-11058.

08310-00057

$1.84

15

BOLT This part replaces 01112-06208.

01500-06207

$2.28

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

SPACER | 6.1x9x7.5

09180-06038

$1.98

18

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

19

BOLT, REAR | 6x18

09100-06064

$1.61

20

BOLT This part replaces 01112-06208.

01500-06207

$2.28

21

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

22

SPACER, REAR | 7.6x10x7

09180-07011

Unavailable

23

CUSHION, REAR

09320-09006

Unavailable

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

25

.NUT This part replaces 08311-11068.

08310-00067

$2.13

26

FLAP, REAR FENDER MUD | TS50R,TS50J,TS50K; OPT

63331-26000

Unavailable
