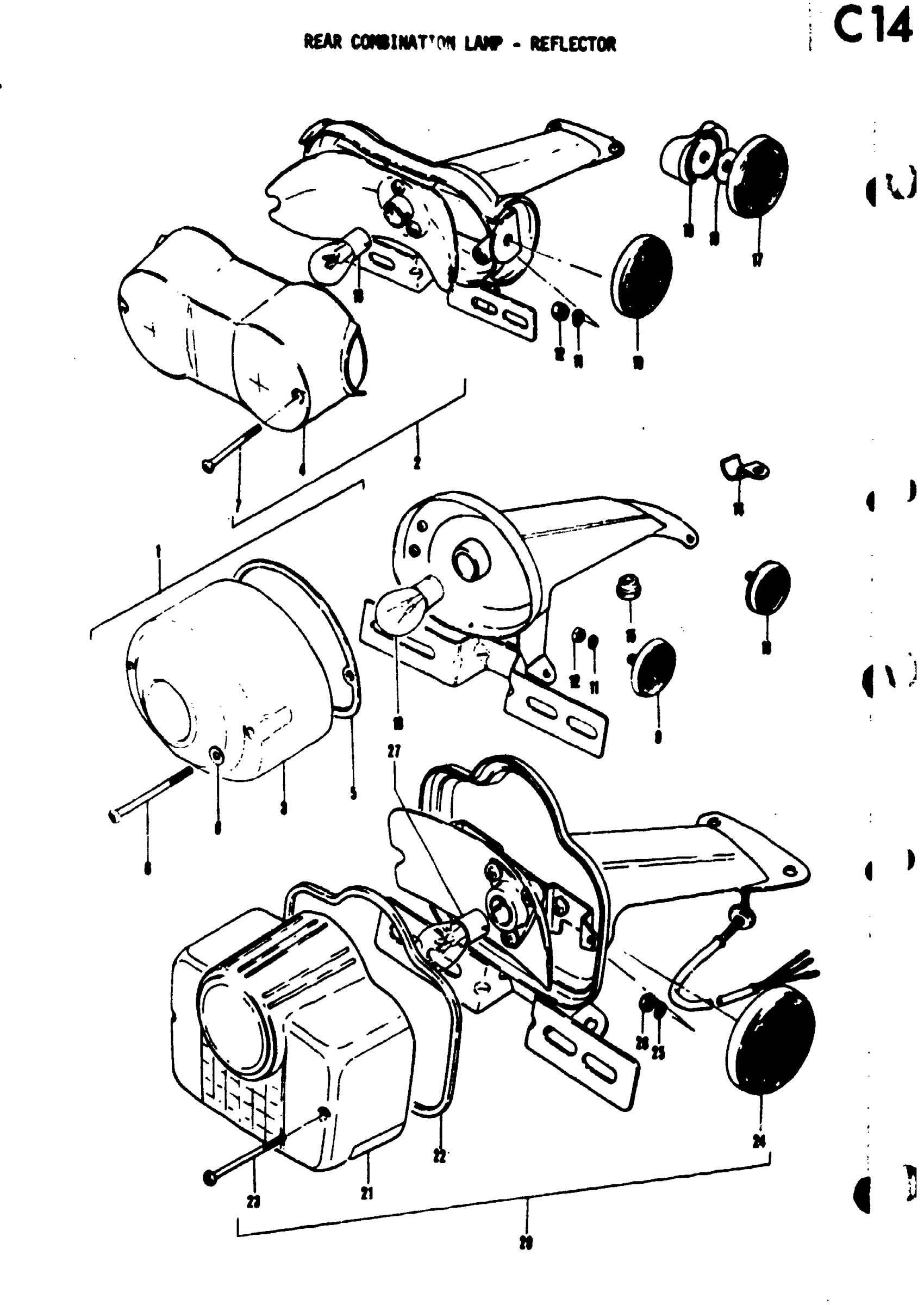

Suzuki TS50 (1974) REAR COMBINATION LAMP - REFLECTOR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | TS50R This part replaces 35000-26813-999.

35710-26610

Unavailable

2

NO DESCRIPTION AVAILABLE | TS50J; Includes Item(s) 3 - 12 This part replaces 35000-26812-999.

35710-26690

Unavailable

3

LENS, RR COMB L | TS50R This part replaces 35712-22610.

35712-06112

$35.16

4

TAIL LAMP LENS | TS50J This part replaces 35712-27690.

35712-27671

Unavailable

5

GASKET, LENS | TS50R

35713-15010

Unavailable

6

SCREW | TS50R

02113-04558

Unavailable

7

SCREW | TS50J This part replaces 02111-04508.

02112-0450A

$1.51

8

WASHER, LENS | TS50R

35727-03010

Unavailable

9

REFLECTOR, REAR | TS50R

35970-22611

Unavailable

10

REFLECTOR, REAR | TS50J

35970-31610

Unavailable

11

LOCK WASHER | TS50R,TS50J This part replaces 08321-21058.

08321-0105A

$1.84

12

NUT | TS50R,TS50J This part replaces 08311-11058.

08310-00057

$1.84

13

BULB | TS50R,TS50J; 6V, 21/3CP US#1154

09471-06009

$3.99

14

CLAMP This part replaces 09403-00069.

09404-06037

Unavailable

15

GROMMET

09308-06002

Unavailable

16

REFLECTOR, FRONT RH | TS50R

35950-22612

Unavailable

16

REFLECTOR, FRONT LH | TS50R

35960-22612

Unavailable

17

REFLEX REFLECTOR FRONT | TS50J,TS50K,TS50L This part replaces 35950-31010.

35950-49080

$17.24

18

WASHER (6.5X20X1.6) | TS50J; 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

18

WASHER (6.5X20X1.2) | TS50K,TS50L; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

19

SPACER, FRONT REFLECTOR | TS50J,TS50K,TS50L

35995-29000

Unavailable

20

LAMP ASSY, REAR COMBINATION | TS50K,TS50L; Includes Item(s) 21 - 26 This part replaces 35000-26814-999.

35710-26691

Unavailable

21

LENS RR COMB LA | TS50K,TS50L; This part replaces 35712-27630.

35712-23011

$59.80

22

GASKET | TS50K,TS50L

35713-27630

$6.30

23

SCREW 4X55 | TS50K,TS50L This part replaces 02111-04558.

02112-04558

$1.65

24

REFLECTOR, REAR | TS50K,TS50L

35970-31610

Unavailable

25

LOCK WASHER | TS50K,TS50L This part replaces 08321-21058.

08321-0105A

$1.84

26

NUT | TS50K,TS50L This part replaces 08311-11058.

08310-00057

$1.84

27

BULB | TS50K,TS50L; 6V, 32/3CP

09471-06030

Unavailable
