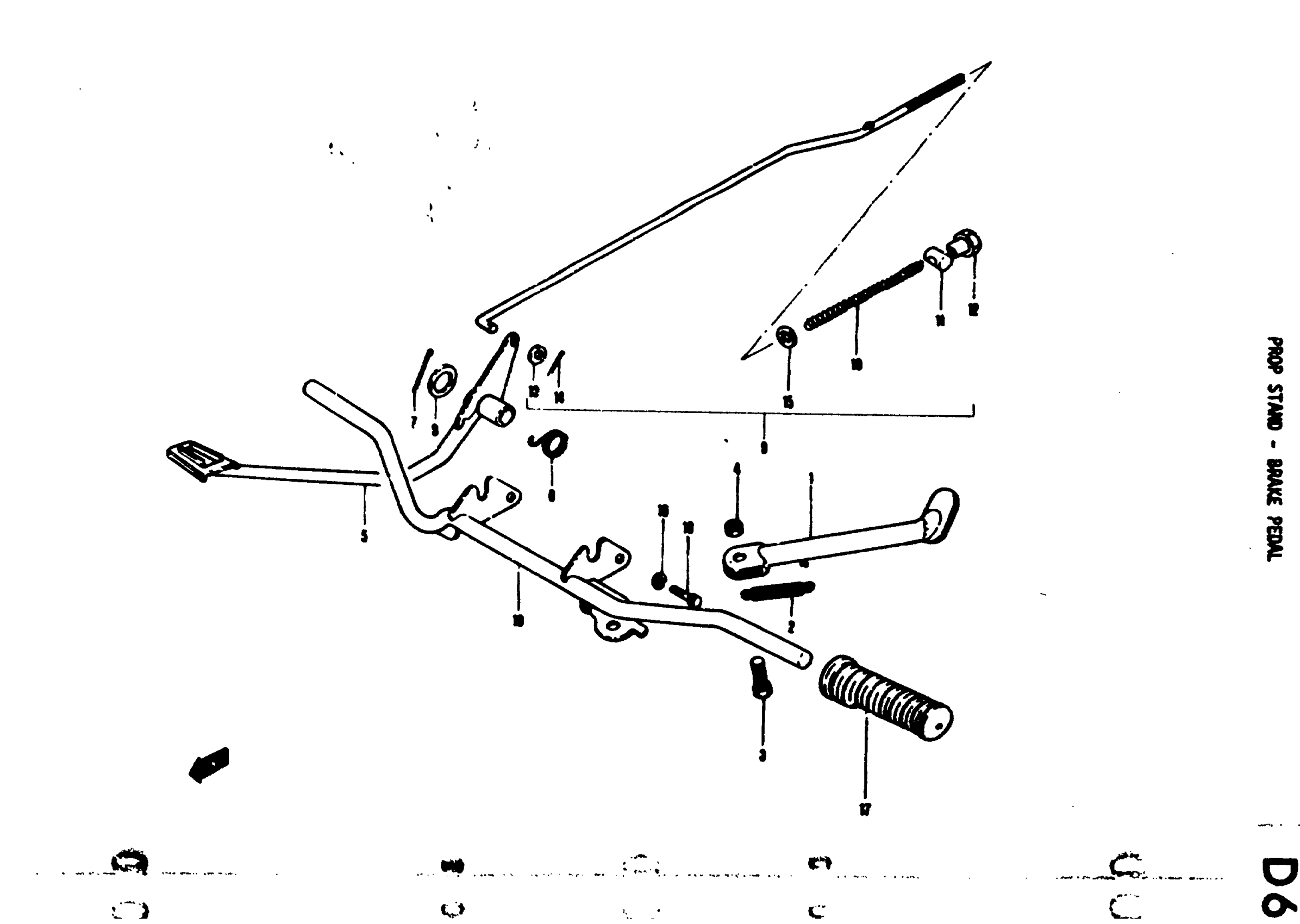

Suzuki TS50 (1974) PROP STAND - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, PROP

42310-24900

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT, PROP STAND | 10x30

09100-10067

$2.61

4

NUT This part replaces 08312-31108.

08310-00107

$2.19

5

PEDAL, BRAKE

43110-26000

Unavailable

6

SPRING, RETURN

09448-31008

Unavailable

7

PIN This part replaces 04111-30308.

04111-3030A

$1.49

8

WASHER, BRAKE PEDAL | 15.5x24x2.3

09160-15002

$1.91

9

ROD ASSY, BRAKE | TS50R,TS50J,TS50K; TO 43300-26001

43300-26000

Unavailable

9

ROD ASSY, BRAKE | TS50L; Includes Item(s) 10 - 15

43300-26001

Unavailable

10

SPRING, BRAKE ROD

09440-09004

$2.20

11

PIN, LEVER

09209-11002

$2.19

12

.NUT This part replaces 09150-06001.

09150-06010

$3.10

13

WASHER This part replaces 08322-21058.

08322-01057

$2.13

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

BAR, FOOTREST

43510-26000

Unavailable

17

RUBBER This part replaces 43551-03000.

43551-03001

$7.22

18

PLUG, DRAIN This part replaces 01122-08168.

01500-0816B

$2.50

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
