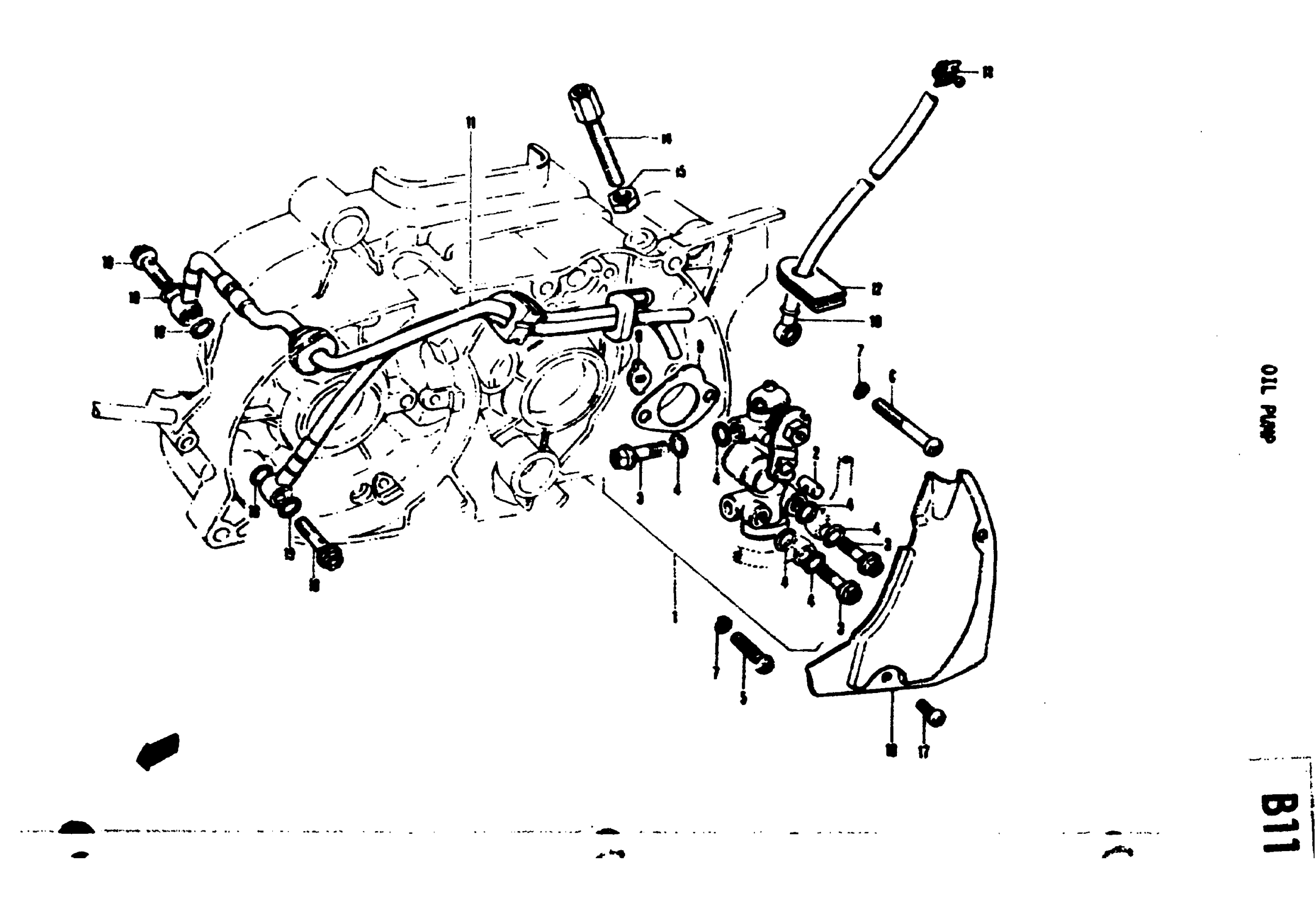

Suzuki TS50 (1974) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL | TO 16100-26820

16000-26802

Unavailable

1

PUMP ASSY, OIL | Includes Item(s) 2 - 4

16100-26820

Unavailable

2

TERMINAL, CABLE This part replaces 16292-03110.

16292-03112

$5.05

3

UNION BOLT | TO 09360-06003

16760-19001

Unavailable

3

UNION BOLT | 6x16

09360-06003

$3.76

4

GASKET | 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

$1.49

5

SCREW This part replaces 02112-05168.

02112-05167

$1.97

6

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

9

PIECE, DRIVE This part replaces 16391-05030.

16391-05031

$3.65

10

HOSE, OIL (L:512!97) This part replaces 16810-05031.

16810-07520

Unavailable

11

HOSE, OIL OUTLET

16820-26030

Unavailable

12

GROMMET This part replaces 09309-08002.

09309-08015

$2.38

13

OIL HOSE CLAMP This part replaces 09400-10301.

09400-10302

Unavailable

14

ADJUSTER, CABLE

09119-08014

$3.55

15

NUT This part replaces 08312-11088.

08310-00087

$2.13

16

CAP, OIL PUMP INSPECTION

11385-26000

Unavailable

17

SCREW This part replaces 02112-06108.

02112-06107

$1.49

18

UNION BOLT | 6x16

09360-06003

$3.76

19

GASKET | 5x11.8x1.5 This part replaces 09168-06002.

09168-06004

$1.49
