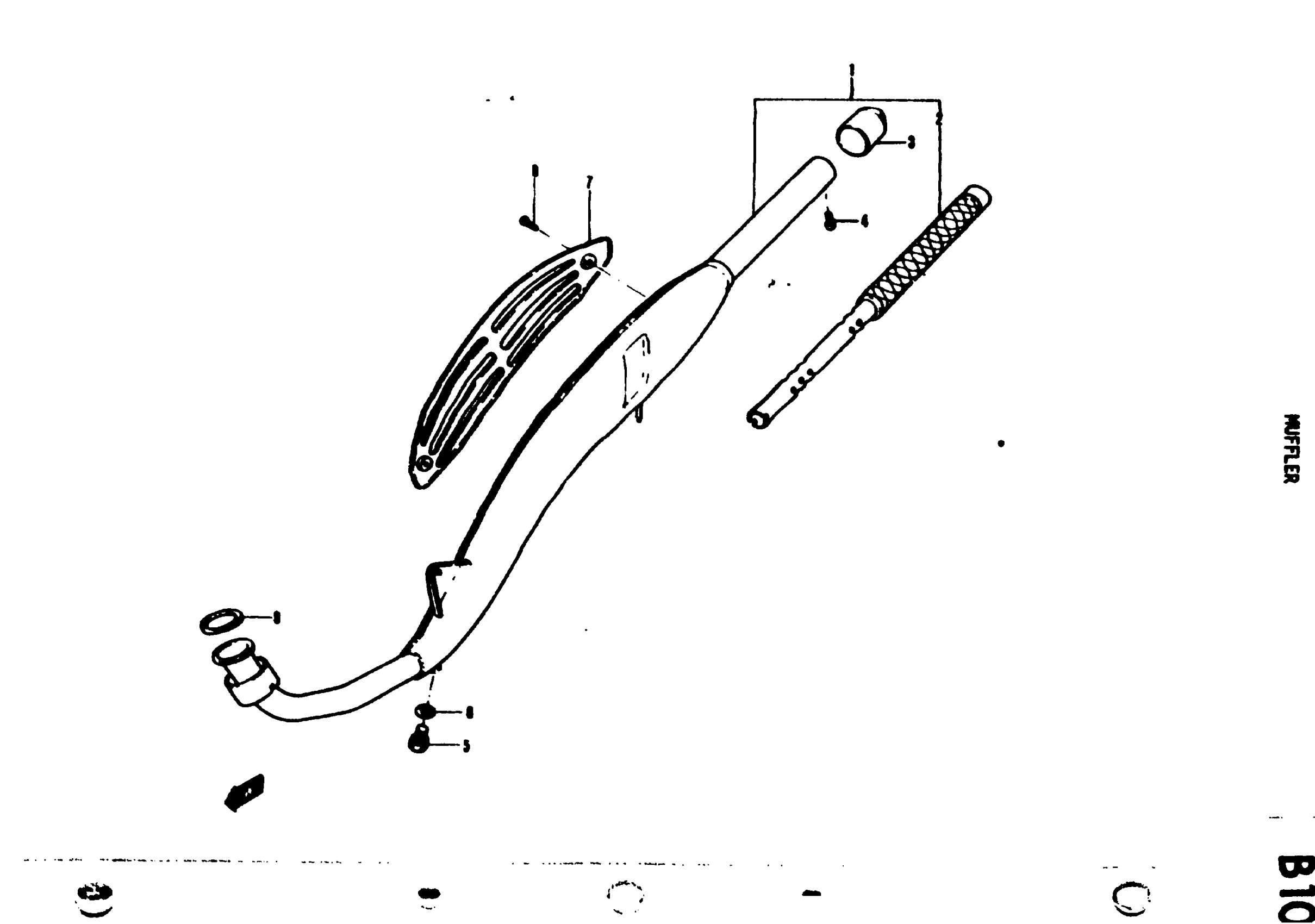

Suzuki TS50 (1974) MUFFLER Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 14301-26000.

14301-26000-H01

Unavailable

2

PIPE, BAFFLE | TO 14510-36100 This part replaces 14510-26000.

14510-36100

Unavailable

2

PIPE, BAFFLE

14510-36100

Unavailable

3

CUTTER, MUFFLER

14530-26000

Unavailable

4

SCREW This part replaces 02111-05087.

02112-05087

$1.49

5

BOLT(10X9) | 10x9 This part replaces 09100-10004.

09128-10002

$1.70

6

GASKET, DRAIN PLUG | 10x14.2x2

09168-10002

$2.13

7

COVER, MUFFLER

14781-26000

Unavailable

8

SCREW This part replaces 02112-06068.

02112-06067

$1.93

9

.GASKET,EXHAUST This part replaces 14181-05010.

14181-18C00

$7.22
