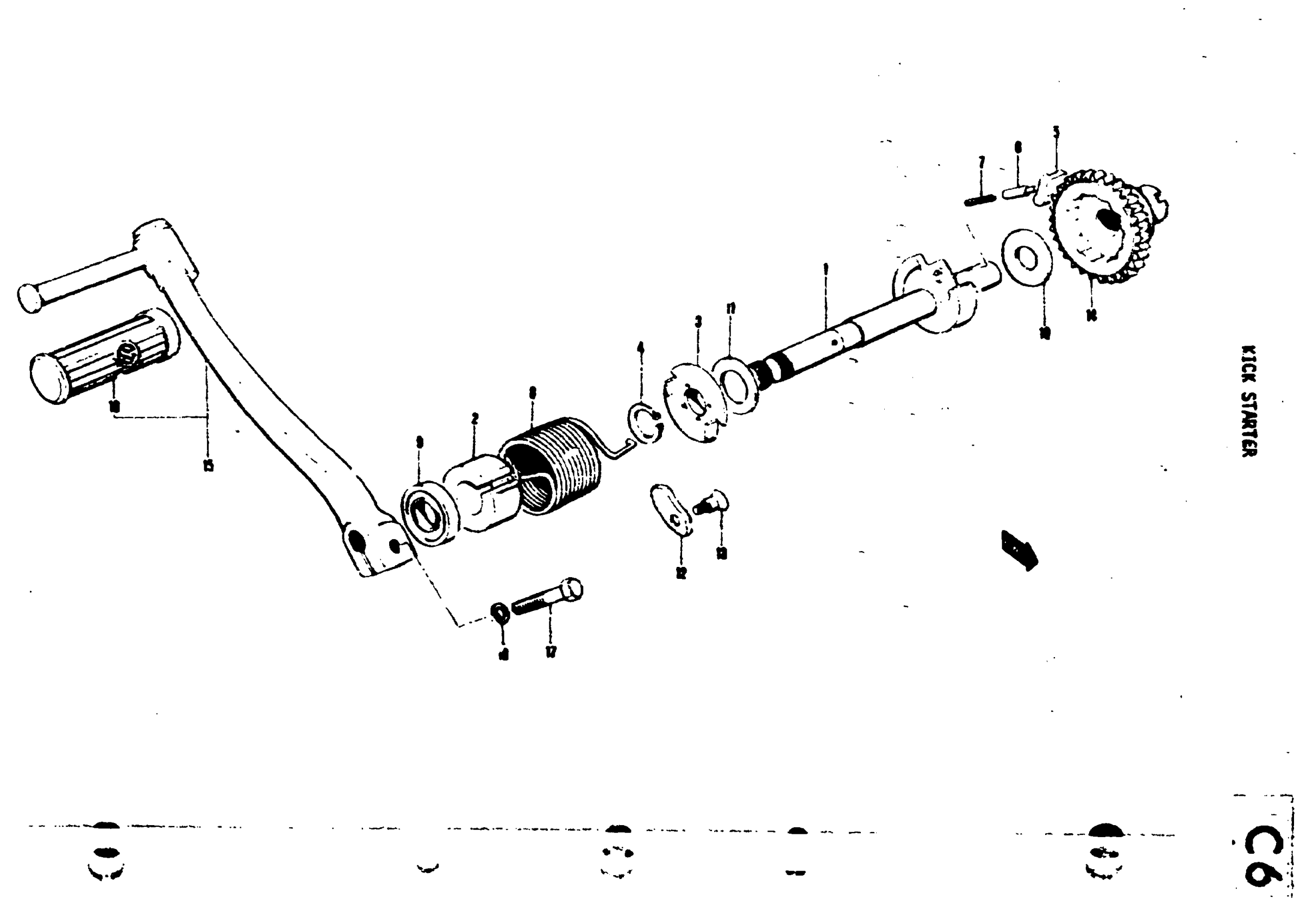

Suzuki TS50 (1974) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-05000

Unavailable

2

GUIDE, RETURN SPRING

26221-01030

Unavailable

3

HOLDER, RETURN SPRING

26222-01001

Unavailable

4

CIRCLIP, SHIFT SHAFT This part replaces 08331-11149.

08331-3114A

$1.91

5

PAWL, KICK STARTER

26231-01000

Unavailable

6

ROLLER | 00:5, L:8

09209-05012

Unavailable

7

SPRING | 3.4x4.5x12.4

09440-04010

$1.54

8

SPRING

09448-38002

Unavailable

9

OIL SEAL (14X24X6) | 14x24x6 This part replaces 09285-14001.

09285-14002

$16.88

10

THRUST WASHER | 12x30x1.5

08211-12302

$2.16

11

WASHER (14X29X1.5) | 14x29x1.5 This part replaces 09160-14005.

09160-14046-XC0

$4.83

12

STOPPER

26232-01000

$6.38

13

SCREW

09139-06002

$2.38

14

NO DESCRIPTION AVAILABLE This part replaces 26241-05100.

26241-05101

Unavailable

15

LEVER ASSY, KICK STARTER | Includes Item(s) 16

26300-07002

Unavailable

16

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

17

BOLT This part replaces 01112-06258.

01500-06257

$1.97

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
