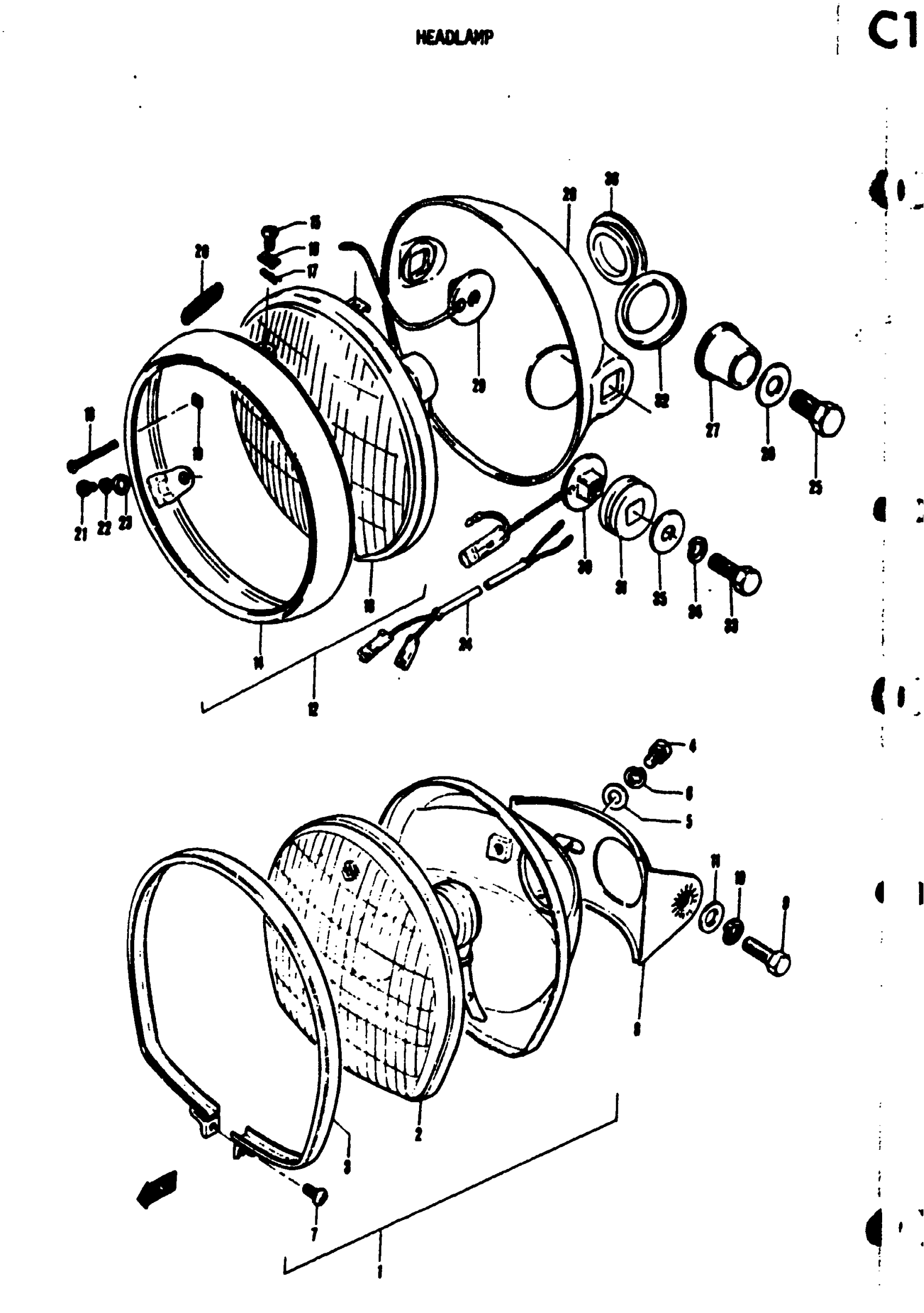

Suzuki TS50 (1974) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | TS50R,TS50J; 6V, 15/15W; Includes Item(s) 2 - 8

35100-22610

Unavailable

2

UNIT, HEADLAMP | TS50R,TS50J

35121-22610

Unavailable

3

RING, RETAINER | TS50R,TS50J

35127-22610

Unavailable

4

BOLT | TS50R,TS50J This part replaces 01112-06108.

01500-06107

$2.06

5

.WASHER | TS50R,TS50J This part replaces 08322-11068.

08322-0106B

$2.26

6

LOCK WASHER | TS50R,TS50J This part replaces 08321-21068.

08321-01067

$2.13

7

SCREW | TS50R,TS50J This part replaces 02111-04107.

02112-04107

$1.55

8

BRACKET, HEADLAMP | TS50R,TS50J

35151-22610

Unavailable

9

BOLT | TS50R,TS50J This part replaces 01122-10208.

01500-1020B

$3.16

10

LOCK WASHER | TS50R,TS50J This part replaces 08321-21108.

08321-01107

$1.84

11

WASHER | TS50R,TS50J This part replaces 08322-21108.

08322-01107

$2.15

12

HEADLAMP ASSY | TS50K,TS50L; Includes Item(s) 13 - 20

35100-27620

Unavailable

13

UNIT | TS50K,TS50L 6V, 15/15W

35121-27620

Unavailable

14

RIM | TS50K; TO 35111-28610

35111-27620

Unavailable

14

RIM | TS50L

35111-28610

Unavailable

15

SCREW | TS50K,TS50L

35136-19610

Unavailable

16

NUT | TS50K,TS50L This part replaces 35135-12610.

35155-48510

$2.28

17

SPRING | TS50K,TS50L

35137-27620

Unavailable

18

SCREW | TS50K,TS50L This part replaces 35151-27620.

35151-06020

Unavailable

19

NUT | TS50K,TS50L

35155-01321

Unavailable

20

SPRING | TS50K,TS50L

35154-12610

Unavailable

21

SCREW | TS50K,TS50L This part replaces 02211-04128.

02112-0412A

$1.49

22

LOCK WASHER | TS50K,TS50L This part replaces 08321-21048.

08321-0104A

$1.84

23

WASHER | TS50K,TS50L This part replaces 08322-21048.

08322-01047

$1.86

24

READ WIRE | TS50

36852-26000

Unavailable

25

BOLT 10X16 | TS50K,TS50L This part replaces 01221-10167.

01204-10167

$3.20

26

WASHER | TS50K,TS50L This part replaces 08322-21108.

08322-01107

$2.15

27

COVER, BOSS | TS50K,TS50L

35698-26000

Unavailable

28

HOUSING, HEADLAMP | TS50K

51810-26600

Unavailable

28

NO DESCRIPTION AVAILABLE | TS50J This part replaces 51810-26000-126.

51810-26000-13L

Unavailable

29

SPACER, RH | TS50K; TO 5:821-27301 NOTE 1

51821-27300

Unavailable

29

SPACER, RH | TS50K; NOTE 1

51821-27301

Unavailable

30

SPACER, LH | TS540K; TO 51821-27301 NOTE 1

51822-27300

Unavailable

30

SPACER, LH | TS50J; NOTE 1

51822-27301

Unavailable

31

CUSHION, HOUSING | TS50K; TO 51827-27301 NOTE 1

51827-27300

Unavailable

31

CUSHION,HEADLAM | TD50J; NOTE 1 This part replaces 51827-27301.

51827-27303

$3.66

32

GROMMET | TS50TS50

51845-31030

Unavailable

33

BOLT | TS50K,TS50L This part replaces 01221-08207.

01204-08207

$2.30

34

.LOCK WASHER | TS50K,TS50L This part replaces 08321-21088.

08321-01087

$2.13

35

WASHER | TS50K,TS50L This part replaces 08322-11088.

08322-01087

$2.13

36

CAP, HEADLAMP HOUSING | TS50K

09250-40001

Unavailable
