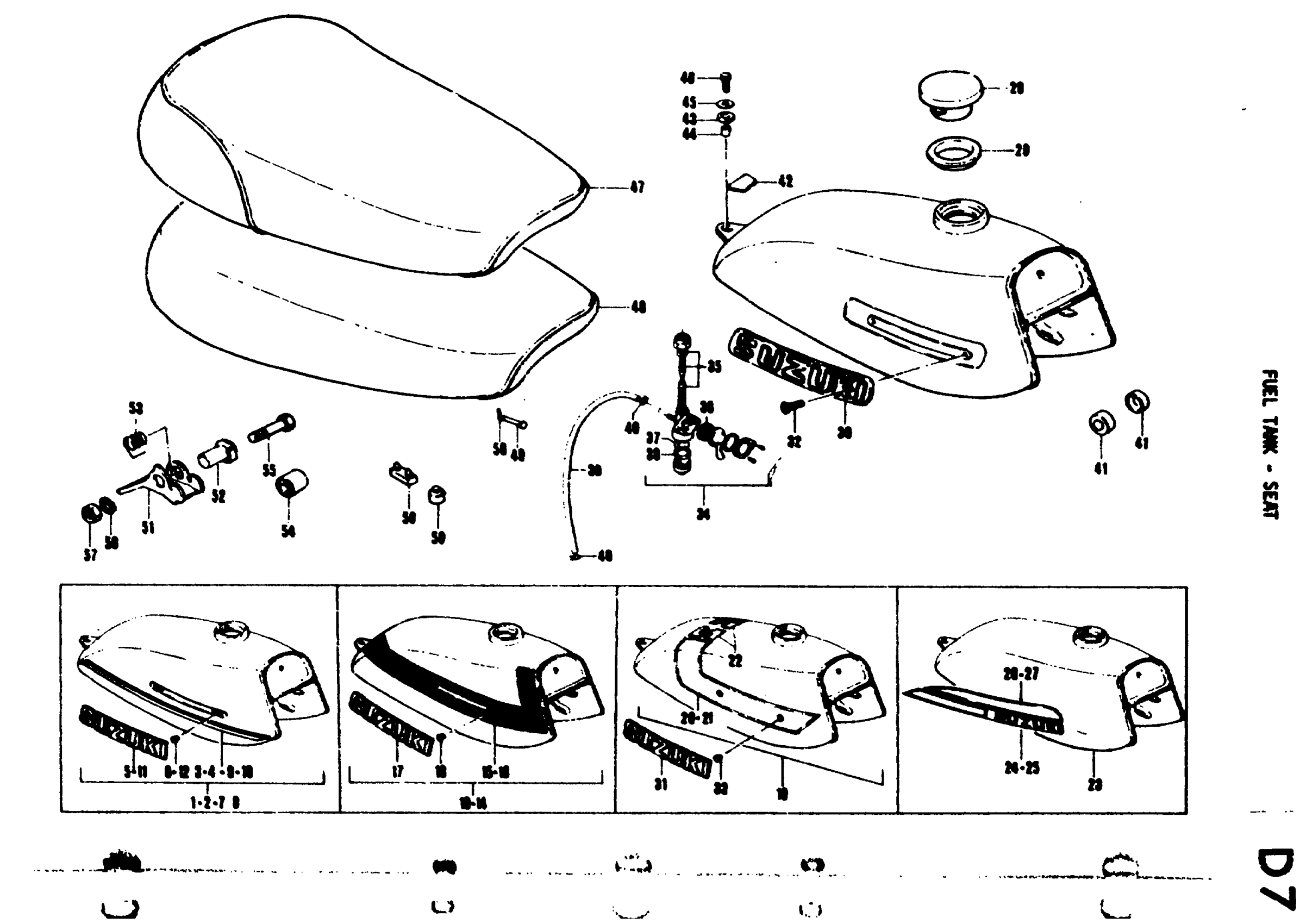

Suzuki TS50 (1974) FUEL TANK - SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | TS50R; TO 44100-26830-571 This part replaces 44110-26000-571.

44110-26650-13L

Unavailable

2

TANK SET, FUEL | TS50R; Includes Item(s) 3 - 6

44110-26830-571

Unavailable

3

TAPE, STRIPING RH | TS50R

68115-26000-019

Unavailable

4

TAPE, STRIPING LH | TS50R

68125-26000-019

Unavailable

5

NO DESCRIPTION AVAILABLE | TS50R This part replaces 68111-26600.

68111-27610-019

Unavailable

6

NUT | TS50R

09148-04005

Unavailable

7

NO DESCRIPTION AVAILABLE | TS50R; TO 44100-26830-565 This part replaces 44110-26000-565.

44110-26650-13L

Unavailable

8

TANK SET, FUEL | TS50R; Includes Item(s) 9 - 12

44100-26830-565

Unavailable

9

NO DESCRIPTION AVAILABLE | TS50R This part replaces 68115-26000-189.

68100-26820-189

Unavailable

10

TAPE, STRIPING LH | TS50R

68125-26000-189

Unavailable

11

NO DESCRIPTION AVAILABLE | TS50R This part replaces 68111-26600.

68111-27610-019

Unavailable

12

NUT | TS50R

09148-04005

Unavailable

13

TANK, FUEL | TS50J; TO 44100-26840-184

44110-26817-184

Unavailable

14

TANK SET, FUEL | TS50J; Includes Item(s) 15 - 18

44100-26840-184

Unavailable

15

TAPE, STRIPING RH | TS50J

68115-26600-064

Unavailable

16

TAPE, STRIPING LH | TS50J

68125-26600-064

Unavailable

17

NO DESCRIPTION AVAILABLE | TS50J This part replaces 68111-26600.

68111-27610-019

Unavailable

18

NUT | TS50J

09148-04005

Unavailable

19

TANK SET, FUEL | TS50K; Includes Item(s) 20 - 22

44110-26815-711

Unavailable

20

TAPE, STRIPING RH | TS50K

68115-26610-718

Unavailable

21

TAPE, STRIPING LH | TS50K

68125-26610-718

Unavailable

22

EMBLEM, CENTER | TS50K

68118-30000-718

Unavailable

23

NO DESCRIPTION AVAILABLE | TS50L; Includes Item(s) 24 - 27 This part replaces 44110-26200-712.

44110-26650-13L

Unavailable

24

EMBLEM, FUEL TANK RH | TS50L

68111-26200-742

Unavailable

25

EMBLEM, FUEL TANK LH | TS50L

68121-26200-742

Unavailable

26

NO DESCRIPTION AVAILABLE | TS50L This part replaces 68115-26200-719.

68100-26840-719

Unavailable

27

TAPE, STRIPING LH | TS50L

68125-26200-719

Unavailable

28

CAP FUEL TANK | TS50R,TS50J,TS50L This part replaces 44210-12000.

44200-23810

$49.39

28

CAP FUEL TANK | TS50L This part replaces 44210-26200.

44200-23810

$49.39

29

GASKET, CAP

44248-12000

Unavailable

30

EMBLEM, FUEL TANK | TS50R,TS50J

68111-25200

Unavailable

31

EMBLEM, FUEL TANK | TS50K

60111-26600

Unavailable

32

SCREW | TS50R,TS50J This part replaces 02131-03067.

02122-03067

$1.80

33

NUT, EMBLEM | TS50K

09148-04005

Unavailable

34

COCK ASSY FUEL | Includes Item(s) 35 - 38 This part replaces 44300-05110.

44300-05115

Unavailable

35

FILTER SET, FUEL

44300-01882

Unavailable

36

GASKET, LEVER

44341-05110

Unavailable

37

NET, STRAINER

44344-05110

Unavailable

38

GASKET, CUP

44346-05110

Unavailable

39

HOSE This part replaces 09343-05016.

09352-50005-00B

$13.93

40

CLIP, FUEL HOSE

09401-08401

$1.54

41

CUSHION, FRONT

09329-10005

$2.11

42

CUSHION, REAR

09321-05007

Unavailable

43

CUSHION, REAR

09320-12009

$2.93

44

SPACER | 8.8x12x13.5

09180-08058

Unavailable

45

WASHER | 8.5x29x1.6

09160-08006

Unavailable

46

BOLT This part replaces 01122-08308.

01500-08307

$3.04

47

NO DESCRIPTION AVAILABLE | TS50R,TS50J,TS50K This part replaces 45100-26001-403.

45100-26002-865

Unavailable

48

NO DESCRIPTION AVAILABLE | TS50R This part replaces 45100-26002-403.

45100-26002-865

Unavailable

49

PIN, SEAT SUPPORT

09200-06018

$2.06

50

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

51

CLAMP, SEAT

45211-26001

Unavailable

52

BOSS, SEAT CLAMP

45210-26001

Unavailable

53

SPRING

09448-17007

Unavailable

54

BUSHING | TS50R,TS50J,TS50K

09319-08007

Unavailable

55

BOLT This part replaces 01122-08458.

01500-08453

$2.50

56

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

57

NUT This part replaces 08312-11088.

08310-00087

$2.13

58

CUSHION, SEAT A

09321-08006

$2.90

59

CUSHION, SEAT B

09321-10001

$2.61
