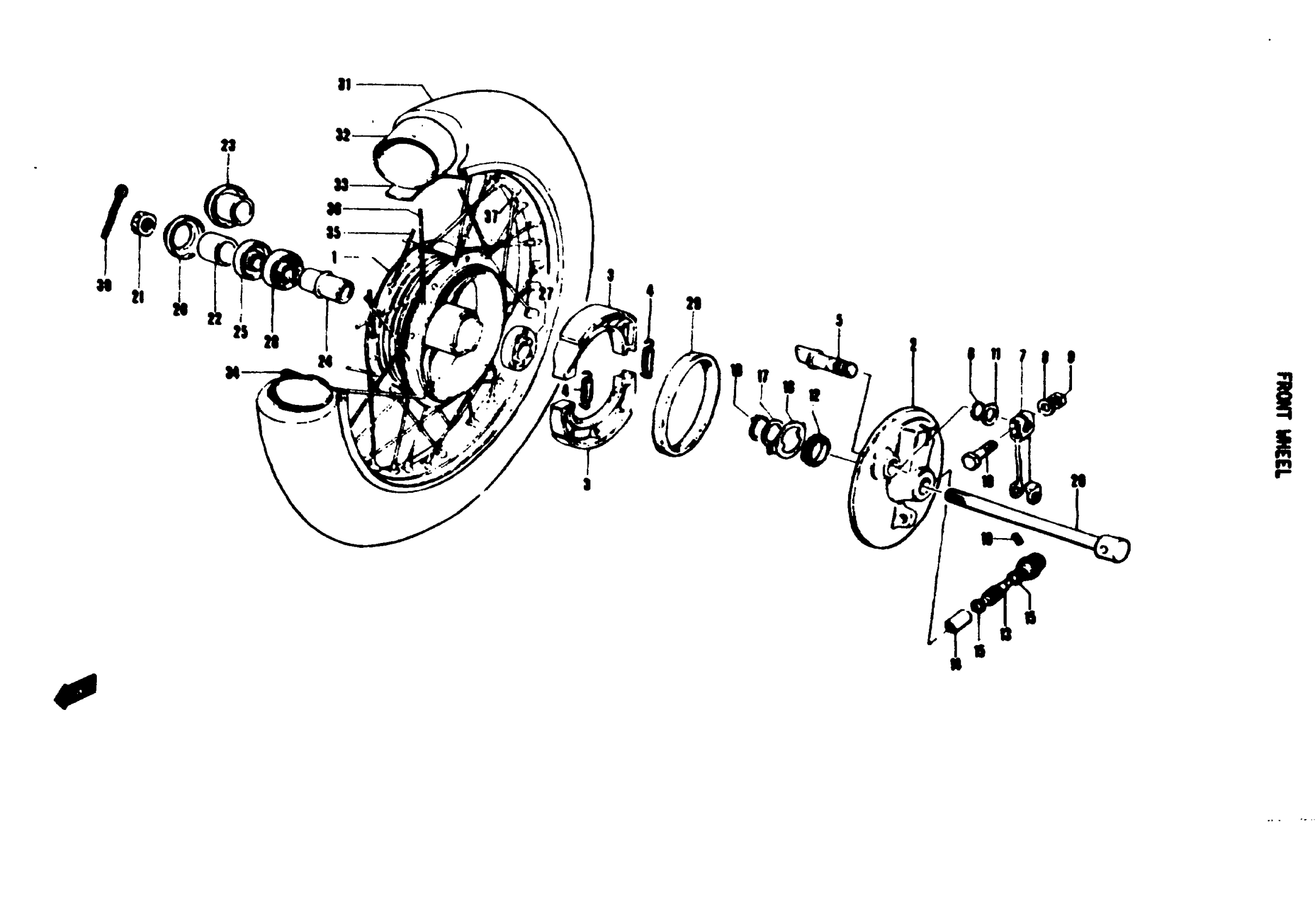

Suzuki TS50 (1974) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, FRONT HUB

54110-01004

Unavailable

2

PANEL, FRONT HUB | TS50R,TS50J,TS50K This part replaces 54210-03005.

54210-03006

Unavailable

2

PANEL, FRONT HUB | TS50L

54210-03006

Unavailable

3

SHOE/SPRING SET This part replaces 54410-01004.

54400-35860

$36.32

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

SHAFT, BRAKE CAM | TS50R,TS50K,TS50J

54441-28001

Unavailable

5

CAM, BRAKE | TS50L This part replaces 54441-01001.

54441-01002

$18.80

6

DUST SEAL | 11.4x16x2x2.4

09280-12001

$2.90

7

LEVER, BRAKE CAM | TS50R,TS50K,TS50J

54451-03602

Unavailable

7

LEVER, BRAKE CAM | TS50L

54451-03002

$16.87

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

BOLT, ADJUSTER | 6x30 This part replaces 09100-06050.

09100-06150

$2.30

11

WASHER, DUST SEAL | 12.5x20x1

09160-12011

$1.54

12

NO DESCRIPTION AVAILABLE This part replaces 54611-03000.

54611-03002

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 54621-03000.

54621-03001

Unavailable

14

BUSHING

54632-01001

$12.80

15

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

16

DRIVER, DRIVE GEAR

54661-03000

Unavailable

17

THRUST WASHER | 16x22x1

09160-16005

Unavailable

18

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

19

CIRCLIP This part replaces 08331-11159.

08331-3115A

$2.25

20

NO DESCRIPTION AVAILABLE | TS50R,TS50J,TS50K This part replaces 54711-03601.

54711-03602

Unavailable

20

AXLE, FRONT | TS50L This part replaces 54711-26100.

54711-04711

$33.12

21

NUT This part replaces 08314-11108.

08314-3110A

$1.99

22

SPACER | TS50R,TS50J,TS50K; 10x15x12.4

09180-10003

Unavailable

23

SPACER, FR AXLE RH | TS50L This part replaces 54740-26100.

54740-26101

$18.87

24

SPACER

54730-01000

Unavailable

25

OIL SEAL (15X31X5) | 15X31X9.5

09284-15001

$4.73

26

DUST SEAL | TS50R,TS50J,TS50K

54892-01000

Unavailable

27

BEARING | SEALED BEARING This part replaces 08143-63000.

08143-6300B

$15.33

28

BEARING

08113-62000

$13.63

29

OIL SEAL | 43x58x7 This part replaces 09285-43001.

09283-43004

$14.03

30

PIN This part replaces 04111-20308.

04111-2030A

$1.50

31

NO DESCRIPTION AVAILABLE | TS50L; 2.25-17 This part replaces 65100-01011.

65100-09401

Unavailable

31

TIRE | TS50L; 2.25-17

65100-26600

Unavailable

32

TUBE, INNER | TS50L 2.25-17 This part replaces 55200-01011.

55200-03600

Unavailable

32

TUBE, INNER | TS50L 2.25-17

55200-03600

Unavailable

33

PROTECTOR, INNER TUBE This part replaces 55261-01010.

55261-02B40

$6.88

34

RIM WHEEL | TS50L 1.20x17 This part replaces 55311-01020.

55311-01021

Unavailable

34

RIM, WHEEL | TS50L

55311-07020

$89.05

34

SPOKE SET FR | TS50L This part replaces 55301-01812.

55320-01012

$36.58

34

NO DESCRIPTION AVAILABLE | TS50L; Includes Item(s) 35 - 37 This part replaces 65301-01817.

65320-01010

Unavailable

35

SPOKE, INNER | TS50L D:12, L:160.5

55321-01021

Unavailable

35

SPOKE, INNER | TS50L104, H:5.8

65321-01021

Unavailable

36

SPOKE, OUTER | TS50L D:12, L:160

55322-01021

Unavailable

36

SPOKE, OUTER | TS50L; TS50:87.5, H:7.1

65322-01021

Unavailable

37

NIPPLE, SPOKE | TS50L,

55325-01020

Unavailable

37

NIPPLE, SPOKE | TS50L

65325-01020

Unavailable
