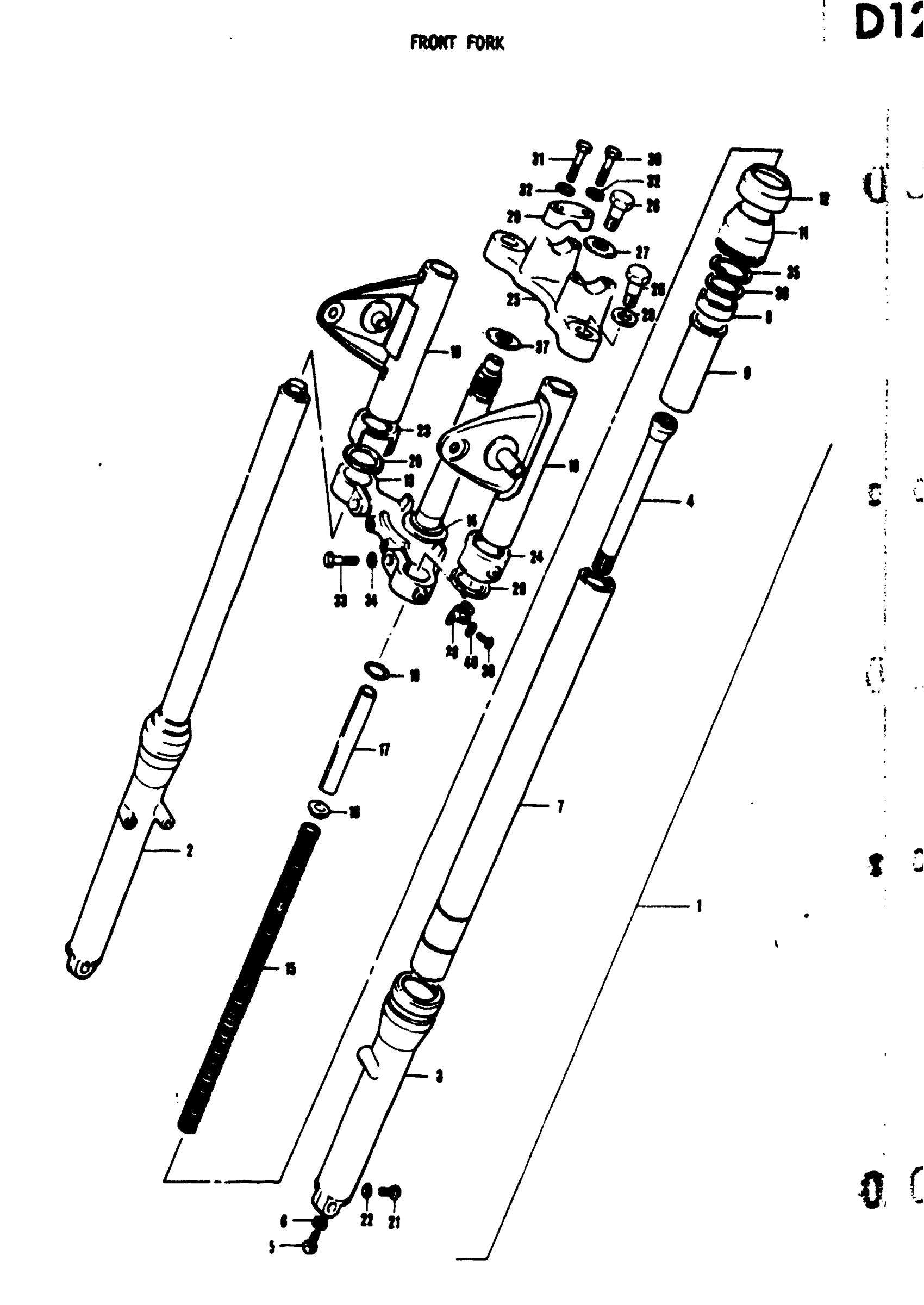

Suzuki TS50 (1974) FRONT FORK Diagram

#

Description
Price

1

FORK ASSY, FRONT | TS50L; Includes Item(s) 2 - 12

51100-26210-676

Unavailable

2

TUBE, OUTER RH | TS50L This part replaces 51131-22710.

51130-26210

Unavailable

3

TUBE, OUTER LH | TS50L This part replaces 51141-22710.

51140-26210

Unavailable

4

OIL PIPE | TS50L

51146-26210

Unavailable

5

SCREW | TS50L This part replaces 02112-06208.

02112-06207

$1.78

6

GASKET | TS50L

51148-27410

Unavailable

7

TUBE, INNER | TS50L

51110-26210

Unavailable

8

OIL SEAL,FR FOR | TS50L This part replaces 51153-27410.

51153-39140

$15.05

9

METAL, SLIDE | TS50L

51152-27410

Unavailable

10

O RING | TS50L This part replaces 51181-22010.

51181-22012

$3.73

11

DUST SEAL | TS50L

51173-26210

Unavailable

12

COVER | TS50L

51572-26210

Unavailable

13

STEM, STEERING | TS50L; Includes Item(s) 14 - 40

51410-26210

Unavailable

14

RACE, OUTER LOWER | TS50L

51621-33001

$16.25

15

SPRING | TS50L

51171-26210

Unavailable

16

GUIDE, SPRING UPPER | TS50L

51172-26210

Unavailable

17

SPACER | TS50L

51176-26210

Unavailable

18

NO DESCRIPTION AVAILABLE | TS50L This part replaces 51530-26210-126.

51500-26830-126

Unavailable

19

NO DESCRIPTION AVAILABLE | TS50L This part replaces 51540-26210-126.

51500-26830-126

Unavailable

20

CUSHION | TS50L

51553-26610

Unavailable

21

SCREW | TS50L This part replaces 02111-04087.

02112-04087

$1.49

22

GASKET | TS50L

51183-03010

$2.07

23

COVER, STEM RH | TS50L

51554-26010

Unavailable

24

COVER, STEM LH | TS50L

51557-26010

Unavailable

25

HEAD, STEERING HEAD | TS50L

51311-26010-019

Unavailable

26

BOLT | TS50L This part replaces 51351-20010.

51351-29400

$31.22

27

WASHER, STEERING | TS50L

51356-22011

Unavailable

28

WASHER, INNER TUBE | TS50L; TO 51356-22011

51356-07011

Unavailable

29

HOLDER, HANDLEBAR | TS50L

56211-27110-019

Unavailable

30

BOLT | TS50L This part replaces 01221-08357.

01204-08357

$2.09

31

BOLT, FRONT | TS50L; L:75

51323-26210

Unavailable

32

.LOCK WASHER | TS50L This part replaces 08321-21088.

08321-01087

$2.13

33

BOLT | TS50L; L:32

51451-08410

Unavailable

34

LOCK WASHER | TS50L This part replaces 08321-21108.

08321-01107

$1.84

35

CIRCLIP | TS50L This part replaces 08331-41409.

08331-41406

$2.10

36

WASHER, OUTER TUBE | TS50L

51158-27410

Unavailable

37

WASHER, STEERING UPPER | TS50L

51357-22010

Unavailable

38

CLIP | TS50L

51453-05110

Unavailable

39

SCREW | TS50L This part replaces 02112-06108.

02112-06107

$1.49

40

LOCK WASHER | TS50L This part replaces 08321-21068.

08321-01067

$2.13
