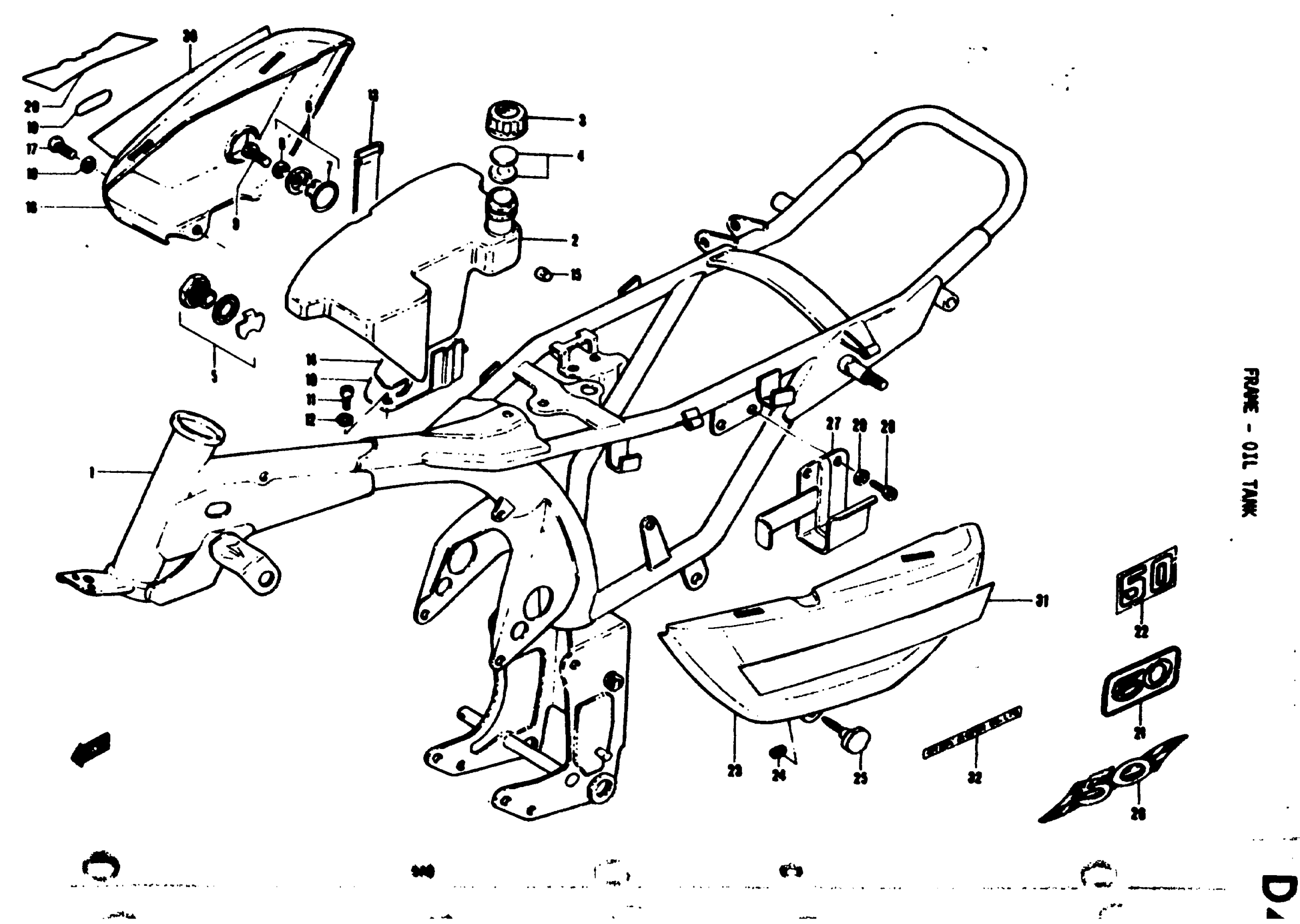

Suzuki TS50 (1974) FRAME - OIL TANK Diagram

#

Description
Price

1

FRAME

41100-26001-019

Unavailable

2

TANK, OIL

44611-26001

Unavailable

3

CAP, OIL TANK This part replaces 44651-05000.

44651-05003

$5.05

4

GASKET SET This part replaces 44660-33808.

44600-30833

$5.42

5

OIL LEVEL INSPE | TS50R,TS50J,TS50K; TO 44600-31830 This part replaces 44640-31807.

44600-31832

$11.07

5

OIL LEVEL INSPE | TS50R This part replaces 44600-31830.

44600-31832

$11.07

6

LENS SET, OIL INSPECTION | TS50R; Includes Item(s) 7 - 8

44640-11844

Unavailable

7

O RING, INSPECTION LENS | TS50R

09280-23001

Unavailable

8

GASKET, INSPECTION LENS | TS50R

09168-05001

$1.98

9

SCREW | TS50R This part replaces 02112-05168.

02112-05167

$1.97

10

HOLDER, OIL TANK This part replaces 44820-26000.

44820-26001

Unavailable

11

SCREW

03311-05128

Unavailable

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

BAND, OIL TANK

09462-00040

$5.76

14

CUSHION, OIL TANK

44831-25000

Unavailable

15

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

16

COVER, FRAME RH | TS50R

47111-26000-184

Unavailable

16

COVER, FRAME RH | TS50R

47111-26000-176

Unavailable

16

COVER, FRAME RH | TS50R

47111-26000-185

Unavailable

16

COVER, FRAME RH | TS50R

47111-26000-711

Unavailable

16

COVER, FRAME RH | TS50R

47111-26000-712

Unavailable

17

SCREW This part replaces 02112-06168.

02112-06167

$1.49

18

WASHER, FRAME COVER LOWER | 6.5x16x1.2

09160-06019

$1.49

19

EMBLEM

68171-26000

$3.59

20

EMBLEM, FRAME COVER RH | TS50R,TS50J

68141-26000

Unavailable

21

EMBLEM, FRAME COVER | TS50K

68141-26600

Unavailable

22

EMBLEM, 50 | TS50L

68131-26200-719

Unavailable

23

NO DESCRIPTION AVAILABLE | TS50J This part replaces 47211-26000-184.

47211-26000-019

Unavailable

23

NO DESCRIPTION AVAILABLE | TS50R This part replaces 47211-26000-176.

47211-26000-019

Unavailable

23

NO DESCRIPTION AVAILABLE | TS50R This part replaces 47211-26000-185.

47211-26000-019

Unavailable

23

NO DESCRIPTION AVAILABLE | TS50K This part replaces 47211-26000-711.

47211-26000-019

Unavailable

23

NO DESCRIPTION AVAILABLE | TS50L This part replaces 47211-26000-712.

47211-26000-019

Unavailable

24

STOP, FRAME COVER KNOB

09152-05101

Unavailable

25

KNOB, FRAME COVER

47130-04000

Unavailable

26

EMBLEM, FRAME COVER LH | TS50R,TS50J

68141-26000

Unavailable

27

HOLDER, TOOL

41550-26000

Unavailable

28

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

29

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

30

TAPE, FRAME COVER STRIPING RH | TS50J

68136-26000-064

Unavailable

31

TAPE, FRAME COVER STRIPING LH | TS50J

68146-26000-064

Unavailable

32

LABEL, COMPANY NAME | TS50J

68363-26200

Unavailable
