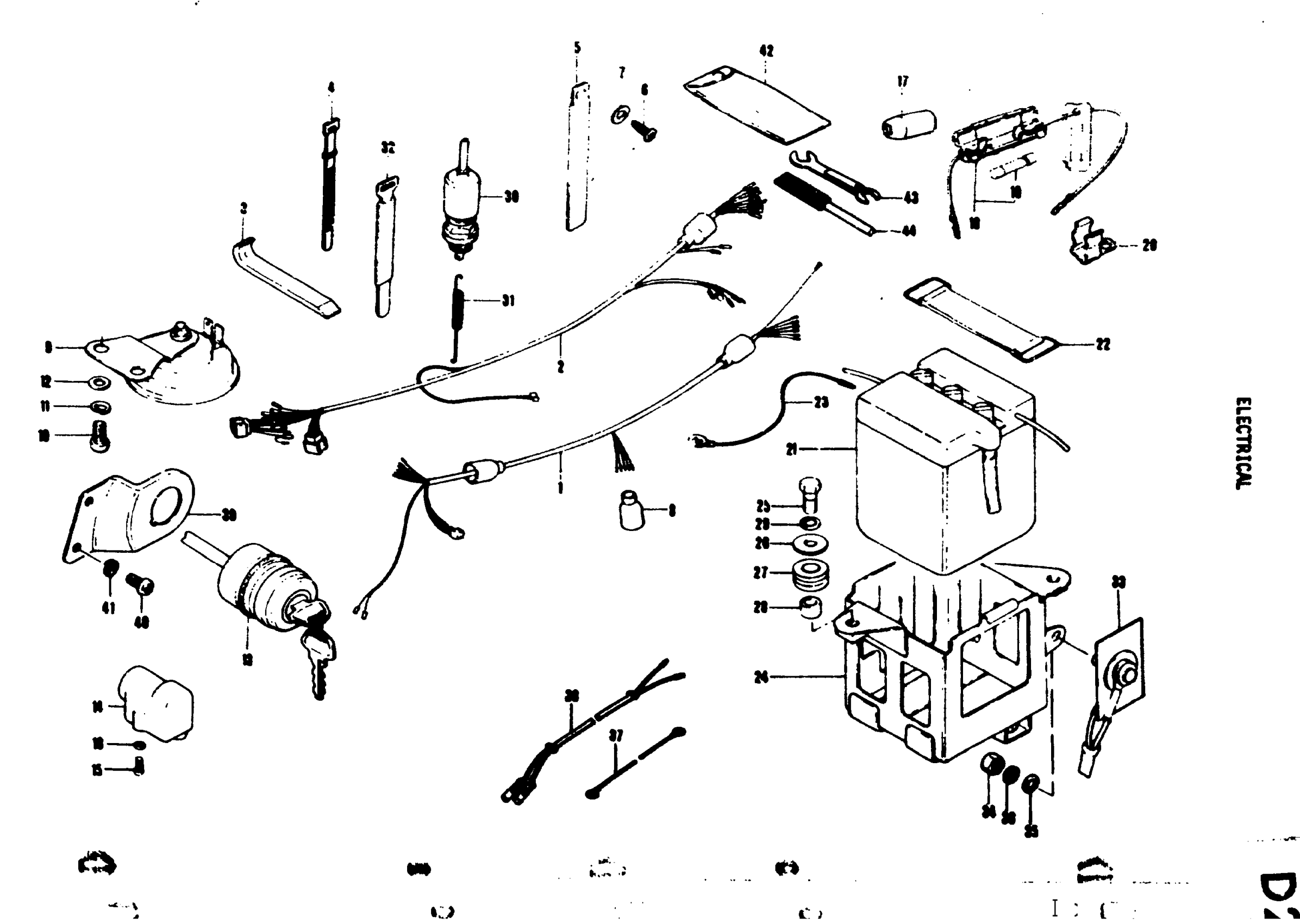

Suzuki TS50 (1974) ELECTRICAL Diagram

#

Description
Price

1

WIRING HARNESS | TS50R,TS50J,TS50L

36610-26601

Unavailable

2

WIRING HARNESS | TS50L

36610-26200

Unavailable

3

BAND, WIRING HARNESS

33881-22200

Unavailable

4

CLAMP | TS50K; L:110 This part replaces 09407-11302.

09407-18302

$2.28

4

CLAMP | TS50L; L:110 This part replaces 09407-11301.

09407-18302

$2.28

5

CLAMP

09403-00058

Unavailable

6

SCREW | TS50K,TS50L

03311-05088

Unavailable

7

WASHER | TS50K,TS50L This part replaces 08322-21058.

08322-01057

$2.13

8

BOOT | TS50K,TS50L This part replaces 36618-28000.

36618-30000

$9.00

9

HORN | TS50R,TS50J; TO 38500-22032

38500-25032

Unavailable

9

HORN | TS50K,TS50L

38500-22032

Unavailable

10

SCREW This part replaces 02111-06087.

02112-06087

$1.49

11

LOCK WASHER | TS50R,TS50J This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER | TS50R,TS50J This part replaces 08322-21068.

08322-01067

$2.13

13

SW ASSY IGNITIO | TS50R,TS50J,TS50K This part replaces 37110-26612.

37110-26616

Unavailable

13

SW ASSY IGNITIO | TS50R This part replaces 37110-26610.

37110-26616

Unavailable

13

SW ASSY IGNITIO | TS50L This part replaces 37110-27110.

37110-27115

$103.83

14

LOCK ASSY, STEERING | ~F.NO.19166 This part replaces 50000-25837.

51910-25311

$40.33

15

SCREW This part replaces 02111-05127.

02112-05127

$1.97

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

17

BOOT, FUSE LEAD WIRE | TS50K,TS50L

09287-10001

Unavailable

18

FUSE CASE ASSY | Includes Item(s) 19 This part replaces 36740-15010.

36740-15011

$9.38

19

FUSE | 15A

09481-15001

$2.06

20

HOLDER, FUSE CASE | TS50K,TS50L

36791-25001

Unavailable

21

BATTERY ASSY | 6V, 4AH

33610-03010

Unavailable

22

BAND, BATTERY

09462-00001

$4.56

23

LEAD WIRE, BATTERY (-) | TS50L

36862-27690

$5.20

24

HOLDER, BATTERY This part replaces 41540-26002.

41540-26003

Unavailable

25

BOLT This part replaces 01112-06208.

01500-06207

$2.28

26

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

27

CUSHION (8.5X20X8) | 6.5x20x1.2 This part replaces 09320-08007.

09320-08510

$1.97

28

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

29

LOCK WASHER | 7x9x7 This part replaces 08321-21068.

08321-01067

$2.13

30

SWITCH ASSY, BRAKE LAMP

37740-20010

$24.43

31

SPRING

09443-06019

$3.42

32

CLAMP | L:90 This part replaces 09407-09301.

09407-09303

$1.93

33

DIODE This part replaces 32800-01020.

32800-16A00

$23.07

34

NUT This part replaces 08311-11058.

08310-00057

$1.84

35

WASHER | TS50R,TS50J This part replaces 08322-21058.

08322-01057

$2.13

36

LOCK WASHER | TS50R This part replaces 08321-21058.

08321-0105A

$1.84

37

LEAD WIRE, ENGINE (-) | OPTOPT This part replaces 36852-26600.

36851-02331

Unavailable

38

LEAD WIRE | TS50K

36853-26000

Unavailable

39

BRACKET, IGNITION SWITCH | TS50K

37115-26001

Unavailable

40

SCREW | TS50K

02111-05107

Unavailable

41

LOCK WASHER | TS50K This part replaces 08321-21058.

08321-0105A

$1.84

42

TOOL ASSY This part replaces 09800-00108.

09800-21028

$33.02

43

WRENCH, POINT | TS50R,TS50J,TS50K; OPT

09930-20111

Unavailable

44

FILE, POINT | TS50R,TS50J,TS50K; OPT

09818-00001

Unavailable
