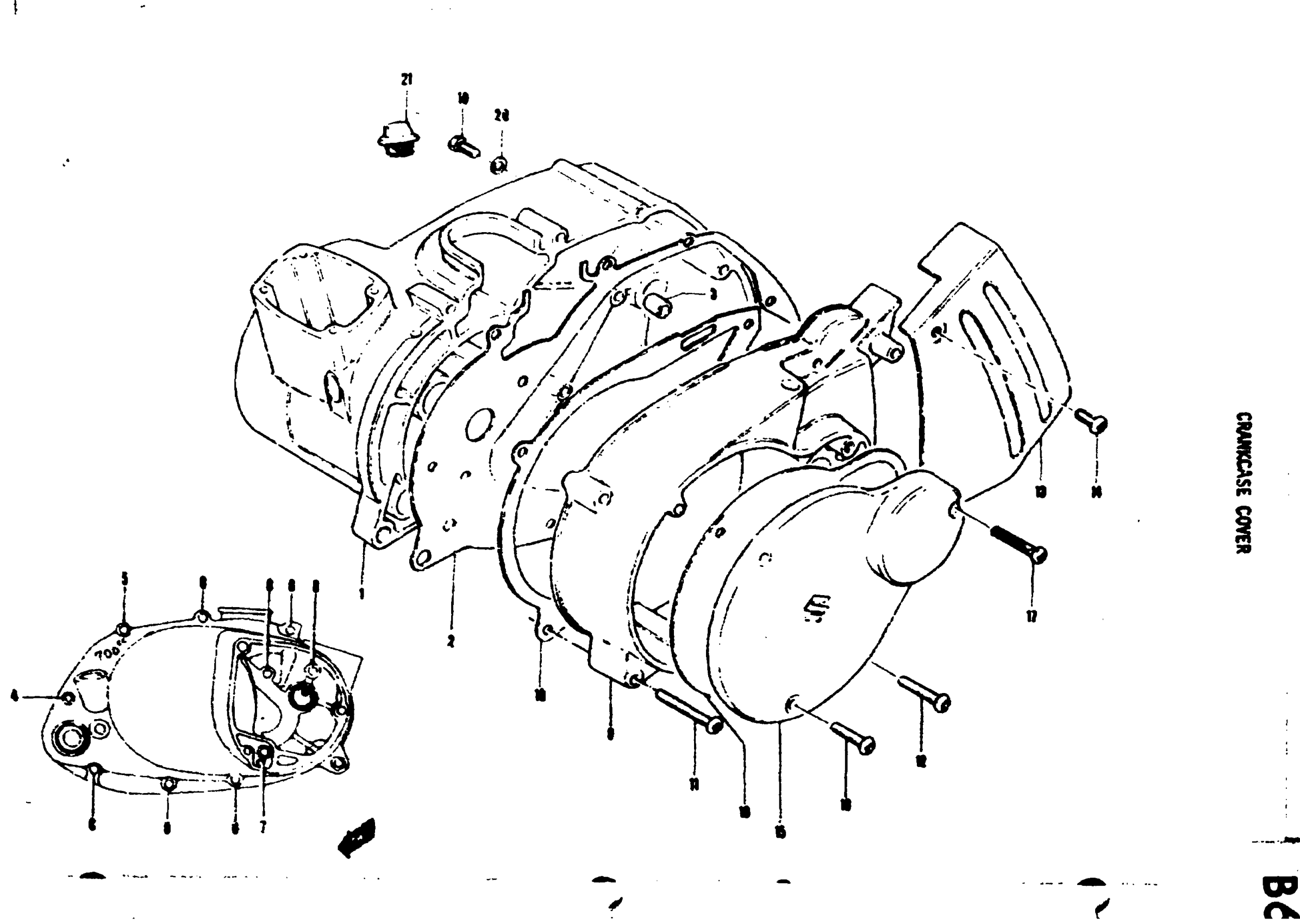

Suzuki TS50 (1974) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE RH | WITHOUT LUSTER

11340-26000

Unavailable

1

NO DESCRIPTION AVAILABLE | LUSTROUS This part replaces 11340-26001.

11340-26003

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-05000.

11482-05010

Unavailable

3

DOWEL PIN

04211-09129

$1.65

4

SCREW This part replaces 02112-06708.

02112-06707

$2.53

5

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

6

SCREW This part replaces 02112-06358.

02112-06357

$1.78

7

NO DESCRIPTION AVAILABLE This part replaces 02112-05808.

02112-05803

Unavailable

8

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

9

COVER, CRANKCASE LH | WITHOUT LUSTER This part replaces 11351-26000.

11351-26001

Unavailable

9

COVER, CRANKCASE LH | LUSTROUS

11351-26001

Unavailable

10

GASKET

11483-26000

Unavailable

11

SCREW This part replaces 02112-06358.

02112-06357

$1.78

12

SCREW This part replaces 02112-06258.

02112-06257

$1.78

13

COVER, ENGINE SPROCKET | WITHOUT LUSTER This part replaces 11361-26000.

11361-26001

Unavailable

13

COVER, ENGINE SPROCKET | LUSTROUS

11361-26001

Unavailable

14

SCREW

02111-05107

Unavailable

15

CAP, MAGNETO INSPECTION | WITHOUT LUSTER

11381-26000

Unavailable

15

CAP, MAGNETO INSPECTION | LUSTROUS

11381-26001

Unavailable

16

GASKET

11491-26000

Unavailable

17

SCREW This part replaces 02111-05207.

02112-05207

$1.97

18

SCREW This part replaces 02112-05168.

02112-05167

$1.97

19

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

20

GASKET, OIL LEVEL PLUG | 6.2x11x1

09168-06001

$1.49

21

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02
