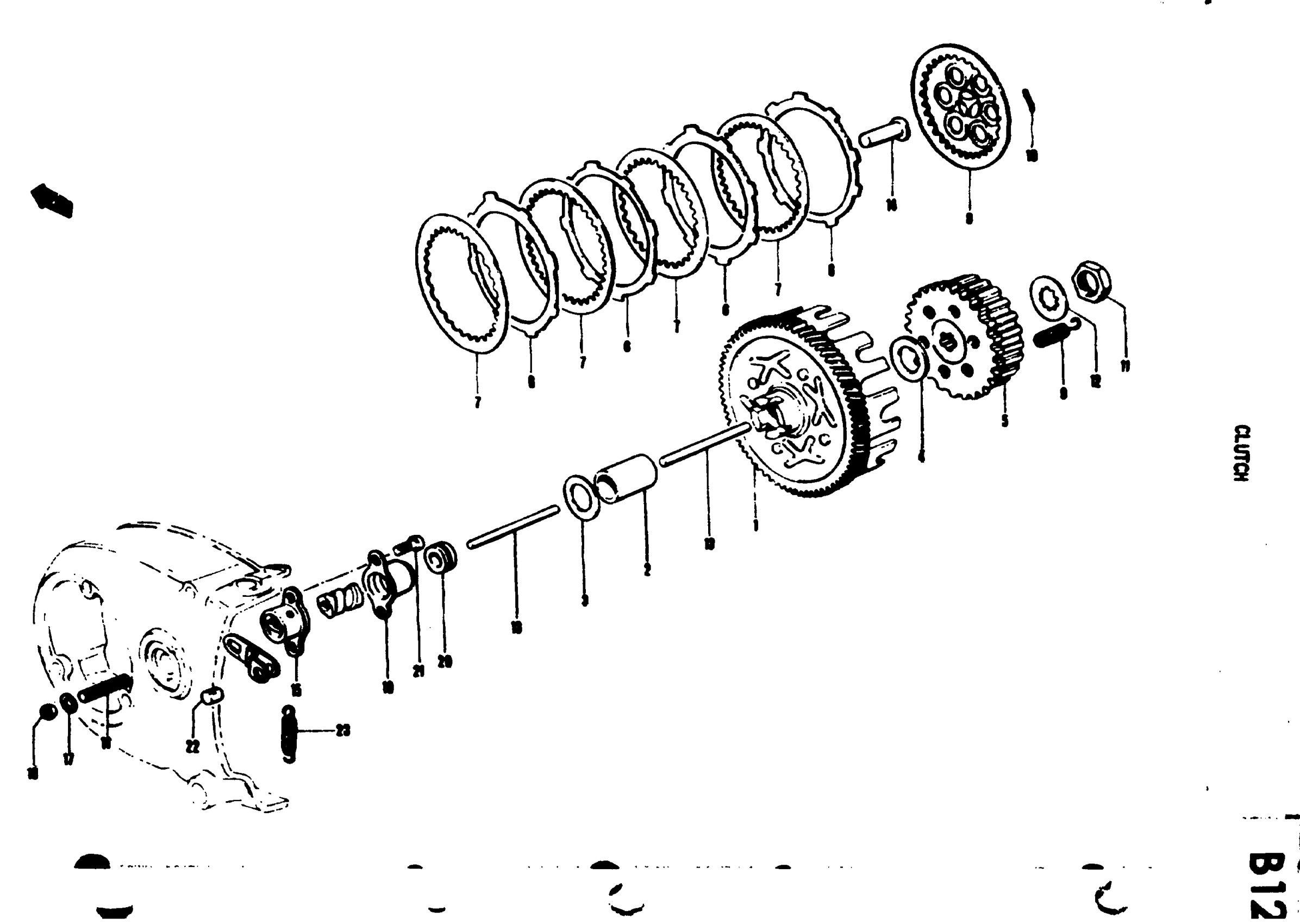

Suzuki TS50 (1974) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-05101

Unavailable

2

SPACER | 17x21x33.5

09180-17025

Unavailable

3

WASHER, 2ND DRIVE GEAR | 17x29x1 This part replaces 08211-17301.

09181-17223

$2.96

4

THRUST WASHER | 17x29x1.5

08211-17282

$2.70

5

HUB, CLUTCH SLEEVE

21411-22200

Unavailable

6

PLATE,CLUTCH DR This part replaces 21441-12000.

21441-42G00

$17.17

7

PLATE, CLUTCH STEEL

21451-23000

$9.27

8

PLATE, CLUTCH PRESSURE

21460-23000

Unavailable

9

SPRING, CLUTCH

09443-12003

$2.47

10

PIN, CLUTCH SPRING | OD:2.5, L:19.8

09261-02001

$1.56

11

NUT This part replaces 09140-16001.

09140-16005

$3.75

12

WASHER, SLEEVE HUB | 14x33x0.8

09167-17002

$1.91

13

ROD, CLUTCH PUSH | OD:5.5, L:90

23111-03001

Unavailable

14

ROD, CLUTCH RELEASE

23121-03010

Unavailable

15

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 16 - 18

23200-26000

Unavailable

16

SCREW | NG This part replaces 09134-06001.

09134-06010

$3.12

17

WASHER, ADJUSTING SCREW | 6.5x16x1.2

09160-06019

$1.49

18

.NUT This part replaces 08311-31068.

08310-00067

$2.13

19

COVER, RELEASE SCREW

23241-23000

$11.95

20

DUST SEAL

09281-05001

$1.78

21

SCREW This part replaces 02112-05168.

02112-05167

$1.97

22

PIECE, RELEASE ARM END

23222-07000

$4.52

23

SPRING, RETURN

09443-08001

$2.92
