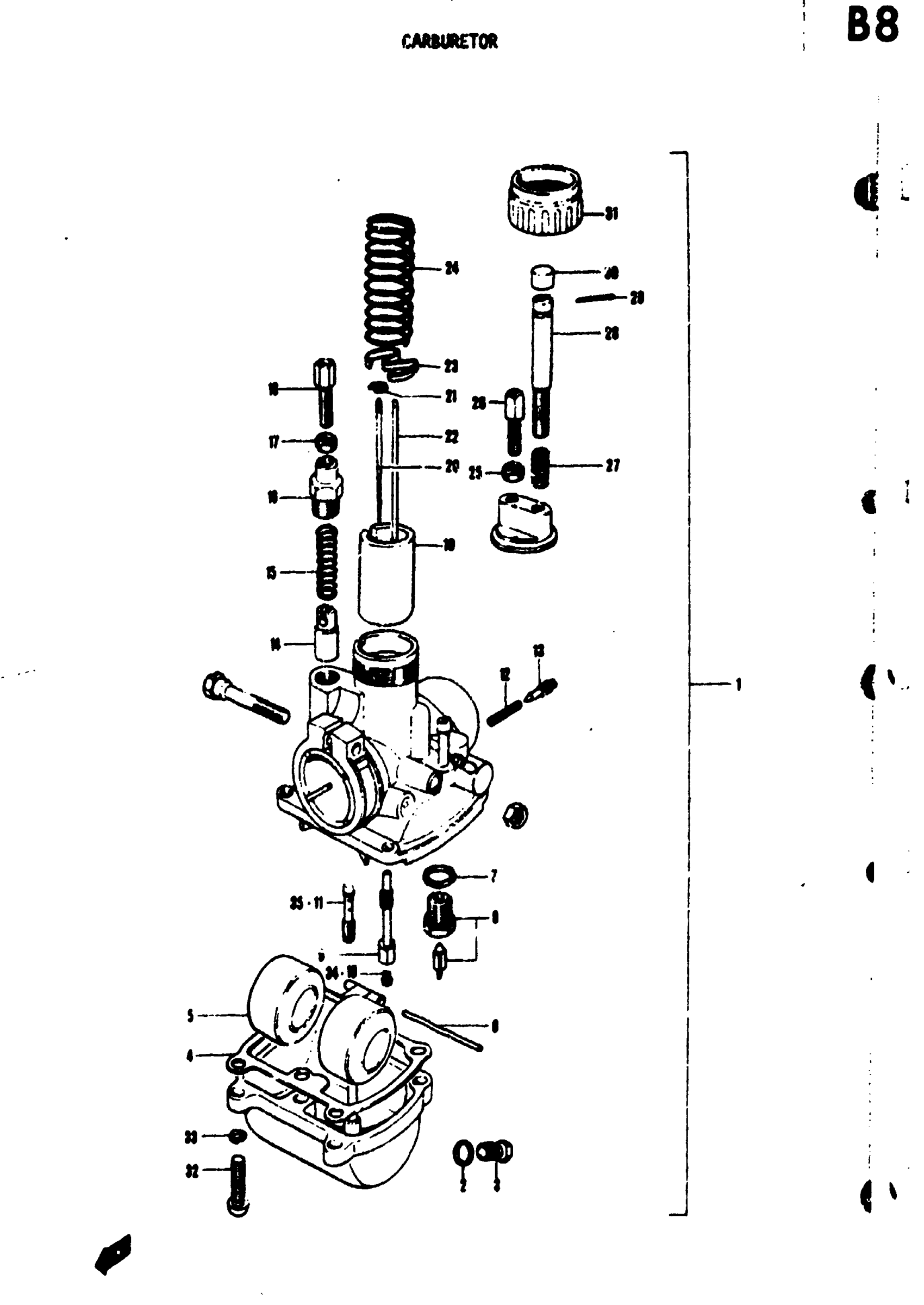

Suzuki TS50 (1974) CARBURETOR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 33 This part replaces 13200-26010.

13200-26011

Unavailable

2

GASKET, DRAIN PLUG

13249-05010

$1.98

3

PLUG, DRAIN

13247-05010

$5.11

4

GASKET, FLOAT CHAMBER

13251-01011

$5.45

5

FLOAT

13252-02010

Unavailable

6

.PIN, FLOAT

13254-01010

$3.62

7

GASKET, VALVE SEAT

13392-01010

$2.15

8

VALVE, NEEDLE This part replaces 13370-26010.

13370-23010

$57.83

9

JET, NEEDLE | E-2

09494-00038

Unavailable

10

NO DESCRIPTION AVAILABLE | #75 This part replaces 09491-75005.

09491-75009

Unavailable

11

JET, PILOT (17.5) | #17.5 This part replaces 09492-17002.

09492-17006

$9.50

12

SPRING, PILOT AIR SCREW

13268-01010

$5.28

13

SCREW, PILOT AIR ADJUSTING

13269-01010

$14.20

14

PLUNGER, STARTER

13411-01010

$18.43

15

SPRING, PLUNGER

13417-01010

$4.62

16

STARTER PLUNGER This part replaces 13418-03110.

13418-63110

Unavailable

17

NUT

13661-03010

$5.67

18

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

19

VALVE, THROTTLE | CA:2.0

13551-26010

Unavailable

20

NEEDLE, JET | 3E3

13383-19010

$16.00

21

E RING This part replaces 13394-12110.

13394-40D00

$5.43

22

ROD, THROTTLE VALVE STOP

13296-05010

$7.95

23

PLATE This part replaces 13581-01010.

13581-07910

Unavailable

24

SPRING, THROTTLE VALVE

13573-05010

Unavailable

25

NUT

13661-03010

$5.67

26

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

27

SPRING, STOP SCREW

13268-05010

$5.67

28

STOP SCREW, THROTTLE VALVE

13267-05010

$14.20

29

PIN This part replaces 04111-12108.

04111-1210A

$1.50

30

CAP

13688-08010

$4.43

31

CAP, MIXING CHAMBER

13265-05110

Unavailable

32

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

33

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

34

JET, MAIN | #62.5 OPT

09491-62002

Unavailable

34

JET, MAIN | #65 OPT

09491-65003

Unavailable

34

JET (#67.5) | #67.5 OPT This part replaces 09491-67001.

09491-67003

Unavailable

34

JET, MAIN | #72.5 OPT

09491-72005

Unavailable

35

JET, PILOT (25) | #25 OPT This part replaces 09492-25003.

09492-25005

$9.55

35

JET, PILOT (30) | #30 OPT This part replaces 09492-30003.

09492-30006

$9.55
