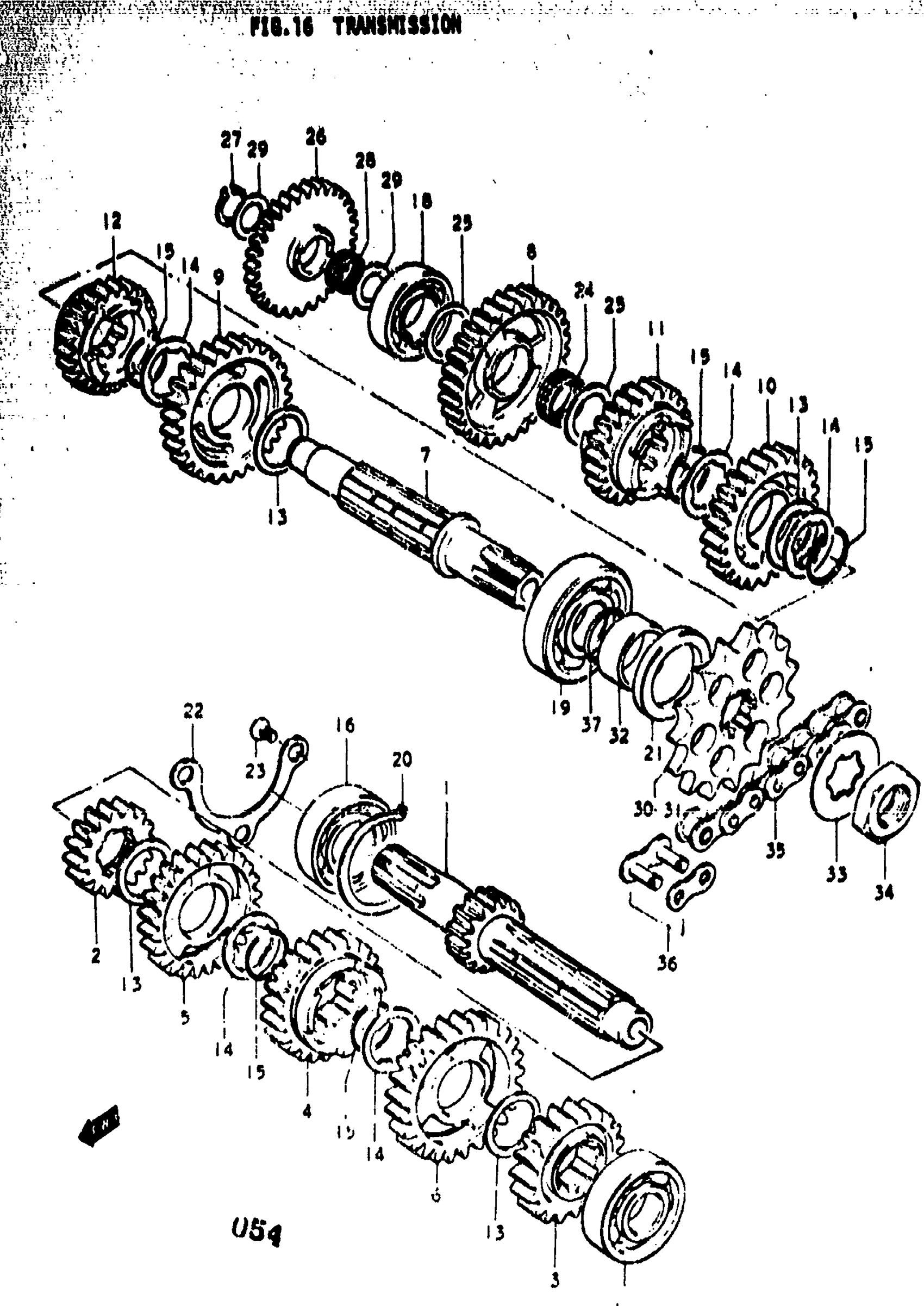

Suzuki TS400 (1977) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | NT: 14

24121-32001

Unavailable

2

GEAR, 1ST DRIVE | NT: 15

24211-32000

Unavailable

3

GEAR, 2ND DRIVE | NT: 19

24221-16500

Unavailable

4

GEAR, 3RD DRIVE | NT: 22

24231-16500

Unavailable

5

GEAR, 4TH DRIVE | NT: 24

24240-16500

Unavailable

6

GEAR, 5TH DRIVE | K; NT: 25

24250-16500

Unavailable

6

GEAR, 5TH DRIVE | L,M,A,B; NT: 26

24250-32200

Unavailable

7

DRIVESHAFT | K,L,M,A

24131-16501

Unavailable

7

DRIVESHAFT | B

24131-32000

Unavailable

8

GEAR, 1ST DRIVEN | NT: 32

24311-32001

Unavailable

9

GEAR, 2ND DRIVEN | NT: 27

24320-16500

Unavailable

10

GEAR, 3RD DRIVEN | NT: 25

24331-16501

Unavailable

11

GEAR, 4TH DRIVEN | NT: 23

24341-16500

Unavailable

12

GEAR, 4TH DRIVEN | NT: 21

24351-16500

Unavailable

13

THRUST WASHER | 25x32x1

08211-25321

$3.27

14

WASHER LOCK (25.1X31X1.0) | 22x32x1 This part replaces 09167-25006.

09167-25012

$3.70

15

CIRCLIP | TO 09167-25012

09380-25006

Unavailable

16

B1 25X52X15 BEA This part replaces 08142-62050.

08142-62057

$30.82

17

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

18

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

19

BEARING, RH (22X56X16) This part replaces 09262-22006.

09262-22025

$57.67

20

RING

09381-52006

Unavailable

21

OIL SEAL

09283-32003

$7.31

22

HOLDER, BEARING

24741-16500

Unavailable

23

SCREW This part replaces 02122-06128.

02122-06127

$1.84

24

BEARING

09263-20011

Unavailable

25

WASHER | 20x30.5x1

09160-20004

Unavailable

26

GEAR, KICK STARTER IDIE | NT: 27

26261-16500

Unavailable

27

CIRCLIP

09380-17001

$1.98

28

BEARING | 17x25x1

09263-17004

$12.03

29

THRUST WASHER | 17x25x1

08211-17241

$2.54

30

SPROCKET, ENGINE | K,L,M,A; NT: 16, #525

27511-18720

Unavailable

30

SPROCKET, ENGINE | K,L,M,A; NT: 14 OPT

27511-18000

Unavailable

30

SPROCKET, ENGINE | K,L,M,A; NT: 15 OPT

27511-18710

Unavailable

30

SPROCKET, ENGINE | K,L,M,A; NT: 17 OPT

27511-32000

Unavailable

31

SPROCKET, ENGINE | B; NT: 16 /525

27511-30710

Unavailable

32

SPACER | 22x32x13.4

09180-22005

Unavailable

33

WASHER | K,L,M,A; 18.5x40x0.8

09167-22005

$2.11

33

WASHER | B; 19.5x40x0.8

09167-22012

$1.54

34

NUT | K,L,M,A

09140-22003

Unavailable

34

NUT | B

09140-18006

$4.83

35

CHAIN ASSY, DRIVE | /525 ERALESS This part replaces 27600-32012.

27600-16410

Unavailable

36

JOINT | K,L,M,A; OPT

27620-32011

Unavailable

37

O RING

09280-22003

$1.72
