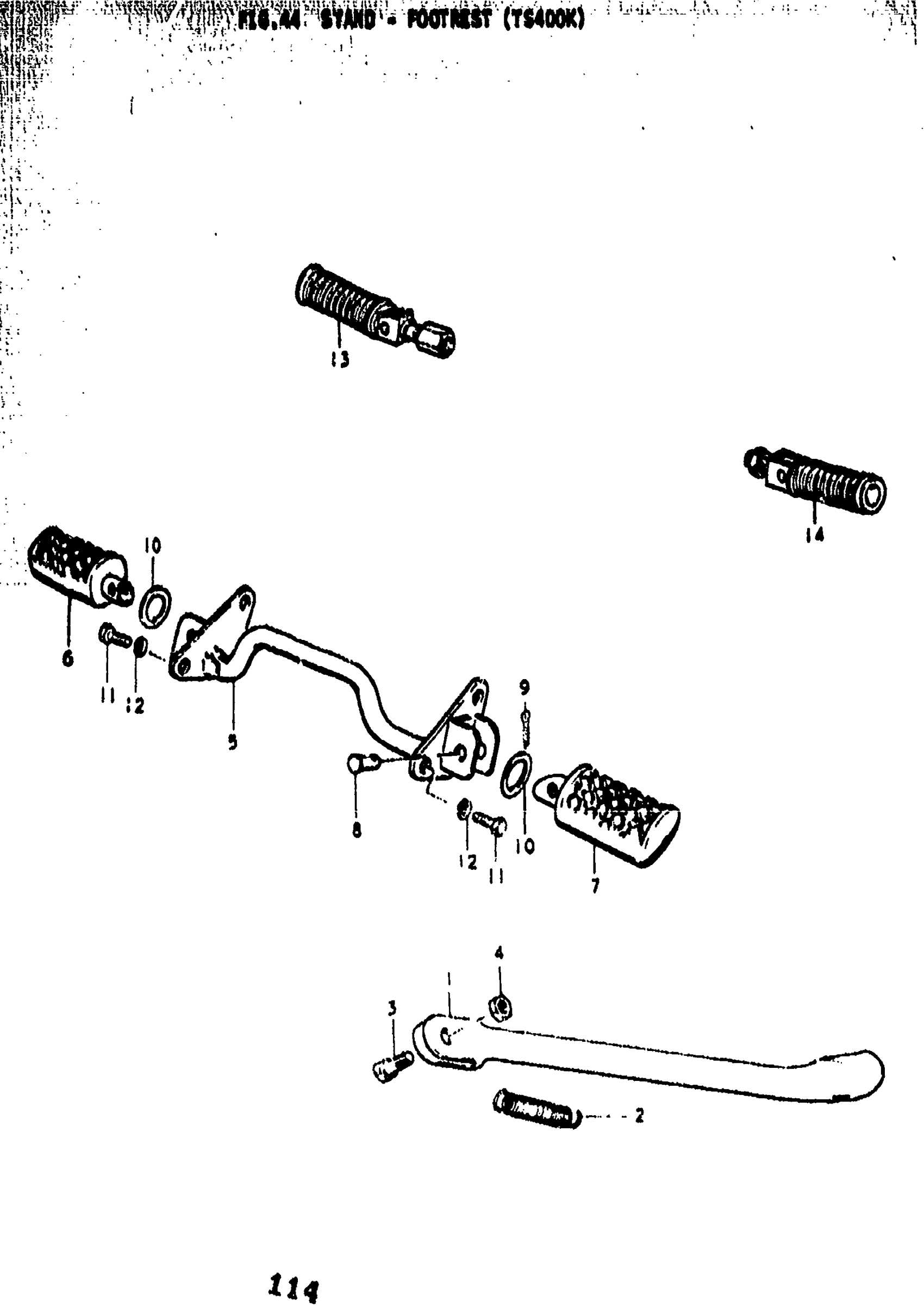

Suzuki TS400 (1977) STAND - FOOTREST (TS400K) Diagram

#

Description
Price

1

STAND, PROP | TO 42310-41100 This part replaces 42310-16500.

42310-41100

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT

09100-10067

$2.61

4

NUT This part replaces 08312-31108.

08310-00107

$2.19

5

FOOTREST, FRONT

43510-32001

Unavailable

6

RUBBER, RH | CIRCLE SHAPED This part replaces 43550-25000.

43550-25301

Unavailable

7

RUBBER, LH | SEE NOTE This part replaces 43560-25000.

43560-25301

Unavailable

8

PIN

09200-08002

$2.05

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

10

WASHER

09160-22003

Unavailable

11

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

12

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

13

FOOTREST ASSY, PILLION RH

43600-28000

Unavailable

14

FOOTREST ASSY,P This part replaces 43600-03001.

43600-09D00

$27.30
