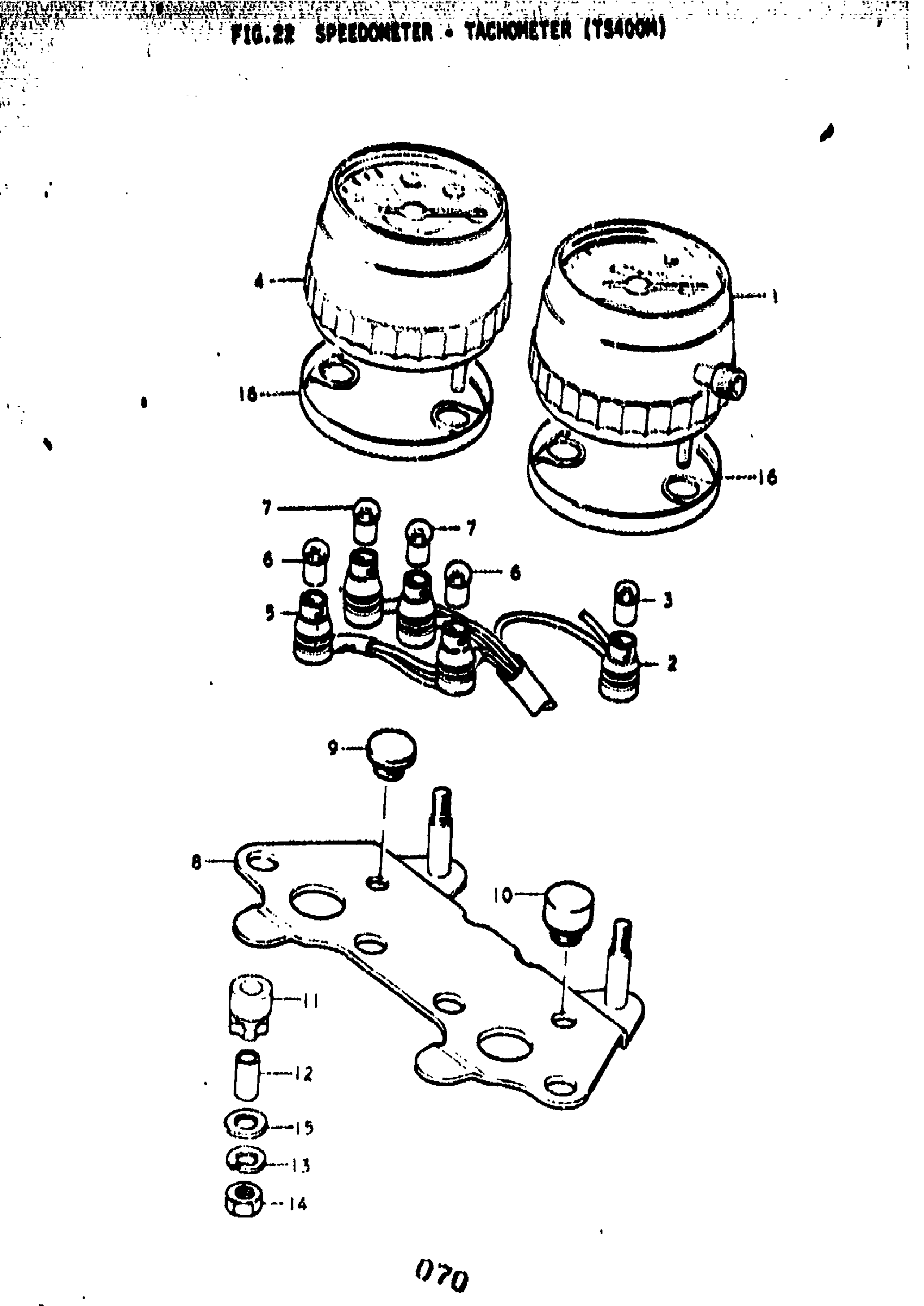

Suzuki TS400 (1977) SPEEDOMETER - TACHOMETER (TS400M) Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | FROM 34100-32612; Includes Item(s) 1 - 16 This part replaces 34100-32613.

34100-32615

Unavailable

1

SPEEDOMETER ASSY

34110-32610

Unavailable

2

SOCKET

34173-22720

Unavailable

3

BULB | 12V, 3.4W

09471-12001

$1.65

4

NO DESCRIPTION AVAILABLE | FROM 34210-32612 This part replaces 34210-32613.

34210-32615

Unavailable

5

SOCKET

34170-30610

Unavailable

6

BULB | 12V, 3.4W

09471-12001

$1.65

7

BULB | 12V,1.7W

09471-12004

$2.69

8

BRACKET

34950-32600

Unavailable

9

CUSHION, A

34956-16420

Unavailable

10

CUSHION, B

34957-16420

Unavailable

11

CUSHION, C

34955-16420

$4.43

12

SPACER

34972-32020

Unavailable

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

NUT This part replaces 08311-11058.

08310-00057

$1.84

15

WASHER This part replaces 34973-18620.

09160-06084

$1.78

16

PLATE, UNDER

34960-32020

Unavailable
