Partiron

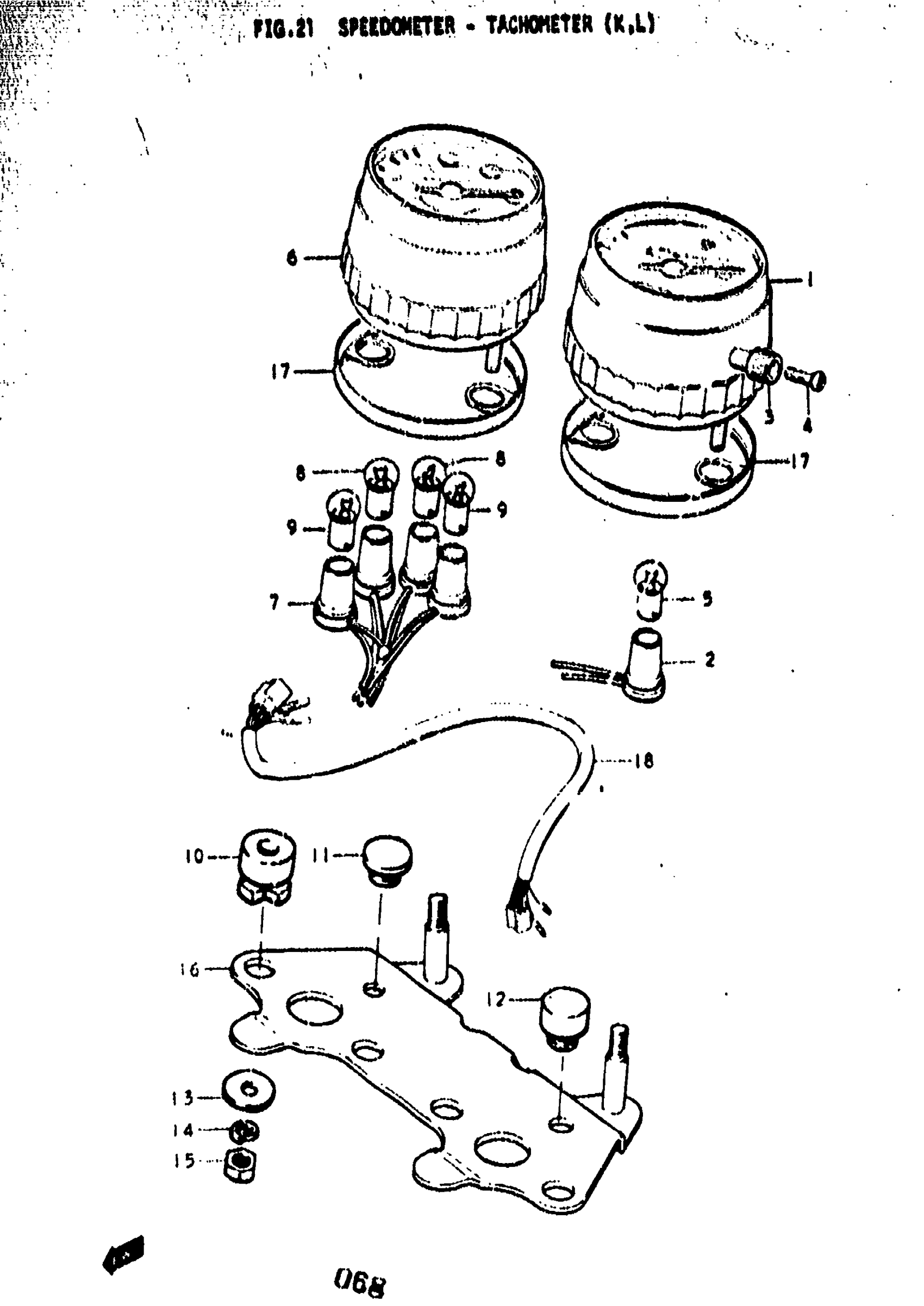

Suzuki TS400 (1977) SPEEDOMETER - TACHOMETER (K Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | TO 34100-32612; Includes Item(s) 1 - 14 This part replaces 34100-32710.

34100-32615

Unavailable

1

SPEEDOMETER ASSY | K

34100-32610

Unavailable

1

SPEEDOMETER ASSY | L

34101-32611

Unavailable

2

SOCKET | K

34173-32600

Unavailable

2

SOCKET | L

34173-22720

Unavailable

3

KNOB, TRIP METER | K

34980-33600

Unavailable

4

SCREW (2X6) | K This part replaces 34981-33600.

09139-02003

$1.65

5

BULB | K; 12V, 3.4WL; 12V, 3.4W

09471-12001

$1.65

6

TACHOMETER ASSY | K

34200-32600

Unavailable

6

TACHOMETER ASSY | L

34201-32601

Unavailable

7

SOCKET | K

34170-32600

Unavailable

7

SOCKET | L

34170-32021

Unavailable

8

BULB | 12V, 1.7W

09471-12004

$2.69

9

BULB | 12V, 3.4W

09471-12001

$1.65

10

CUSHION, A

34955-16420

$4.43

11

CUSHION, B

34956-16420

Unavailable

12

CUSHION, C

34957-16420

Unavailable

13

WASHER This part replaces 09160-06007.

09160-06084

$1.78

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

.NUT | Includes Item(s) 16 - 18 This part replaces 08311-11068.

08310-00067

$2.13

16

BRACKET

34950-32600

Unavailable

17

PLAT, UNDER | L; FROM 34940-30021

34960-32020

Unavailable

18

LEAD CORD | L; FROM 33980-30710

34175-30710

Unavailable
