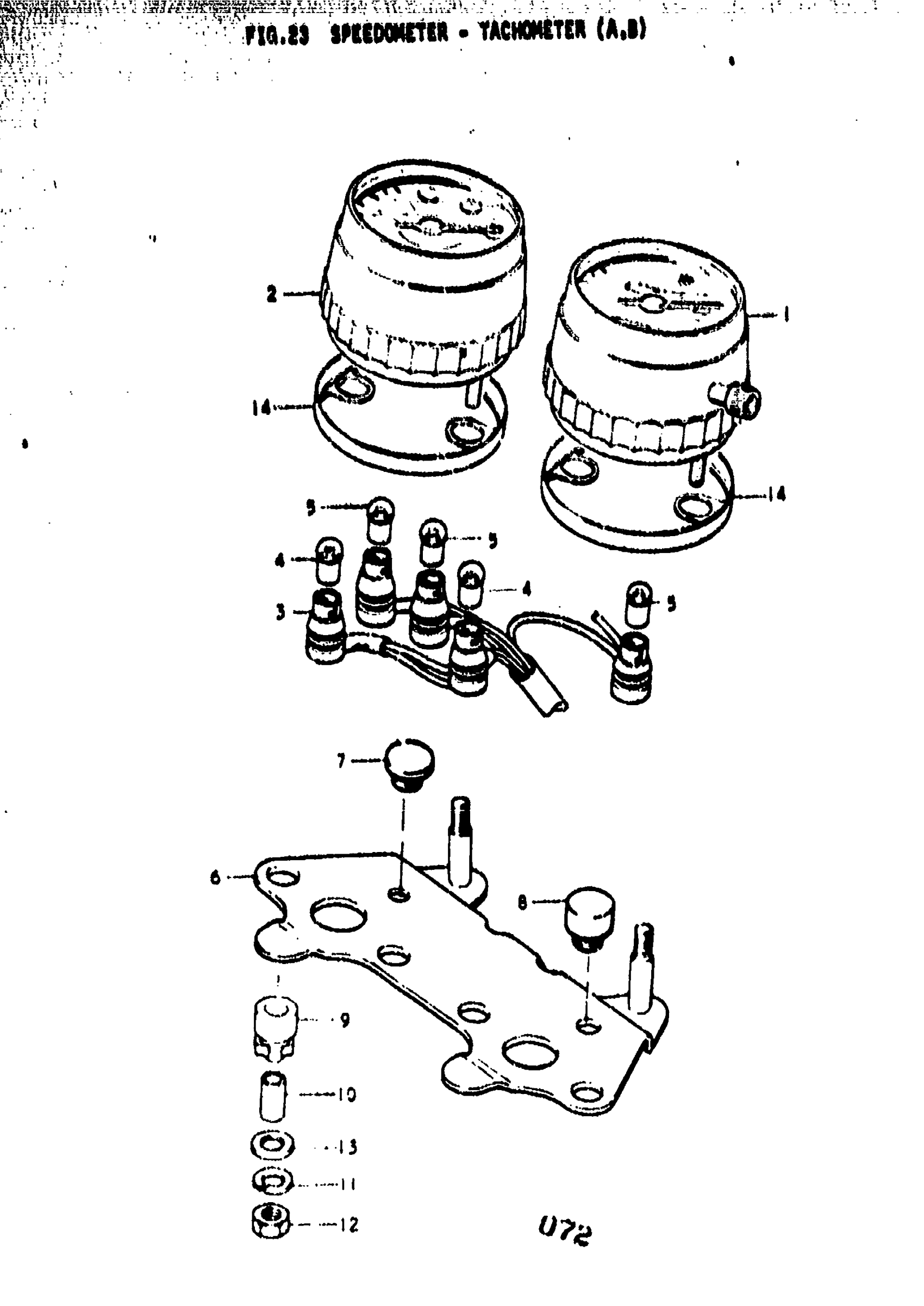

Suzuki TS400 (1977) SPEEDOMETER - TACHOMETER (A Diagram

#

Description
Price

0

SPEEDOMETER / TACHOMETER | A This part replaces 34100-32620.

34100-32622

Unavailable

0

SPEEDOMETER / TACHOMETER | B; Includes Item(s) 1 - 14

34100-32622

Unavailable

1

SPEEDOMETER | A

34110-32610

Unavailable

1

SPEEDOMETER | B

34110-32612

Unavailable

2

NO DESCRIPTION AVAILABLE | A; FROM 34210-32612 This part replaces 34210-32613.

34210-32615

Unavailable

2

NO DESCRIPTION AVAILABLE | B This part replaces 34210-32614.

34210-32615

Unavailable

3

SOCKET

34173-32620

Unavailable

4

BULB | 6V, 1.7W

09471-06001

$2.18

5

BULB | 6V,3W

09471-06002

$2.25

6

BRACKET

34950-32601

Unavailable

7

CUSHION, A

34956-16420

Unavailable

8

CUSHION, B

34957-16420

Unavailable

9

CUSHION, C

34955-16420

$4.43

10

SPACER

34972-32020

Unavailable

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

NUT This part replaces 08311-11058.

08310-00057

$1.84

13

WASHER This part replaces 34973-18620.

09160-06084

$1.78

14

PLATE, UNDER | AB

34960-32020

Unavailable
