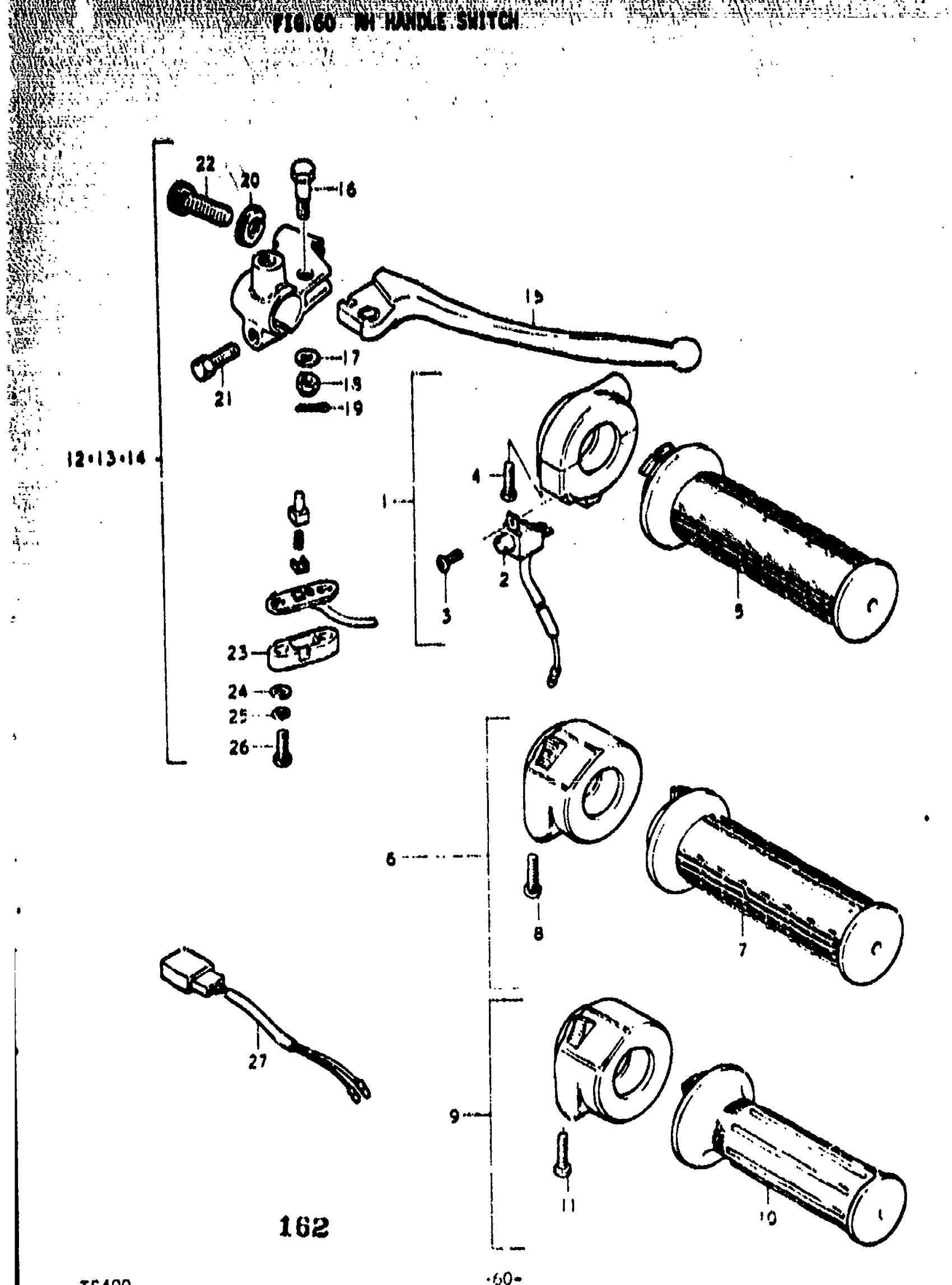

Suzuki TS400 (1977) RH HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | K,L; TO 57100-32011; Includes Item(s) 2 - 5

57100-32010

Unavailable

2

SWITCH ASSY, ENGINE STOP | K,L

57150-32010

Unavailable

3

SCREW | K,L This part replaces 02111-03067.

02112-0306B

$1.59

4

SCREW | K,L This part replaces 02111-05207.

02112-05207

$1.97

5

GRIP, THROTTLE | K,L

57110-28010

$34.76

6

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 7 - 8 This part replaces 57100-32600.

57100-39650

Unavailable

7

GRIP, THROTTLE | M

57110-28010

$34.76

8

SCREW | M This part replaces 02111-05207.

02112-05207

$1.97

9

GRIP ASSY, THROTTLE | A,B; Includes Item(s) 10 - 11

57100-32610

Unavailable

10

GRIP, THROTTLE | A,B

57110-32610

Unavailable

11

SCREW | A,B This part replaces 02111-05207.

02112-05207

$1.97

12

LEVER ASSY, BRAKE | K; TO 57300-30700 This part replaces 57300-30011.

57300-30501

Unavailable

13

LEVER ASSY, BRAKE | L; TO 57300-30701 This part replaces 57300-30700.

57300-30501

Unavailable

14

LEVER ASSY, BRAKE | M,A,B; Includes Item(s) 15 - 27 This part replaces 57300-30013.

57300-30501

Unavailable

15

LEVER, BRAKE This part replaces 57420-33010.

57420-18602

Unavailable

16

BOLT This part replaces 57431-11010.

57431-11013

$6.31

17

LOCK WASHER This part replaces 08321-21063.

08321-0106A

$1.84

18

NUT

57433-11010

$5.64

19

PIN This part replaces 04111-16158.

04111-1620A

$1.49

20

NUT, CABLE

57442-11010

$2.79

21

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

22

ADJUSTER, CABLE

57441-11010

$5.62

23

COVER | L,M,A,B

57481-33010

$5.84

24

WASHER | L This part replaces 08322-21038.

08322-01037

$1.93

25

WASHER,LOCK | L,M,A,B This part replaces 08321-21038.

09162-03001

$1.49

26

SCREW | L,M,A,B This part replaces 09125-03105.

09125-03105-XC0

$2.23

27

LEAD WIRE | K

57323-31700

Unavailable
