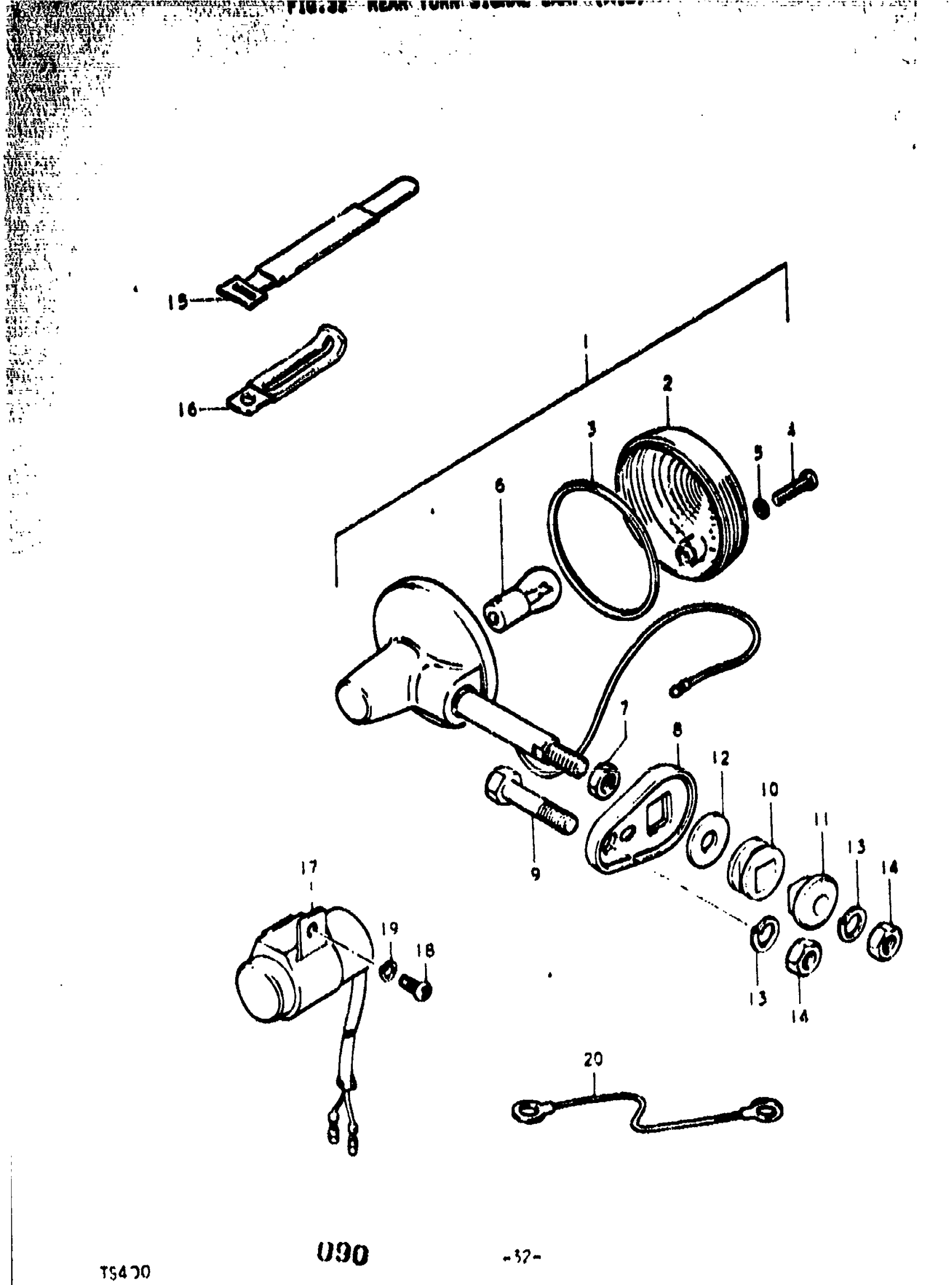

Suzuki TS400 (1977) REAR TURN SIGNAL LAMP (A Diagram

#

Description
Price

1

LAMP RR TURN SI | Includes Item(s) 2 - 7 This part replaces 35603-32620.

35603-32620-999

Unavailable

2

LENS

35612-28620

$8.98

3

GASKET

35613-28620

$4.55

4

SCREW

02111-04258

Unavailable

5

GASKET

35627-43010

$2.28

6

BULB | 6V, 21 CP

09471-06011

Unavailable

7

NUT This part replaces 08312-32108.

08310-00107

$2.19

8

BRACKET This part replaces 41580-32200.

41580-32201

Unavailable

9

BOLT This part replaces 01122-10558.

01500-1055A

$3.55

10

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

11

SPACER

35695-32200

Unavailable

12

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

13

LOCK WASHER | AB This part replaces 08321-21108.

08321-01107

$1.84

14

NUT | AB This part replaces 08312-12108.

08310-00107

$2.19

15

CLAMP

09407-07301

Unavailable

16

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

17

RELAY ASSY,TRN | 6V This part replaces 38610-28611.

38610-05X50

Unavailable

18

SCREW This part replaces 02112-06168.

02112-06167

$1.49

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

LEAD WIRE, REAR GROUND | B

36660-32000

Unavailable
