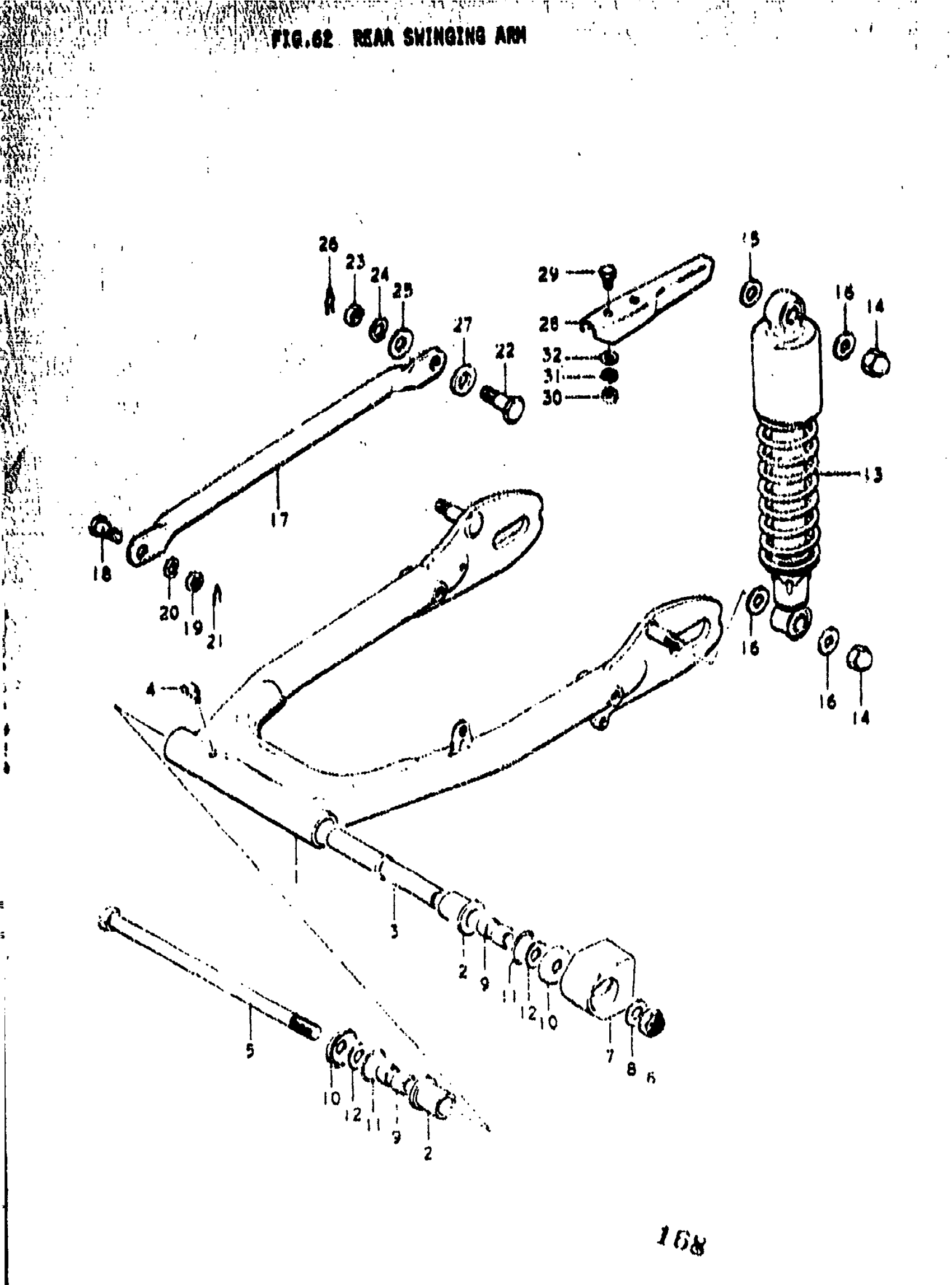

Suzuki TS400 (1977) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | K; FROM 61101-32804-019

61100-32822-019

Unavailable

1

NO DESCRIPTION AVAILABLE | L,M This part replaces 61100-32823-019.

61100-32825-019

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 2 - 4 This part replaces 61100-32824-019.

61100-32825-019

Unavailable

2

BUSHING | K,L,M,A This part replaces 09307-22002.

09307-22003

Unavailable

2

BUSHING | B

09307-22003

Unavailable

3

SPACER

61280-32000

Unavailable

4

NIPPLE, GREASE | K This part replaces 08351-31008.

08351-3100A

$4.45

5

SHAFT, REAR SWINGING ARM | K,L,M; TO 61211-15005

61211-15004

Unavailable

5

SHAFT, REAR SWINGING ARM | A,B This part replaces 61211-15006.

61211-15007

Unavailable

6

NUT | FROM 09159-14002

09159-14003

Unavailable

7

BUFFER, CHAIN TOUCH DEFENSE

61273-32000

Unavailable

8

WASHER This part replaces 08322-11128.

08322-01127

$1.84

9

SPACER | FROM 61251-15000

61251-15001

Unavailable

10

COVER, DUST SEAL

61262-15000

$93.03

11

.O RING (D:3,ID:29.5) | ID:24.5, D13

09280-30001

$1.72

12

THRUST WASHER | ID.5x24x2.3

09160-14009

$2.82

13

SHOCK ABSORBER ASSY, REAR | K

62100-30010

Unavailable

13

SHOCK ABSORBER ASSY, REAR | L

62100-30011

Unavailable

13

SHOCK ABSORBER ASSY, REAR | M

62100-30012

Unavailable

13

SHOCK ABSORBER ASSY, REAR | A,B

62100-30600

Unavailable

14

NUT This part replaces 08313-11107.

08313-10107

$2.50

15

WASHER This part replaces 08322-11128.

08322-01127

$1.84

16

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

17

LINK, REAR TORQUE

64311-16500

Unavailable

18

BOLT

09111-08012

$3.78

19

NUT

09140-08008

$1.49

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

CLIP This part replaces 09385-10001.

09385-10005

$1.56

22

BOLT | K,M,A,B

09111-10009

Unavailable

22

BOLT | L

09111-08025

Unavailable

23

NUT | K,M,A,B This part replaces 08311-31108.

08310-00107

$2.19

23

NUT | L

09159-08020

$1.78

24

LOCK WASHER | K,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

25

WASHER | K,M,A

09180-12004

Unavailable

25

WASHER | B This part replaces 09160-12004.

09160-12088

$2.00

25

WASHER | L

09164-08004

Unavailable

26

CLIP This part replaces 09385-10001.

09385-10005

$1.56

27

CUSHION | L

09161-13002

Unavailable

28

END, CHAIN CASE | OPT

61331-30000

Unavailable

29

BOLT | OPT This part replaces 01112-06108.

01500-06107

$2.06

30

.NUT | OPT This part replaces 08311-11068.

08310-00067

$2.13

31

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$2.13

32

WASHER | OPT This part replaces 08322-21068.

08322-01067

$2.13
