Partiron

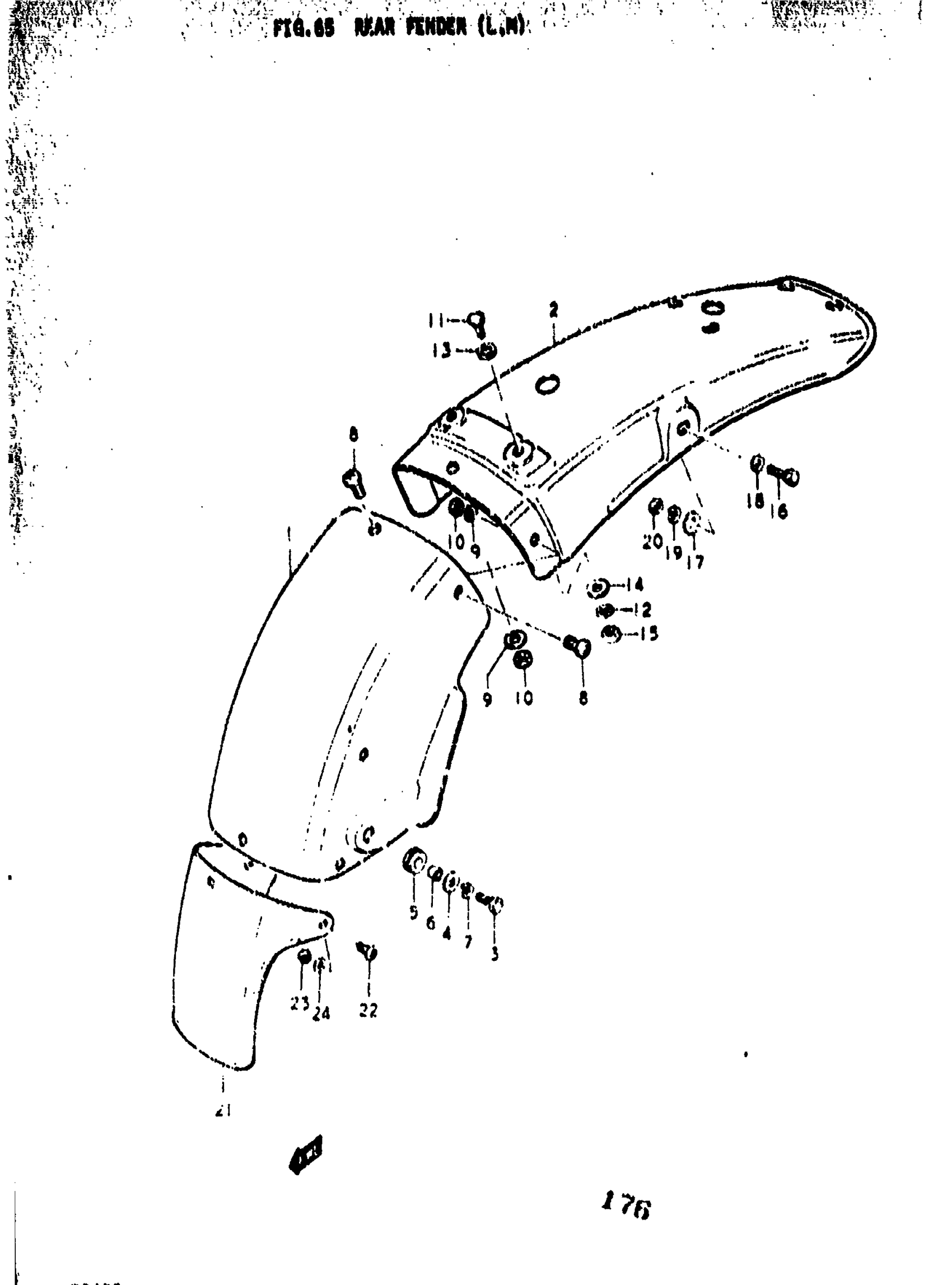

Suzuki TS400 (1977) REAR FENDER (L Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63110-30620.

63110-30620-019

Unavailable

2

NO DESCRIPTION AVAILABLE | L; TO 63110-30301-714 This part replaces 63110-30300-714.

63110-30302-13L

Unavailable

2

BODY, REAR FENDER REAR | M; TO 63110-30301-737

63110-30300-737

Unavailable

3

BOLT This part replaces 01112-06208.

01500-06207

$2.28

4

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

5

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

6

SPACER | 6.1x9x7.5

09180-06038

$1.98

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

SCREW This part replaces 02141-05127.

02142-05127

$1.97

9

WASHER This part replaces 08322-21058.

08322-01057

$2.13

10

NUT This part replaces 08311-11058.

08310-00057

$1.84

11

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

15

.NUT This part replaces 08311-11068.

08310-00067

$2.13

16

BOLT This part replaces 01112-06208.

01500-06207

$2.28

17

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

.NUT This part replaces 08311-11068.

08310-00067

$2.13

21

MUD GUARD, REAR FENDER

63411-30002

Unavailable

22

SCREW This part replaces 02141-05107.

02142-05107

$1.49

23

NUT This part replaces 08311-31058.

08310-00057

$1.84

24

WASHER This part replaces 08322-21058.

08322-01057

$2.13
