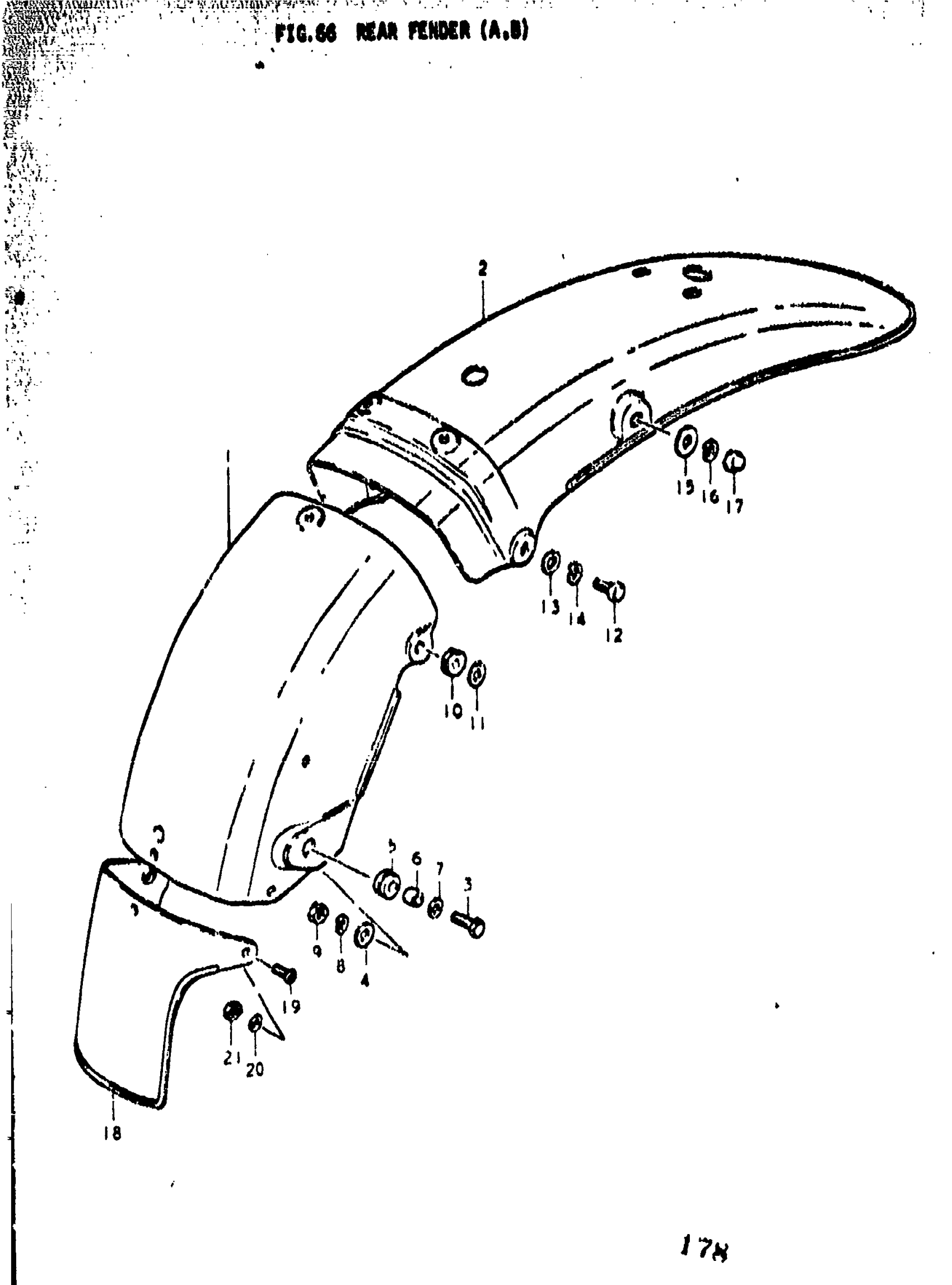

Suzuki TS400 (1977) REAR FENDER (A Diagram

#

Description
Price

1

BODY, REAR @ FRONT

63112-30003-019

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 63110-30301-189.

63110-30302-13L

Unavailable

3

BOLT This part replaces 01112-06208.

01500-06207

$2.28

4

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

5

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

6

SPACER | 6.1x9x7.5

09180-06038

$1.98

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

CUSHION This part replaces 09320-05006.

09320-06504

$4.96

11

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

12

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

13

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER | A

09160-10041

Unavailable

15

WASHER | B This part replaces 08322-11108.

08322-01107

$2.15

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

NUT This part replaces 08313-11107.

08313-10107

$2.50

18

MUD GUARD

63411-30002

Unavailable

19

SCREW This part replaces 02141-05127.

02142-05127

$1.97

20

WASHER This part replaces 08322-21058.

08322-01057

$2.13

21

NUT This part replaces 08311-31058.

08310-00057

$1.84
