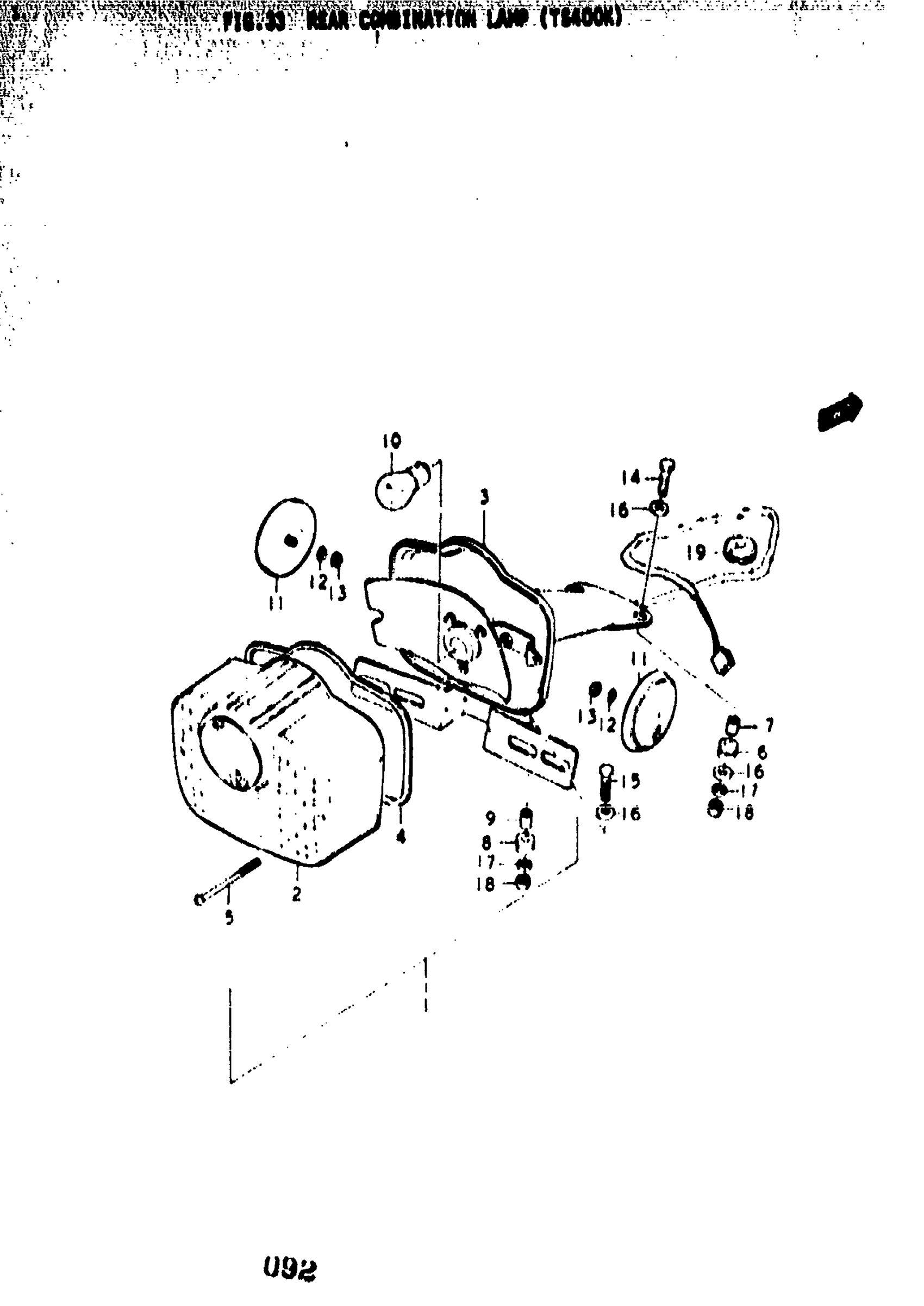

Suzuki TS400 (1977) REAR COMBINATION LAMP (TS400K) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | FROM 35700-32820-999; Includes Item(s) 2 - 10

35710-32611

Unavailable

2

LENS RR COMB LA This part replaces 35712-27630.

35712-23011

$59.80

3

HOUSING

35715-27630

Unavailable

4

GASKET

35713-27630

$6.30

5

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

6

CUSHION

35765-15010

Unavailable

7

SPACER This part replaces 35766-15010.

35766-37110

$5.28

8

CUSHION

35765-22210

$3.84

9

SPACER This part replaces 35766-22210.

35766-37120

Unavailable

10

BULB | 12V,32/4CP

09471-12035

$4.49

11

REFLEX REFLECTOR

35970-31610

Unavailable

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

NUT This part replaces 08311-11058.

08310-00057

$1.84

14

BOLT, REAR This part replaces 01112-06308.

01500-06307

$2.48

15

BOLT This part replaces 01112-06358.

64455-07L00

$1.59

16

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

.NUT This part replaces 08311-11068.

08310-00067

$2.13

19

GROMMET

09308-07002

$2.12
