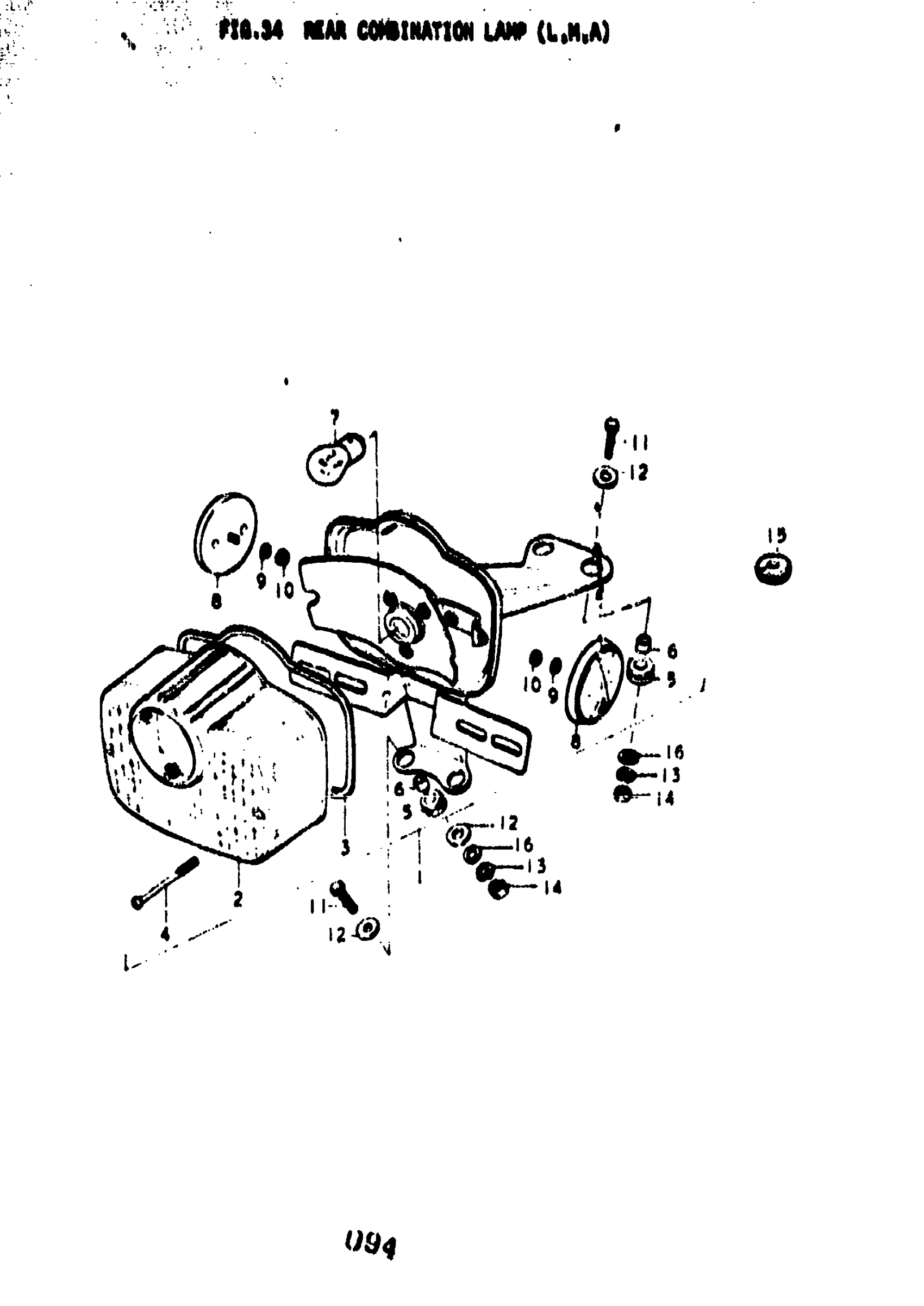

Suzuki TS400 (1977) REAR COMBINATION LAMP (L Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | L,M; FROM 39700-32830

35710-32620

Unavailable

1

LAMP ASSY, REAR COMBINATION | A; Includes Item(s) 2 - 7

35710-32630

Unavailable

2

LENS RR COMB LA This part replaces 35712-27630.

35712-23011

$59.80

3

GASKET

35713-27630

$6.30

4

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

5

SPACER This part replaces 35766-15010.

35766-37110

$5.28

6

SPACER

35765-15010

Unavailable

7

BULB | L,M; 12V, 23/6W

09471-12035

$4.49

7

BULB | A; 6V, 32/3W

09471-06030

Unavailable

8

REFLEX REFLECTOR

35970-31610

Unavailable

9

LOCK WASHER | L,M This part replaces 08321-21058.

08321-0105A

$1.84

10

NUT This part replaces 08311-11058.

08310-00057

$1.84

11

BOLT This part replaces 01112-06208.

01500-06207

$2.28

12

WASHER (6.5X20X1.2) | L,M; 6.5x20x1.2A; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

13

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

14

.NUT This part replaces 08311-11068.

08310-00067

$2.13

15

GROMMET

09308-07002

$2.12

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13
