1977 Suzuki TS400 Oil Tank Diagram

← All diagrams

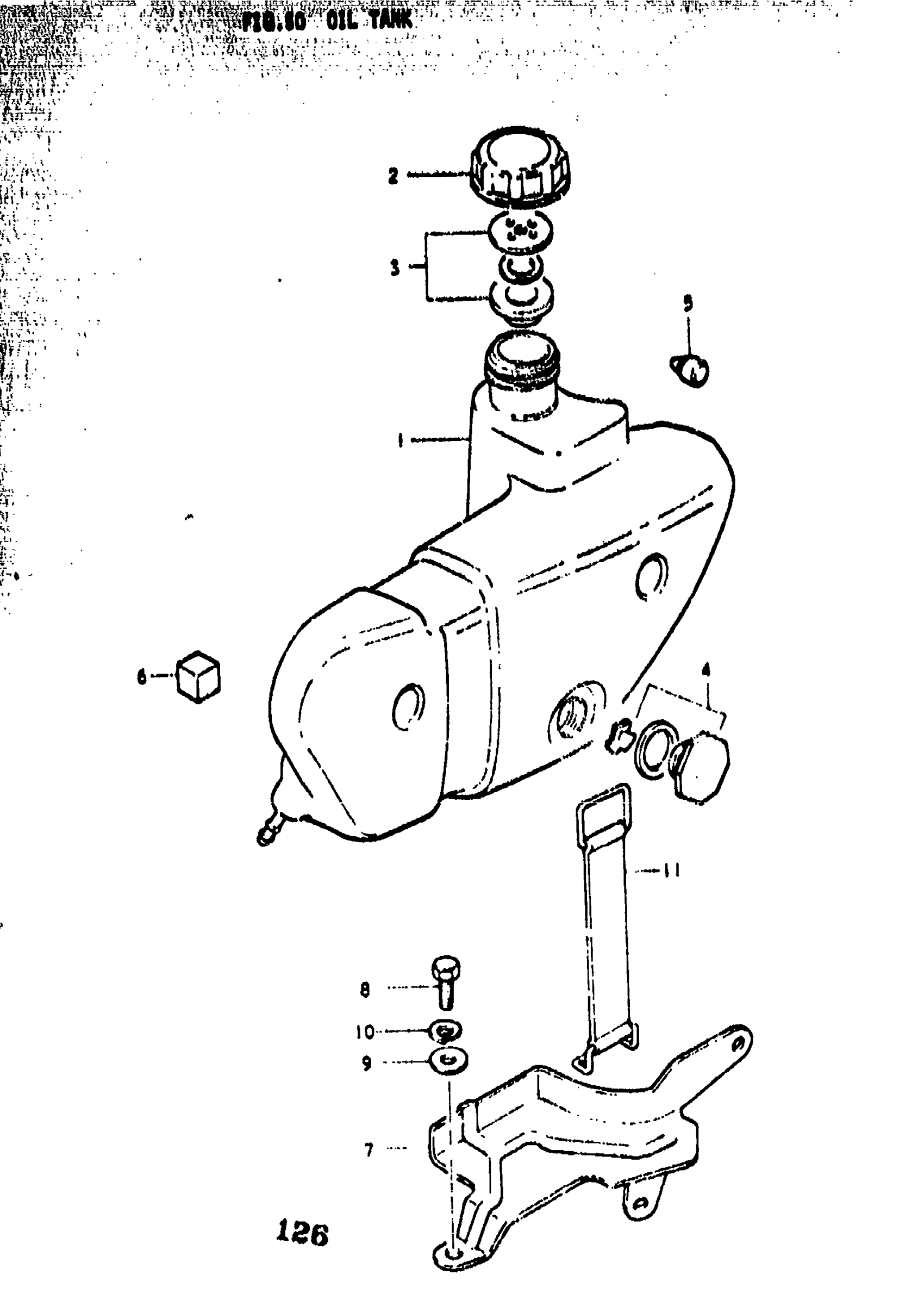

Find the part on the Oil Tank diagram for your 1977 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TS400 Oil Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

44611-32000

1
Out of stock

2

CAP, OIL TANK | FROM 44651-05000 This part replaces 44651-05001.

44651-05003

1
Out of stock

3

GASKET SET | K; TO 44600-35820 This part replaces 44660-33808.

44600-30833

1
Out of stock

3

GASKET SET | L,M,A,B; FROM 44600-35820 This part replaces 44600-35821.

44600-30833

1
Out of stock

4

OIL LEVEL INSPE | K; TO 44600-31830 This part replaces 44640-31807.

44600-31832

1
Out of stock

4

OIL LEVEL INSPE | L,M,A,B This part replaces 44600-31830.

44600-31832

1
Out of stock

5

CUSHION | K,M,A,B

09321-08013

1
Out of stock

6

STOPPER, OIL TANK | M,A,B

44629-32200

1
Out of stock

7

HOLDER, OIL TANK

44820-32000

1
Out of stock

8

BOLT This part replaces 01112-06128.

01500-06127

1
Out of stock

9

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

1
Out of stock

11

BAND

09462-00005

1
Out of stock
