1977 Suzuki TS400 Muffler Diagram

← All diagrams

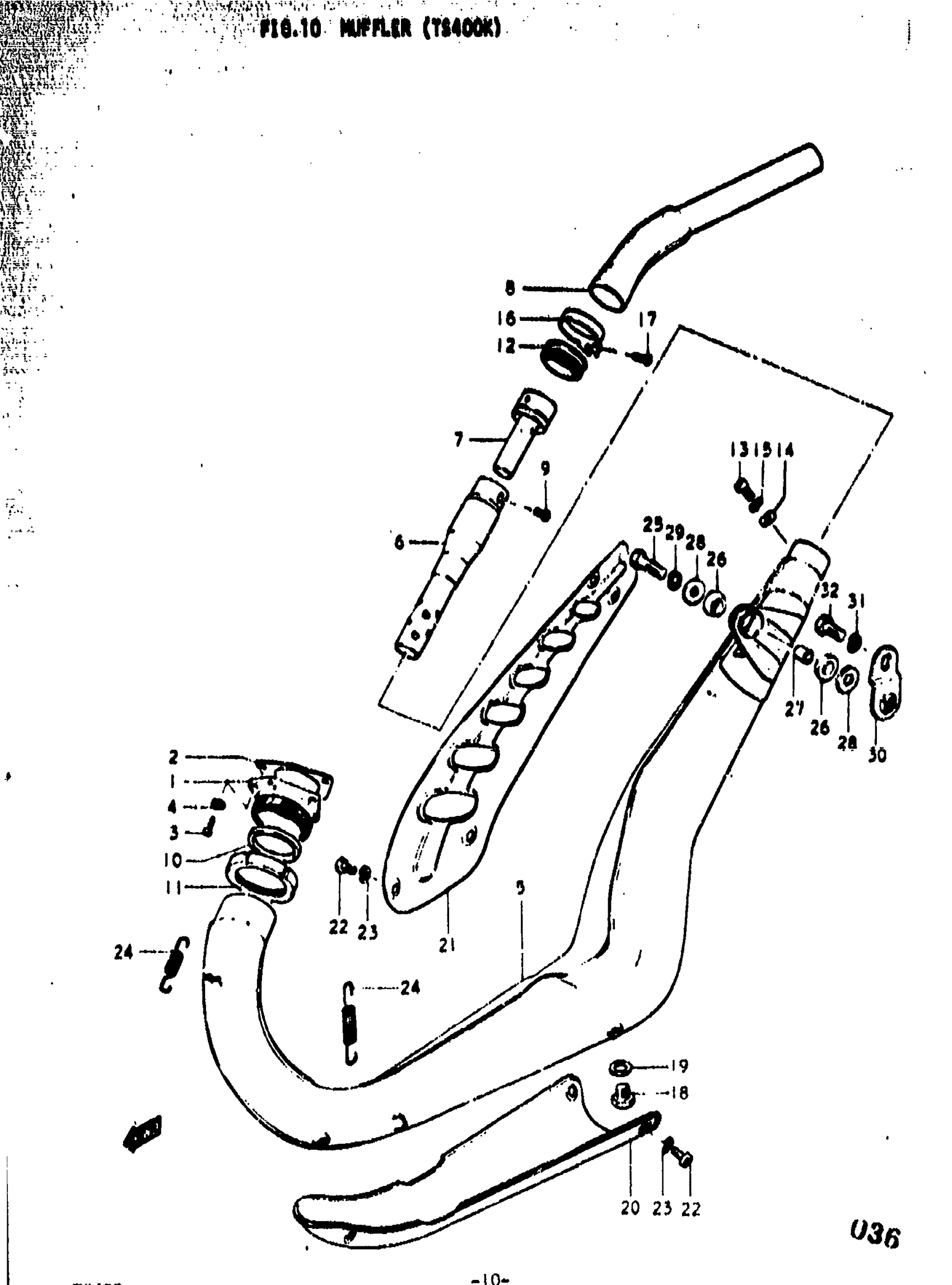

Find the part on the Muffler diagram for your 1977 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TS400 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLANGE, EXHAUST PIPE

14170-32000

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 14181-16500.

14181-16501

1
Out of stock

3

SCREW This part replaces 02112-06208.

02112-06207

3
Out of stock

4

3

$2.28

In stock

5

NO DESCRIPTION AVAILABLE | Includes Item(s) 6 - 9 This part replaces 14301-32600.

14301-32600-H01

1
Out of stock

6

ARRESTOR, SPARK

14810-32600

1
Out of stock

7

TUBE, CLEAN OUT

14850-32600

1
Out of stock

8

PIPE, MUFFLER TELL

14630-32000

1
Out of stock

9

2

$1.55

In stock

10

GASKET, EXHAUST PIPE

14182-16480

1
Out of stock

11

CLAMP, EXHAUST PIPE | TO 14183-16400

14183-32000

—
Out of stock

12

GASKET, TALL PIPE

14634-32000

1
Out of stock

13

SCREW This part replaces 02111-05127.

02112-05127

2
Out of stock

14

GASKET, BOTTLE PIPE | 4.5x12x2.5

09168-04002

2
Out of stock

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

16

CLAMP (2) | TO 09402-58306 This part replaces 09402-00226.

09402-58306

1
Out of stock

17

SCREW This part replaces 02111-04208.

02112-0420A

1
Out of stock

18

PLUG, MUFFLER DRAIN

09247-10001

1
Out of stock

19

GASKET, DRAIN PLUG | 10x14.2x2

09168-10002

1
Out of stock

20

COVER, MUFFLER LOWER

14782-32000

1
Out of stock

21

COVER, SIDE This part replaces 14781-32001.

14781-32200

1
Out of stock

22

SCREW This part replaces 02111-06087.

02112-06087

8
Out of stock

23

8

$2.28

In stock

24

SPRING, MUFFLER

09443-11002

5
Out of stock

25

BOLT This part replaces 01122-08408.

01500-0840A

1
Out of stock

26

CUSHION

09320-12018

2
Out of stock

27

SPACER (8.2X12.5X23.5) | 8.2x12.5x23.5 This part replaces 09180-08057.

09180-08227

1
Out of stock

28

WASHER (8.5X22X2) | 8.7x22x2 This part replaces 09160-08007.

09160-08127

2
Out of stock

29

1

$2.28

In stock

30

BRACKET, MUFFLER HANGER | TO 14470-32001

14470-32000

—
Out of stock

31

1

$2.28

In stock

32

BOLT, LH | 8x14 This part replaces 09100-08067.

09100-08143

1
Out of stock
