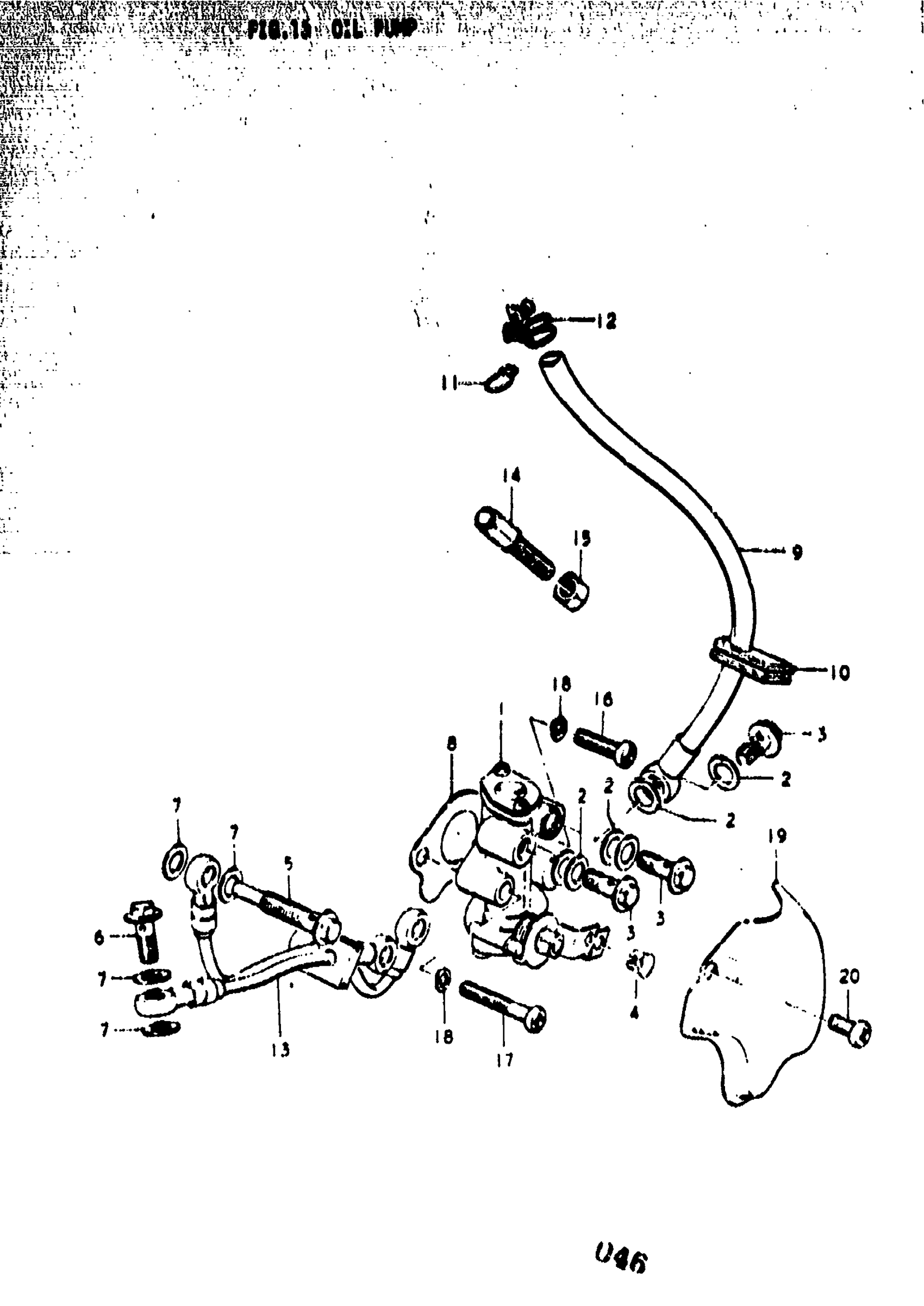

Suzuki TS400 (1977) OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY | K,L,M; FROM 16100-32810

16100-32011

Unavailable

1

OIL PUMP ASSY | A,B

16100-32210

Unavailable

2

GASKET

09168-06004

$1.49

3

UNION BOLT

09360-06003

$3.76

4

TERMINAL, CABLE This part replaces 16292-03110.

16292-03112

$5.05

5

UNION BOLT, CYLINDER

09360-06009

$6.83

6

UNION BOLT

09360-06003

$3.76

7

GASKET

09168-06004

$1.49

8

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

9

HOSE, OIL INLET

16810-32030

Unavailable

10

GROMMET, INLET HOSE

09309-08009

Unavailable

11

CLIP | K

09401-08401

$1.54

12

OIL HOSE CLAMP | L,M,A,B This part replaces 09400-10301.

09400-10302

Unavailable

13

HOSE, OIL OUTLET

16820-16530

Unavailable

14

BOLT, CABLE AIJUSTER

09119-08014

$3.55

15

NUT This part replaces 08312-11088.

08310-00087

$2.13

16

SCREW This part replaces 02112-05168.

02112-05167

$1.97

17

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

COVER, OIL PUMP | K,L; TO 11385-32200 This part replaces 11385-16500.

11385-32200

Unavailable

19

COVER, OIL PUMP | M,A,B

11385-32200

Unavailable

20

SCREW This part replaces 02112-06108.

02112-06107

$1.49
