1977 Suzuki TS400 Magneto (K Diagram

← All diagrams

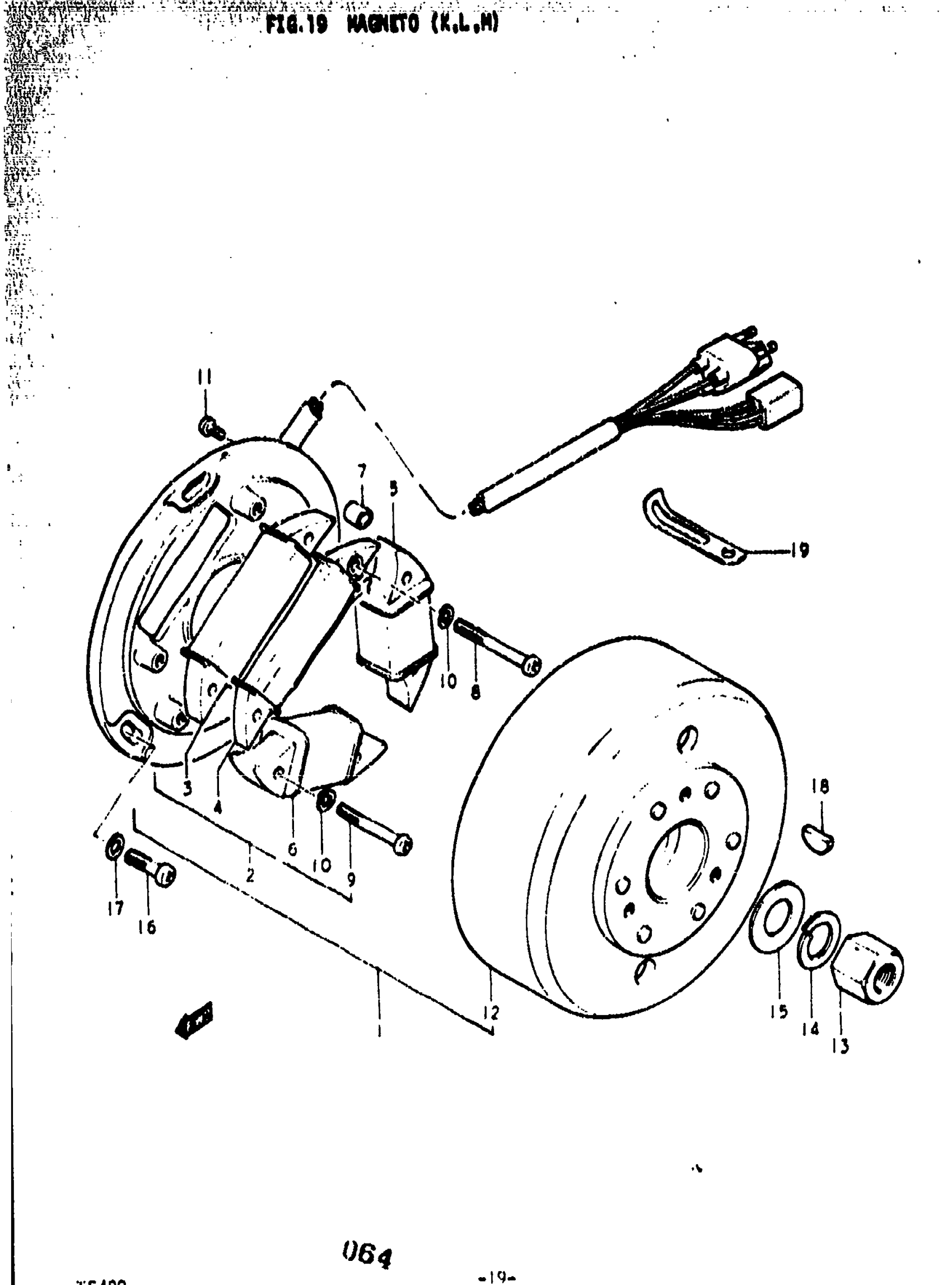

Find the part on the Magneto (K diagram for your 1977 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TS400 Magneto (K Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY, MAGNETO | 12V SAPPLY FROM 32100-32020; Includes Item(s) 2 - 12 This part replaces 32100-32021.

32101-32021

1
Out of stock

2

STATOR ASSY, MAGNETO | FROM 32101-32020

32101-32021

1
Out of stock

3

COIL, PRIMARY This part replaces 32140-32020.

32140-32021

1
Out of stock

4

COIL, PULSER

32150-32020

1
Out of stock

5

COIL, CHARGE A

32120-32020

1
Out of stock

6

COIL, CHARGE B

32121-32020

1
Out of stock

7

SPACER

32160-32020

2
Out of stock

8

SCREW This part replaces 02111-05357.

02112-05357

2
Out of stock

9

4

$2.23

In stock

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

6
Out of stock

11

2

$1.67

In stock

12

ROTOR | FROM 32102-32020

32102-32021

1
Out of stock

13

NUT

09140-14011

1
Out of stock

14

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

1
Out of stock

15

WASHER | 14.2x32x2

09160-14015

1
Out of stock

16

SCREW This part replaces 02112-05168.

02112-05167

3
Out of stock

17

WASHER This part replaces 08322-21058.

08322-01057

3
Out of stock

18

KEY This part replaces 08341-31049.

09420-04008

1
Out of stock

19

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock
