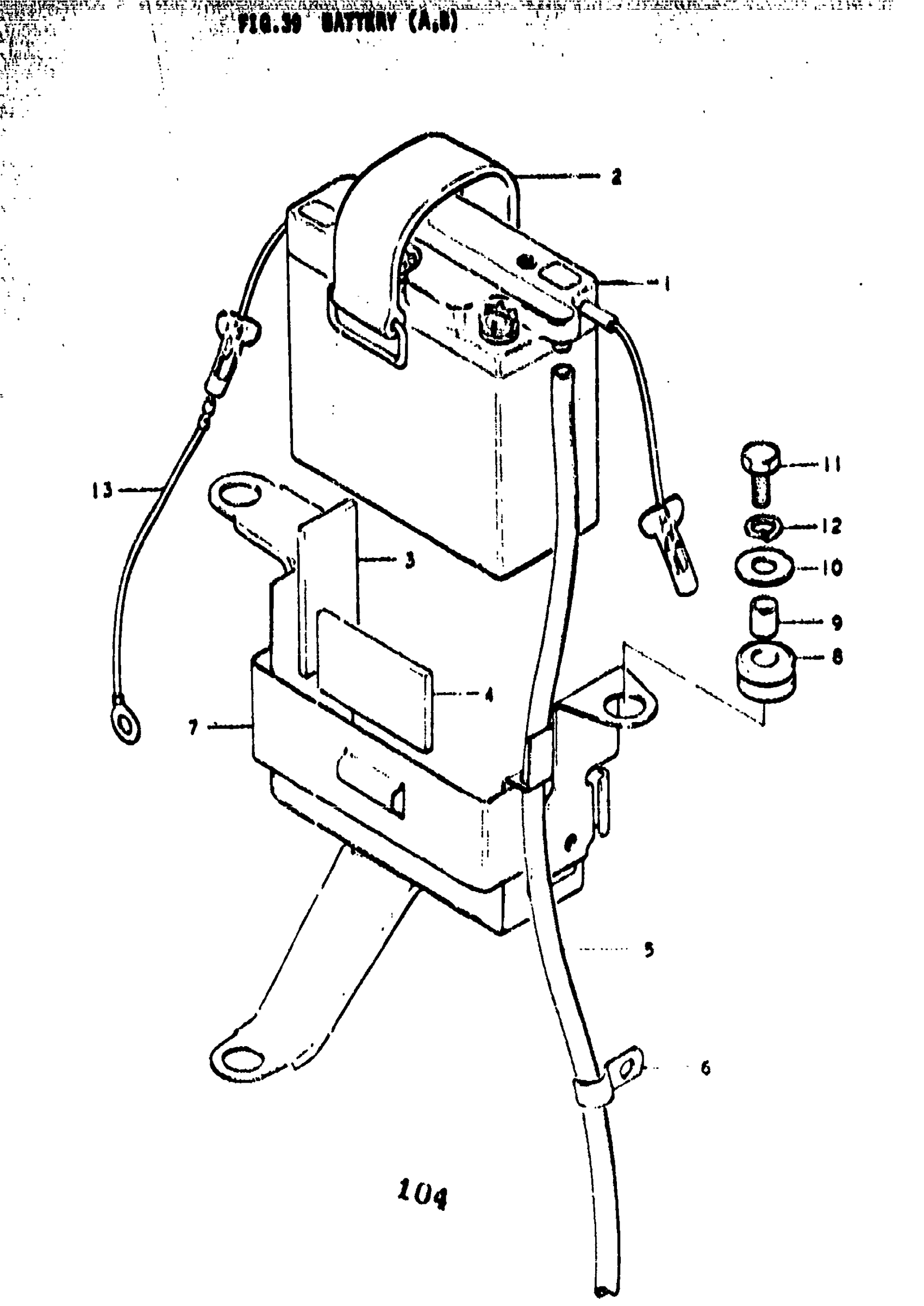

Suzuki TS400 (1977) BATTERY (A Diagram

#

Description
Price

1

6N4B-2A BATTERY | 6V, 4AH This part replaces 33610-32620.

33610-03611

$85.70

2

BAND

09462-00015

$12.07

3

NO DESCRIPTION AVAILABLE This part replaces 33651-25001.

94268-24A00

Unavailable

4

PROTECTOR

33652-36000

$2.87

5

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$7.65

6

CLAMP

09403-09306

Unavailable

7

HOLDER, BATTERY

41540-32600

Unavailable

8

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.70

9

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.46

10

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.89

11

BOLT | A This part replaces 01112-06208.

01500-06207

$1.99

11

BOLT, CANISTER | B This part replaces 01112-06168.

01500-06167

$1.97

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

13

LEAD CORD, BATTERY (-)

36862-27690

$5.88

14

LEAD CORD, BATTERY (+)

36861-27300

Unavailable
