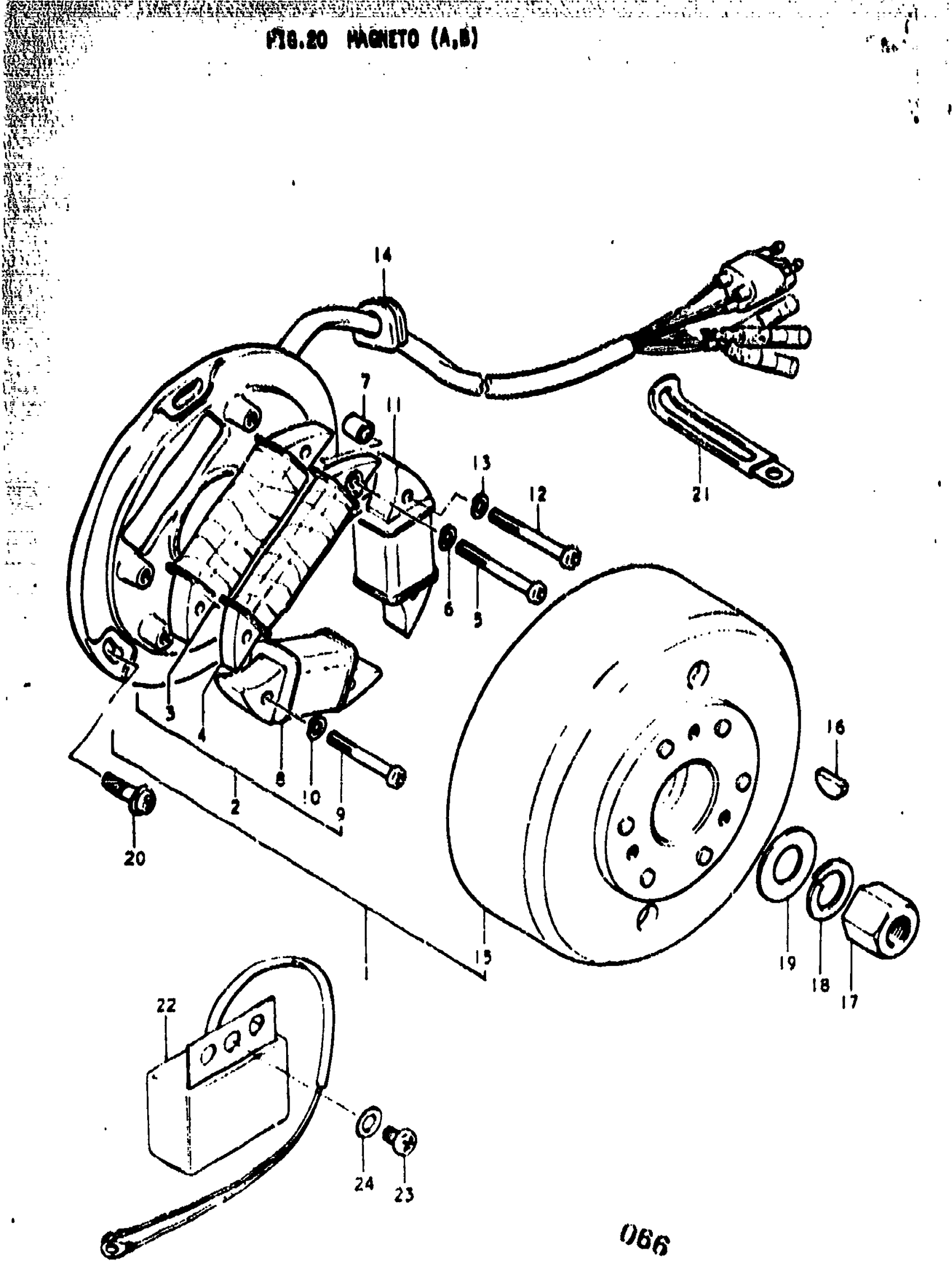

Suzuki TS400 (1977) MAGNETO (A Diagram

#

Description
Price

1

MAGNETO ASSY | 6V SAPPLY; Includes Item(s) 2 - 15

32100-32600

Unavailable

2

STATOR ASSY

32101-32600

Unavailable

3

COIL, PRIMARY This part replaces 32140-32020.

32140-32021

$152.07

4

COIL, PULSER

32150-32020

$130.87

5

SCREW This part replaces 02111-05357.

02112-05357

$1.49

6

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

7

SPACER

32160-32020

Unavailable

8

COIL, CHARGING This part replaces 32130-29612.

32130-30620

Unavailable

9

SCREW This part replaces 02111-05207.

02112-05207

$1.97

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

COIL, LIGHTING

32120-29612

Unavailable

12

SCREW This part replaces 02111-05357.

02112-05357

$1.49

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

GROMMET

32741-30020

Unavailable

15

ROTOR

32102-32600

Unavailable

16

KEY This part replaces 08341-31049.

09420-04008

$3.42

17

NUT

09140-14011

Unavailable

18

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.10

19

WASHER

09160-14015

Unavailable

20

SCREW

09139-05011

$2.38

21

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

22

REGULATOR, VOLTAGE

32500-25600

Unavailable

23

SCREW This part replaces 02111-06128.

02112-06127

$1.84

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13
