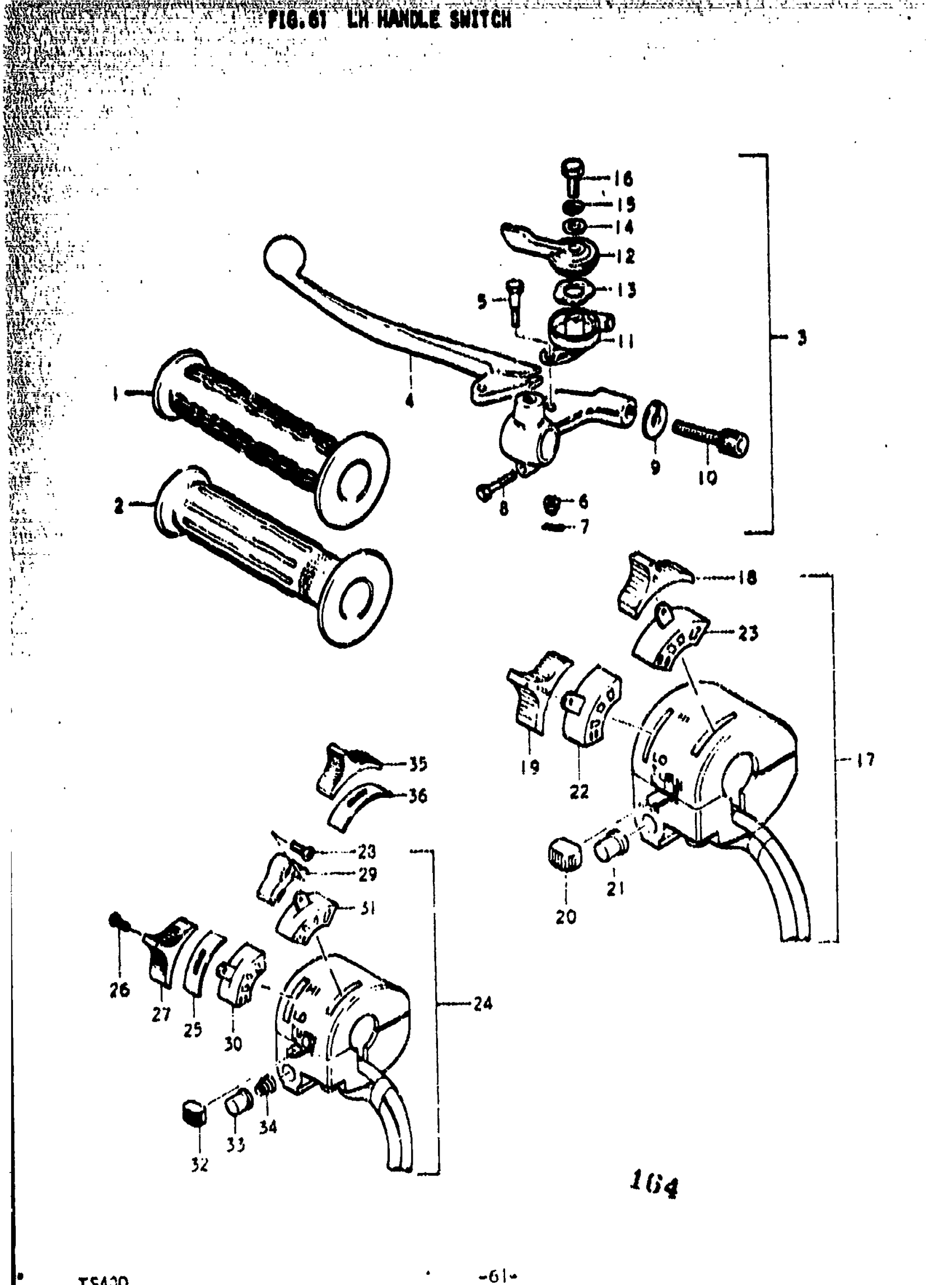

Suzuki TS400 (1977) LH HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH | K,L,M

57211-15110

Unavailable

2

GRIP, LH | A,B

57211-28600

$16.32

3

LEVER ASSY, CLUTCH | K

57500-32011

Unavailable

3

LEVER ASSY, CLUTCH | L; TO 57500-18012

57500-18610

Unavailable

3

LEVER ASSY, CLUTCH | M,A,B; Includes Item(s) 4 - 16 This part replaces 57500-18012.

57500-30501

Unavailable

4

LEVER, CLUTCH This part replaces 57620-31010.

57620-45010

Unavailable

5

BOLT This part replaces 57431-11010.

57431-11013

$6.31

6

NUT

57433-11010

$5.64

7

PIN This part replaces 04111-16158.

04111-1620A

$1.49

8

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

9

NUT

57442-11010

$2.79

10

ADJUSTER, CABLE

57441-11010

$5.62

11

BODY, STARTER LEVER | K This part replaces 58710-31010.

58710-31600

Unavailable

12

LEVER, STARTER | K

58721-03010

Unavailable

13

WASHER | K

58722-03010

$3.71

14

.WASHER (6.5X16X1) | K This part replaces 58723-03010.

09160-06129

$2.30

15

LOCK WASHER | K This part replaces 08321-21068.

08321-01067

$2.13

16

BOLT | K This part replaces 01112-06128.

01500-06127

$1.97

17

SWITCH ASSY, HANDLE LH | K; TO 57700-32051

57700-32050

Unavailable

17

SWITCH ASSY, HANDLE LH | L,M; TO 57700-32631; Includes Item(s) 18 - 23

57700-32630

Unavailable

18

KNOB, LIGHTING | K,L,M; FROM 57712-28050

57712-28051

Unavailable

19

KNOB, DIMMER | K,L,M

57713-28050

Unavailable

20

KNOB, TURN SIGNAL | K,L,M

57742-28050

Unavailable

21

BUTTON, HORN | K,L,M

57751-28050

Unavailable

22

BLOCK, DIMMER SWITCH SLIDING | K,L,M

57530-28051

Unavailable

23

BLOCK, LIGHTING SWITCH SLIDIN | KK

57730-28050

Unavailable

23

BLOCK, LIGHTING SWITCH SLIDIN | L,ML,M

57730-32610

Unavailable

24

SWITCH ASSY, HANDLE LH | A,B; Includes Item(s) 25 - 34

37400-28660

Unavailable

25

PLATE, DIMMER SWITCH | A,B This part replaces 57719-28050.

37422-28450

Unavailable

26

SCREW | A,B This part replaces 03221-03088.

03221-0308B

$2.10

27

KNOB, DIMMER | A,B

57713-28050

Unavailable

28

SCREW, LIGHTING | A,B

03231-03108

Unavailable

29

KNOB, STOP | A,B

37414-28660

Unavailable

30

BLOCK, DIMMER | A,B

57530-28051

Unavailable

31

BLOCK, LIGHTING | A,B

57730-28631

Unavailable

32

KNOB, TURN SIGNAL | A,B

57742-28050

Unavailable

33

BUTTON, HORN | A,B

57751-28050

Unavailable

34

SPRING | A,B

57761-28050

Unavailable

35

KNOB, LIGHTING SWITCH | A,B; OPT

57712-28052

Unavailable

36

NO DESCRIPTION AVAILABLE | A,B; OPT This part replaces 57714-28051.

37412-28450

Unavailable
