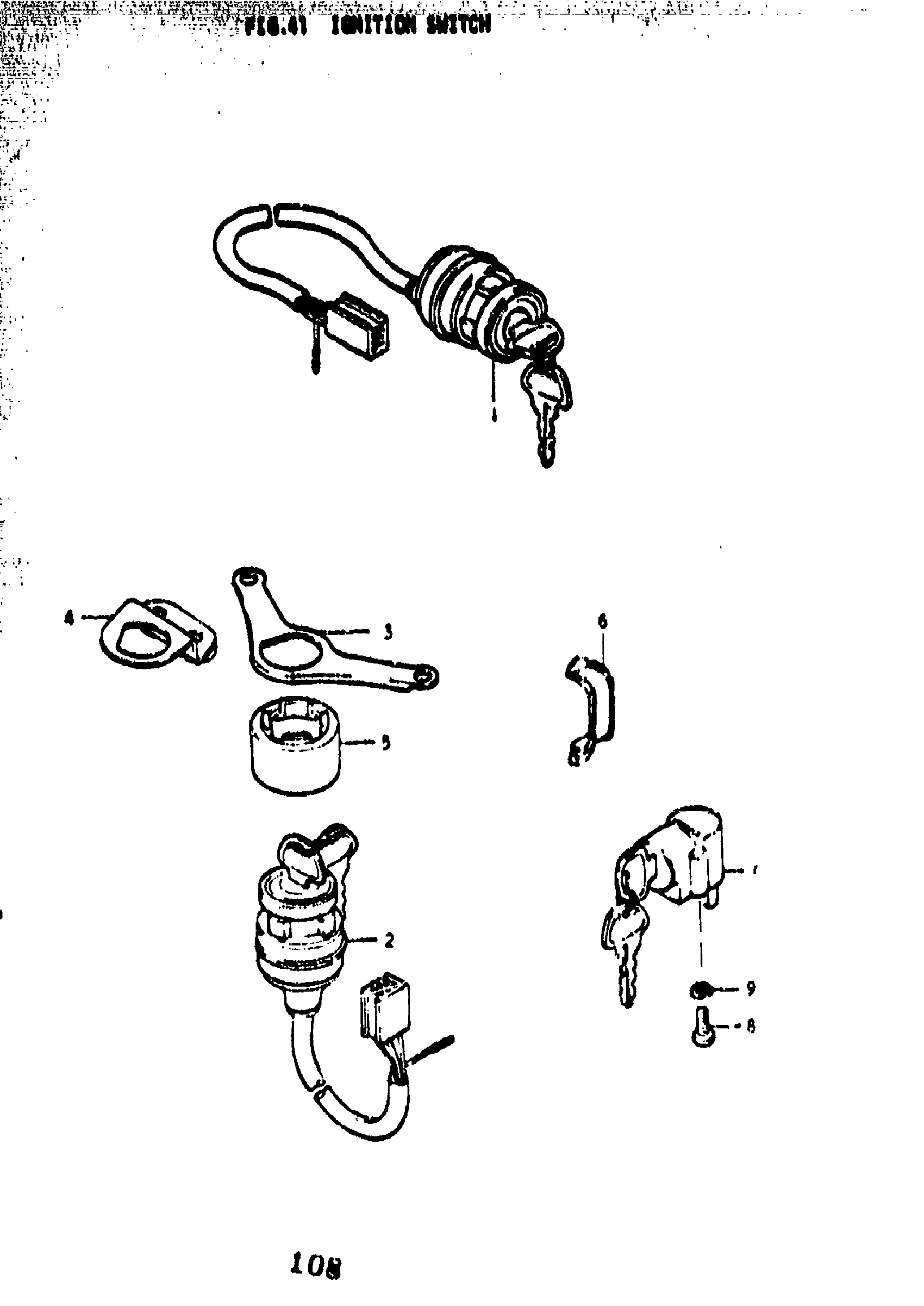

Suzuki TS400 (1977) IGNITION SWITCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K; TO 37110-32012 This part replaces 37110-32011.

37110-32018

Unavailable

2

SWITCH ASSY, IGNITION | L,M; FROM 37110-32012

37110-32013

Unavailable

2

NO DESCRIPTION AVAILABLE | A; FROM 37110-32013 This part replaces 37110-32011.

37110-32018

Unavailable

2

SWITCH ASSY, IGNITION | B; BLACK

37110-25315

Unavailable

3

BRACKET, IGNITION SWITCH | K,B This part replaces 37115-36000.

37115-36001

Unavailable

4

BRACKET, IGNITION SWITCH | L; TO 37115-32201

37115-32200

Unavailable

4

NO DESCRIPTION AVAILABLE | M,A This part replaces 37115-32201.

37115-32202

Unavailable

5

COVER, IGNITION SWITCH | K,L,M; TO 37128-36001

37128-36000

Unavailable

5

COVER, IGNITION SWITCH | A,B

37128-36001

Unavailable

6

CLAMP | M This part replaces 09403-09307.

09403-09328

$1.77

7

LOCK ASSY, STEERING This part replaces 50000-25837.

51910-25311

$40.33

8

SCREW This part replaces 02111-05127.

02112-05127

$1.97

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
