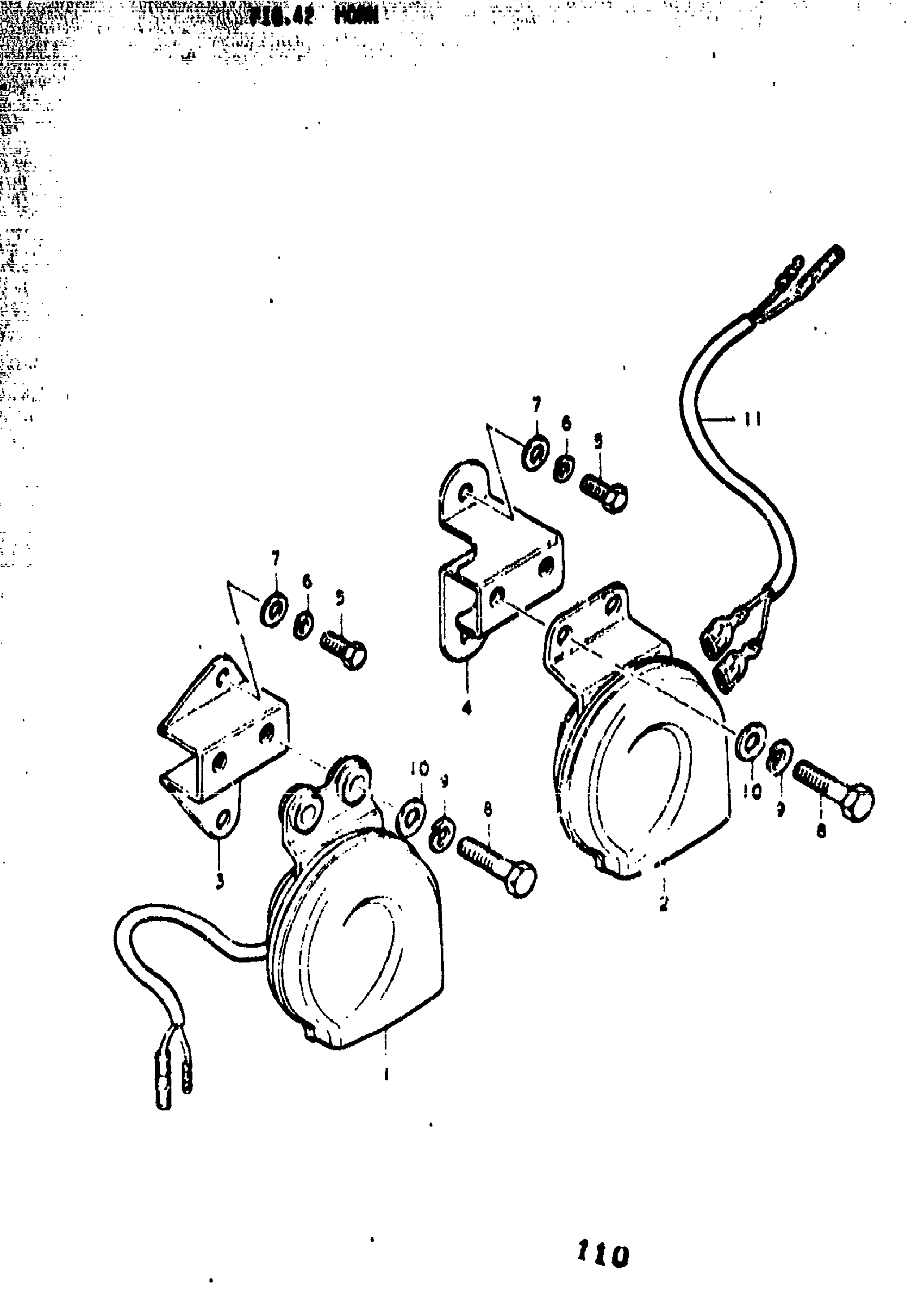

Suzuki TS400 (1977) HORN Diagram

#

Description
Price

1

HORN ASSY | K,L; TO 38500-11031 (WITH 36870-08030) This part replaces 38500-11030.

38500-11031

Unavailable

2

HORN | M; 12VA,B; 6V

38500-16431

Unavailable

3

PLATE, HORN | K

38590-32000

Unavailable

4

PLATE | L,M,A,B; TO 38590-30000 This part replaces 38590-32001.

38590-30000

Unavailable

5

SCREW This part replaces 02112-06128.

02112-06127

$1.84

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER | K,L This part replaces 08322-21068.

08322-01067

$2.13

8

BOLT | K This part replaces 01122-08258.

01500-08257

$2.50

8

BOLT | L,M,A This part replaces 01122-08358.

01500-0835B

$3.04

8

BOLT, REAR | B This part replaces 01122-08208.

01500-08207

$2.53

9

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

10

WASHER | K,L,M This part replaces 08322-21088.

08322-01087

$2.13

10

WASHER | B This part replaces 08322-11088.

08322-01087

$2.13

11

CORO, HORN LEAD | M

36870-08030

Unavailable
