1977 Suzuki TS400 Headlamp Diagram

← All diagrams

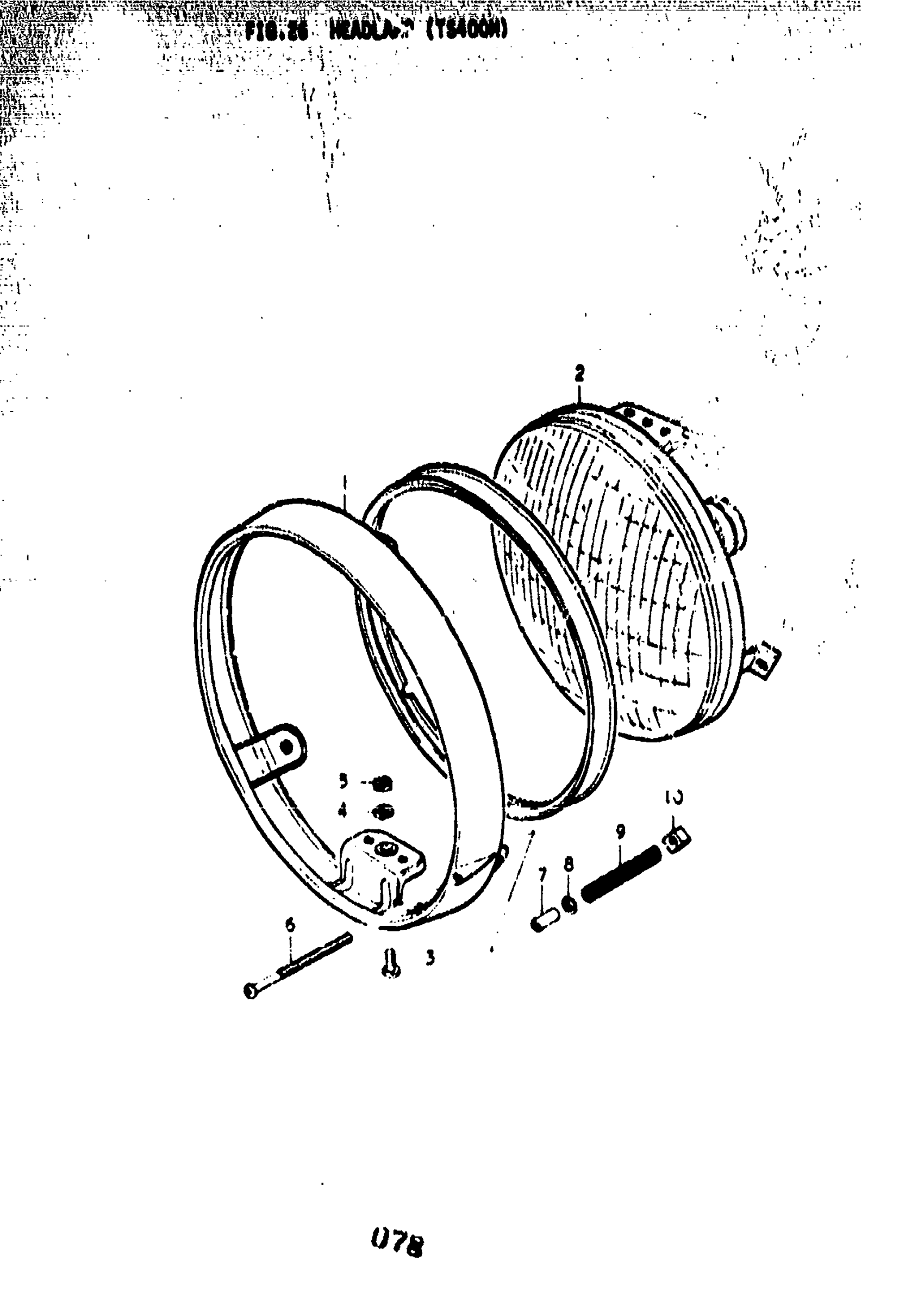

Find the part on the Headlamp diagram for your 1977 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TS400 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

HEADLAMP | Includes Item(s) 1 - 10

35100-36160

1
Out of stock

1

RIM

35111-33611

1
Out of stock

2

UNIT

35121-36160

1
Out of stock

3

SCREW

35181-15611

2
Out of stock

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

5

NUT This part replaces 08311-11048.

08310-00047

2
Out of stock

6

SCREW This part replaces 35151-33611.

35151-45900

1
Out of stock

7

SPACER

35165-31610

1
Out of stock

8

WASHER This part replaces 08322-21048.

08322-01047

1
Out of stock

9

SPRING

35154-33611

1
Out of stock

10

NUT

35152-15611

1
Out of stock
