1977 Suzuki TS400 Headlamp Housing Diagram

← All diagrams

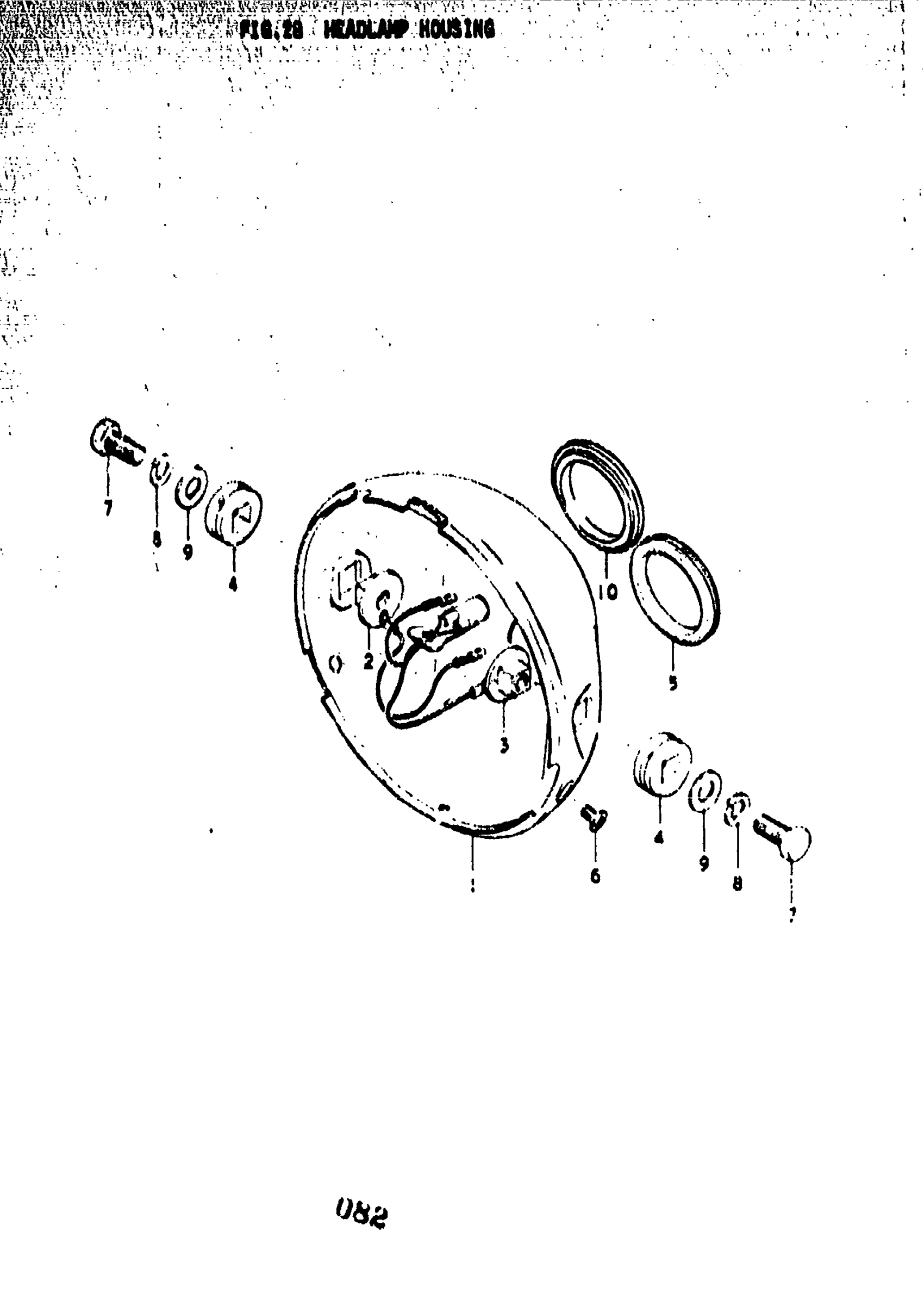

Find the part on the Headlamp Housing diagram for your 1977 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TS400 Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP | K,L

51810-30000

1
Out of stock

1

NO DESCRIPTION AVAILABLE | M This part replaces 51810-27300-126.

51810-27300-737

1
Out of stock

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 51810-27300-291.

51810-27300-737

1
Out of stock

2

SPACER, HEADLAMP HOUSING RH

51821-27301

—
Out of stock

3

SPACER, HEADLAMP HOUSING LH

51822-27301

—
Out of stock

4

CUSHION,HEADLAM This part replaces 51827-27301.

51827-27303

2
Out of stock

5

GROMMET | K,L; FROM 51845-31030M,A,B; FROM 51845-31030

51845-31031

1
Out of stock

6

SCREW This part replaces 02231-05128.

02122-05127

2
Out of stock

7

BOLT This part replaces 01221-08207.

01204-08207

2
Out of stock

8

2

$2.28

In stock

9

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

10

CAP, HEADLAMP HOUSING | K

09250-40001

1
Out of stock
