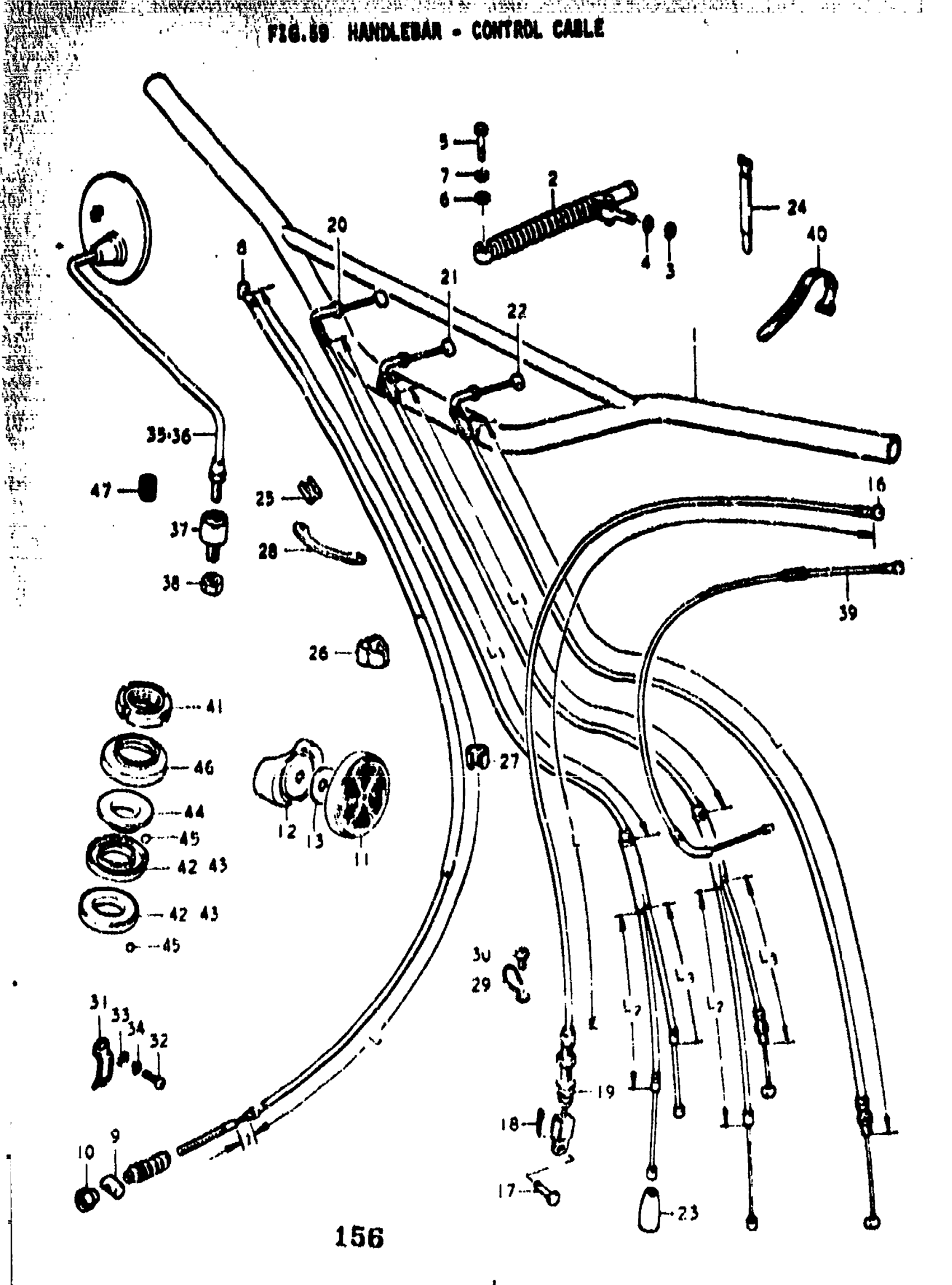

Suzuki TS400 (1977) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR | K; TO 56110-28301

56110-30000

Unavailable

1

HANDLEBAR | L,M,A,B; FROM 56110-32200 This part replaces 56110-32201.

56110-28001

Unavailable

2

DAMPER ASSY, HANDLE | K

51700-32000

Unavailable

3

CIRCLIP | K This part replaces 08332-11068.

08332-1106A

$1.49

4

WASHER | K This part replaces 08322-11088.

08322-01087

$2.13

5

BOLT | K This part replaces 01122-08308.

01500-08307

$3.04

6

WASHER | K This part replaces 08322-21088.

08322-01087

$2.13

7

.LOCK WASHER | K This part replaces 08321-21088.

08321-01087

$2.13

8

CABLE, FRONT BRAKE | K,L; TO 58110-30001 This part replaces 58110-30000.

58110-30002

Unavailable

8

CABLE, FRONT BRAKE | M,A,B This part replaces 58110-30001.

58110-30002

Unavailable

9

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

10

.NUT This part replaces 09150-06001.

09150-06010

$3.10

11

REFLEX REFLECTOR FRONT | K,L,M,A This part replaces 35950-31010.

35950-49080

$17.24

11

REFLEX REFLECTOR, FRONT | B

35950-45010

$17.09

12

SPACER | K,L,M,A

35995-29000

Unavailable

13

WASHER (6.5X20X1.2) | K,L,M,A This part replaces 09160-06027.

09160-06077

$1.91

14

WASHER | B This part replaces 08322-21058.

08322-01057

$2.13

15

LOCK WASHER | B This part replaces 08321-21058.

08321-0105A

$1.84

16

CABLE,CLUTCH | K; L:940, R:136.5 TO 58200-32100 This part replaces 58200-16501.

58200-32103

Unavailable

16

CABLE,CLUTCH | L,M,A,B; L:980, R:136.5 This part replaces 58200-32100.

58200-32103

Unavailable

17

COTTER PIN

09200-06011

Unavailable

18

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

19

DUST SEAL | K

09287-10001

Unavailable

20

CABLE,THROTTLE | K,L,M; TO 58300-32001 This part replaces 58300-32000.

58300-32004

Unavailable

21

CABLE,THROTTLE | A,B; L:700, L1:390, L2:200 This part replaces 58300-32601.

58300-32604

Unavailable

22

NO DESCRIPTION AVAILABLE | A,B; L:950, L:93 This part replaces 58300-32610.

58300-32613

Unavailable

23

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

24

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

25

CLIP | K,L,M

09408-00001

Unavailable

26

CLIP | A,B

09408-00014

Unavailable

27

CLIP

09408-00002

$2.30

28

GUIDE, CABLE | K,L,M,A

58621-28000

Unavailable

29

CLIP, CLUTCH CABLE | K,L,M

36619-28000

Unavailable

30

SCREW This part replaces 02112-06128.

02112-06127

$1.84

31

CLAMP, CABLE | K

09403-06301

Unavailable

32

SCREW | K This part replaces 02112-06128.

02112-06127

$1.84

33

WASHER | K This part replaces 08322-21068.

08322-01067

$2.13

34

LOCK WASHER | K This part replaces 08321-21068.

08321-01067

$2.13

35

MIRROR ASSY,RR | K,L; 8 SCREW This part replaces 56500-31010.

56500-23412

$70.29

35

MIRROR ASSY,RR | M,A,B; 10 SCREW This part replaces 56500-31011.

56500-31014

$48.02

36

MIRROR ASSY,RR | K,L; 8 SCREW This part replaces 56600-31010.

56600-23412

$82.68

36

MIRROR ASSY,RR | M,A,B; 10 SCREW This part replaces 56600-31011.

56600-31014

$48.02

37

CUSHION, REAR VIEW MIRROR | K,L; 8 SCREW

56700-32000

Unavailable

37

CUSHION, REAR VIEW MIRROR | M,A,B; 10 SCREW

56700-31000

Unavailable

38

NUT | K,L This part replaces 08311-31088.

08310-00087

$2.13

38

NUT | M,A,B This part replaces 08312-32108.

08310-00107

$2.19

39

CABLE, DECOMPRESSOR | K

58910-32000

Unavailable

42

RACE, INNER, LOWER | K,L This part replaces 51611-33001.

51611-33002

$13.81

40

BAND, WIRING HARNESS

09407-12402

$3.04

43

INNER RACE, STEERING | M,A,B; FROM 51611-33001

51611-33002

$13.81

41

NUT, STEARING STEM

51631-28000

$17.37

44

OUTER RACE, STEARING

51621-30001

Unavailable

45

STEEL BALL

06111-08003

$1.49

46

DUST SEAL

51643-30000

Unavailable

47

SPACER | K,L; 8 SCREW>10 SCREW

56741-31700

Unavailable
