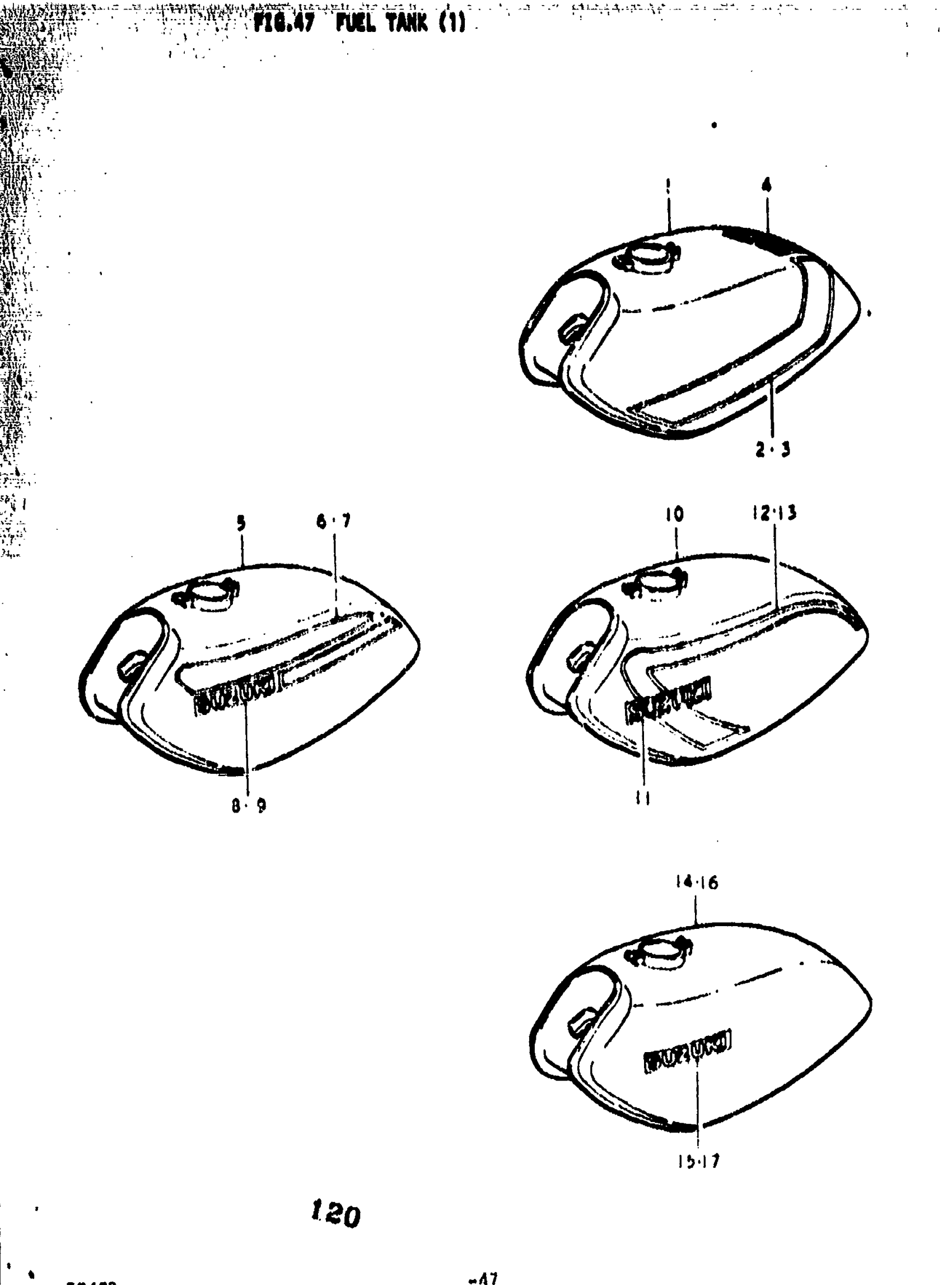

Suzuki TS400 (1977) FUEL TANK (1) Diagram

#

Description
Price

1

TANK ASSY, FUEL | K; TO 44100-30870-279; Includes Item(s) 2 - 4

44100-30840-279

Unavailable

2

NO DESCRIPTION AVAILABLE | K This part replaces 68115-30600-719.

68100-30830-719

Unavailable

3

NO DESCRIPTION AVAILABLE | K This part replaces 68125-30600-719.

68100-30830-719

Unavailable

4

TAPE, CENTER | K

68118-30000-719

Unavailable

5

NO DESCRIPTION AVAILABLE | L; Includes Item(s) 6 - 9 This part replaces 44110-30300-714.

44110-30300-737

Unavailable

6

NO DESCRIPTION AVAILABLE | L This part replaces 68115-30300-002.

68100-30840-002

Unavailable

7

NO DESCRIPTION AVAILABLE | L This part replaces 68125-30300-002.

68100-30840-002

Unavailable

8

EMBLEM,RH | L This part replaces 68111-30300-742.

68111-28400-742

Unavailable

9

EMBLEM,LH | L This part replaces 68121-30300-742.

68121-28400-742

Unavailable

10

TANK, FUEL | M; TO 44110-30640-737; Includes Item(s) 11 - 13

44110-30630-60C

Unavailable

11

NO DESCRIPTION AVAILABLE | M This part replaces 68111-26610-019.

68111-27610-019

Unavailable

12

NO DESCRIPTION AVAILABLE | M This part replaces 68115-30610-994.

68100-30850-994

Unavailable

13

NO DESCRIPTION AVAILABLE | M This part replaces 68125-30610-994.

68100-30850-994

Unavailable

14

NO DESCRIPTION AVAILABLE | A; Includes Item(s) 15 This part replaces 44110-30641-00N.

44110-30641-737

Unavailable

15

EMBLEM | A; FROM 68111-41001-538

68111-25610-538

Unavailable

16

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 17 This part replaces 44110-30650-03J.

44110-30641-737

Unavailable

17

EMBLEM | B This part replaces 68111-28610-064.

68111-43400-13L

Unavailable
