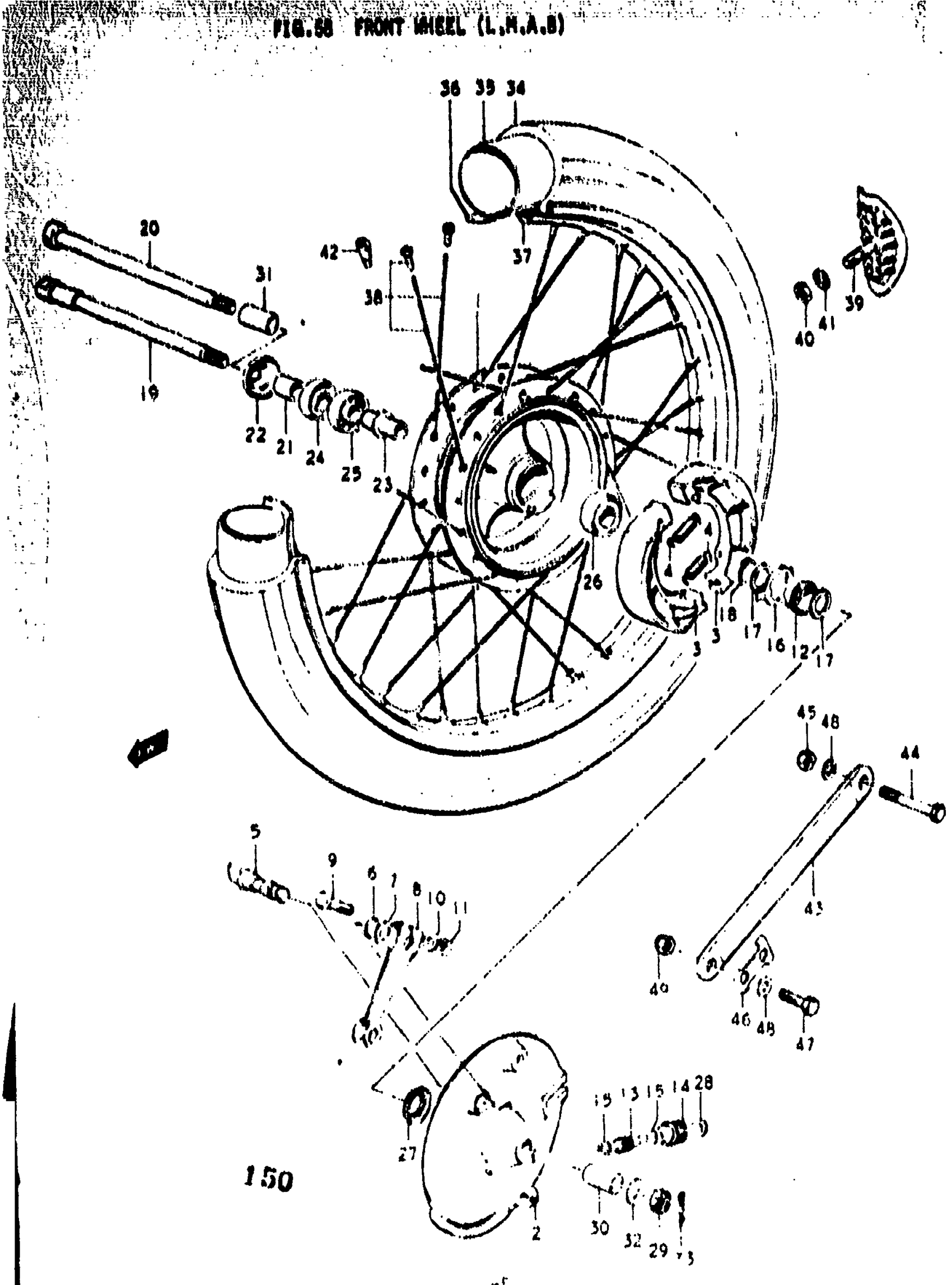

Suzuki TS400 (1977) FRONT WHEEL (L Diagram

#

Description
Price

1

DRUM | L,M,A

54110-30000

Unavailable

1

DRUM | B; BLACK

54110-30600

Unavailable

2

NO DESCRIPTION AVAILABLE | L,M,A This part replaces 54200-30830.

54210-30003

Unavailable

2

PANEL | B; BLACK

54210-30600

Unavailable

3

SHOE SET, REAR BRAKE This part replaces 54410-08002.

64400-02830

$55.17

4

SPRING

55420-30000

$4.48

5

CAM, BRAKE | L

54440-30001

Unavailable

5

CAM, REAR BRAKE | M,A,B FROM 54440-30001 This part replaces 54440-08001.

54440-08004

$27.62

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

NO DESCRIPTION AVAILABLE This part replaces 54451-30000.

54451-30001

Unavailable

9

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

GEAR, SPEEDOMETER (NT:24) | NT:24 This part replaces 54611-30301.

54611-30302

Unavailable

13

GEAR, SPEEDOMETER DRIVEN | NT:8

54621-30300

Unavailable

14

BUSH This part replaces 54632-11020.

54632-49200

Unavailable

15

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

16

DRIVER This part replaces 54660-11030.

54660-11031

$12.67

17

WASHER

09160-22001

$2.47

18

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

19

AXLE, FRONT | L; TO 54711-33002 WITH 09180-15034

54711-30701

Unavailable

20

AXLE,FRONT | M,A,B This part replaces 54711-33002.

54711-3300V

Unavailable

21

SPACER, RH

09180-15018

Unavailable

22

COVER, DUST SEAL

54892-33000

Unavailable

23

SPACER, BEARING

54730-08100

Unavailable

24

OIL SEAL | 22x33x10

09284-22001

Unavailable

25

BEARING

08113-60020

$16.01

26

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

27

SEAL,OIL(26X38X | 26x35x6 This part replaces 09285-26001.

09285-26005

Unavailable

28

OIL SEAL | 48x10x4

09289-06001

$4.58

29

NUT This part replaces 08314-31128.

08314-3112A

$2.41

30

SPACER, RH

09180-15035

Unavailable

31

SPACER, LH | M,A,B

09180-15037

Unavailable

32

WASHER This part replaces 08322-21128.

08322-01127

$1.84

33

PIN This part replaces 04111-30308.

04111-3030A

$1.49

34

TIRE | 3.00-31 FROM 55100-30310

55100-30600

Unavailable

35

TIRE, FRONT | 3.00-21 This part replaces 55200-16510.

55200-16511

$36.73

36

PROTECTOR, INNER TUBE | 25X21 This part replaces 55261-16510.

55261-14540

$3.83

37

RIM, WHEEL | L,M; 1.60Ax21

55311-30700

Unavailable

37

RIM, WHEEL | A,B; TAKASAGO

55311-30600

Unavailable

38

SPOKE SET | FOR TAKASAGO RIM

55300-30809

Unavailable

39

STOPPER, BEAD | L,M; 1.858 This part replaces 65270-30001.

65270-43D00

$58.75

39

STOPPER, BEAD | A,B

65270-28600

$54.75

40

NUT This part replaces 08312-11088.

08310-00087

$2.13

41

WASHER This part replaces 08322-11088.

08322-01087

$2.13

42

BALANCER, WHEEL | L,M

55411-30000

Unavailable

43

TORQUE LINK, FRONT

54311-30700

Unavailable

44

BOLT

09100-08086

Unavailable

45

NUT This part replaces 08319-11088.

08319-2108A

$2.12

46

WASHER

53312-16501

Unavailable

47

BOLT

09100-08013

Unavailable

48

WASHER This part replaces 08322-11088.

08322-01087

$2.13
