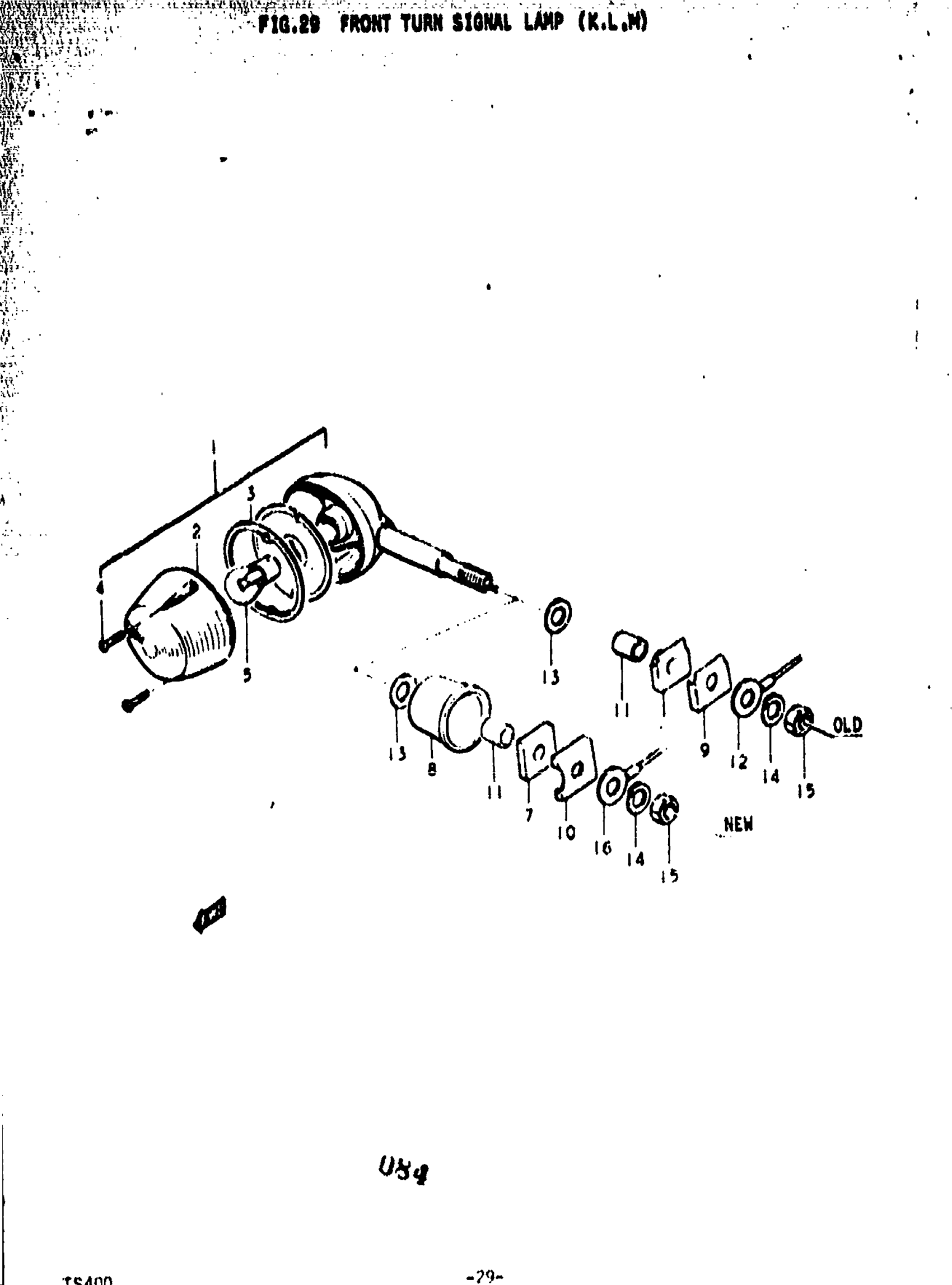

Suzuki TS400 (1977) FRONT TURN SIGNAL LAMP (K Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | FROM 35601-18660-999; Includes Item(s) 2 - 5

35601-18660

Unavailable

2

LENS

35612-12611

$12.50

3

GASKET

35613-03610

$13.34

4

SCREW This part replaces 02133-03167.

02132-03167

$1.49

5

BULB | 12V, 32CP

09471-12006

$3.98

6

CUSHION (1) | K; TO 35690-30300

35690-32000

Unavailable

7

CUSHION (2) | L,M

35690-30300

Unavailable

8

CUSHION

35692-30000

Unavailable

9

PLATE, TURN SIGNAL | K; TO 35693-30300

35693-32000

Unavailable

10

PLATE, TURN SIGNAL | L,M

35693-30300

Unavailable

11

SPACER, TURN SIGNAL

35695-18660

Unavailable

12

PLATE, GROUND CORD | K,M

36660-33000

$4.52

13

WASHER, UPPER, OUTER | 10.5x30x1.6 This part replaces 09160-10006.

09160-10501

$2.33

14

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

15

NUT This part replaces 08312-11108.

08310-00107

$2.19

16

LEAD WIRE, FRONT GROUND | L,M

36660-33000

$4.52
