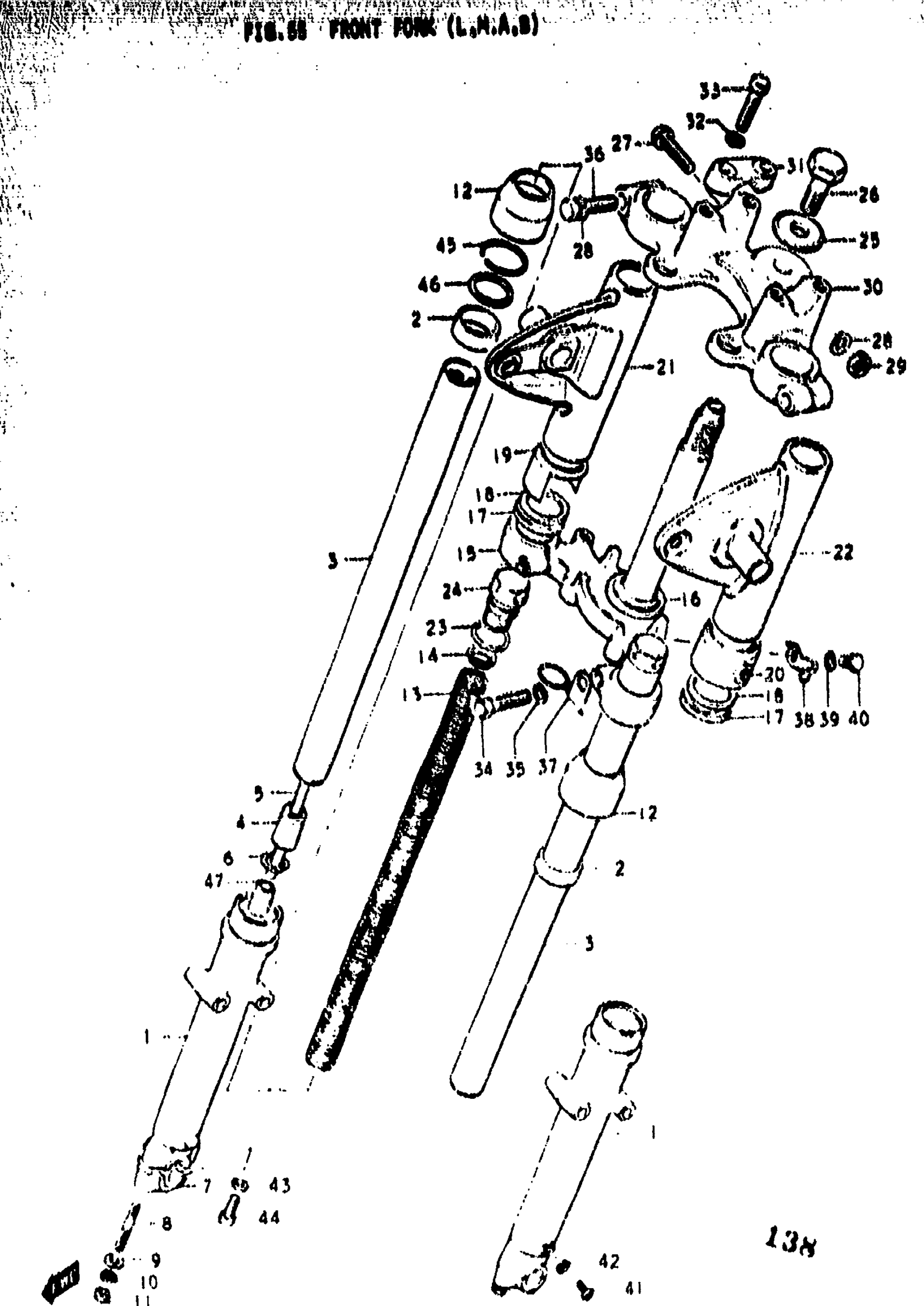

Suzuki TS400 (1977) FRONT FORK (L Diagram

#

Description
Price

0

FORK ASSY, FRONT | L; TO 51100-30310-126

51100-30310-019

Unavailable

0

FORK ASSY, FRONT | M; TO 51100-30311-126

51100-30310-126

Unavailable

0

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 1 - 32 This part replaces 51100-30311-291.

51106-30311

Unavailable

1

OUTER TUBE

51130-30700

Unavailable

2

OIL SEAL

51153-16511

Unavailable

3

INNER TUBE

51111-30310

Unavailable

4

PISTON | L,M

51112-16510

Unavailable

4

PISTON | A,B

51112-16511

Unavailable

5

CYLINDER | L,M

51146-30702

Unavailable

5

CYLINDER | A,B

51146-30703

Unavailable

6

RING | L,M

51118-16510

Unavailable

6

RING | A,B

51118-16511

Unavailable

7

HOLDER, FRONT AXLE

51132-16510

Unavailable

8

STUD BOLT (L:30) | L,M This part replaces 51137-31010.

09108-08142

$3.18

8

STUD BOLT (L:30) | A,B This part replaces 01421-08308.

09108-08142

$3.18

9

WASHER This part replaces 08322-21088.

08322-01087

$2.13

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

12

DUST SEAL

51173-18510

Unavailable

13

SPRING

51171-30601

Unavailable

14

GUIDE, SPRING | A,B

51172-34110

Unavailable

15

STEERING STEM

51410-30601

Unavailable

16

OUTER RACE, LOWER

51621-33001

$16.25

17

GUIDE, COVER

51558-30010

Unavailable

18

CUSHION, COVER GUIDE

51553-30010

Unavailable

19

COVER, STEERING STEM RH

51554-30011

Unavailable

20

COVER, STEERING STEM LH

51557-30011

Unavailable

21

BRACKET, HEADLAMP RH | L; CHROME-PLATED

51530-30611

Unavailable

21

NO DESCRIPTION AVAILABLE | M This part replaces 51530-30612-126.

51500-30830-126

Unavailable

21

NO DESCRIPTION AVAILABLE | A,B This part replaces 51530-30612-291.

51500-30830-126

Unavailable

22

BRACKET, HEADLAMP LH | L; CHROME-PLATED

51540-30611

Unavailable

22

NO DESCRIPTION AVAILABLE | M; CHROME-PLATED This part replaces 51540-30612-126.

51500-30830-126

Unavailable

22

NO DESCRIPTION AVAILABLE | A,B This part replaces 51540-30612-291.

51500-30830-126

Unavailable

23

O RING

51117-16310

Unavailable

24

CAP This part replaces 51351-30010.

51351-40210

Unavailable

25

WASHER | L,M

51356-22011

Unavailable

25

WASHER | A,B

51356-22012

$6.80

26

BOLT This part replaces 51351-20010.

51351-29400

$31.22

27

BOLT

51451-15010

Unavailable

28

.LOCK WASHER | LM,A,B This part replaces 08321-21088.

08321-01087

$2.13

29

NUT This part replaces 08312-12108.

08310-00107

$2.19

30

STEERING STEM HEAD

51311-30210-019

Unavailable

31

HOLDER, HANDLEBAR | L,M,A

56211-27720-019

Unavailable

31

CLAMP, HANDLEBAR UPPER | B This part replaces 56211-27210-019.

56211-29320-291

$15.51

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

33

BOLT This part replaces 01221-08357.

01204-08357

$2.09

34

BOLT, STEERING | FROM 51451-28011

51451-28012

Unavailable

35

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

36

BOLT | FROM 51451-15112; Includes Item(s) 37 - 47 This part replaces 51451-15113.

01104-10388

$2.72

37

CLIP, CABLE | L; FROM 51455-28012

51455-28012

Unavailable

37

CLIP, CABLE | M,A,B

51455-36010

Unavailable

38

CLIP

51453-30011

Unavailable

39

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

40

SCREW This part replaces 02112-06108.

02112-06107

$1.49

41

SCREW This part replaces 02111-04087.

02112-04087

$1.49

42

GASKET

51183-03010

$2.07

43

GASKET

51148-16510

Unavailable

44

BOLT

51147-16510

$4.34

45

SNAP RING | M,A,B

51156-16510

Unavailable

46

WASHER | M,A,B

51115-16510

Unavailable

47

PIECE, OIL LOCK | A,B This part replaces 51195-32111.

51195-38010

Unavailable
