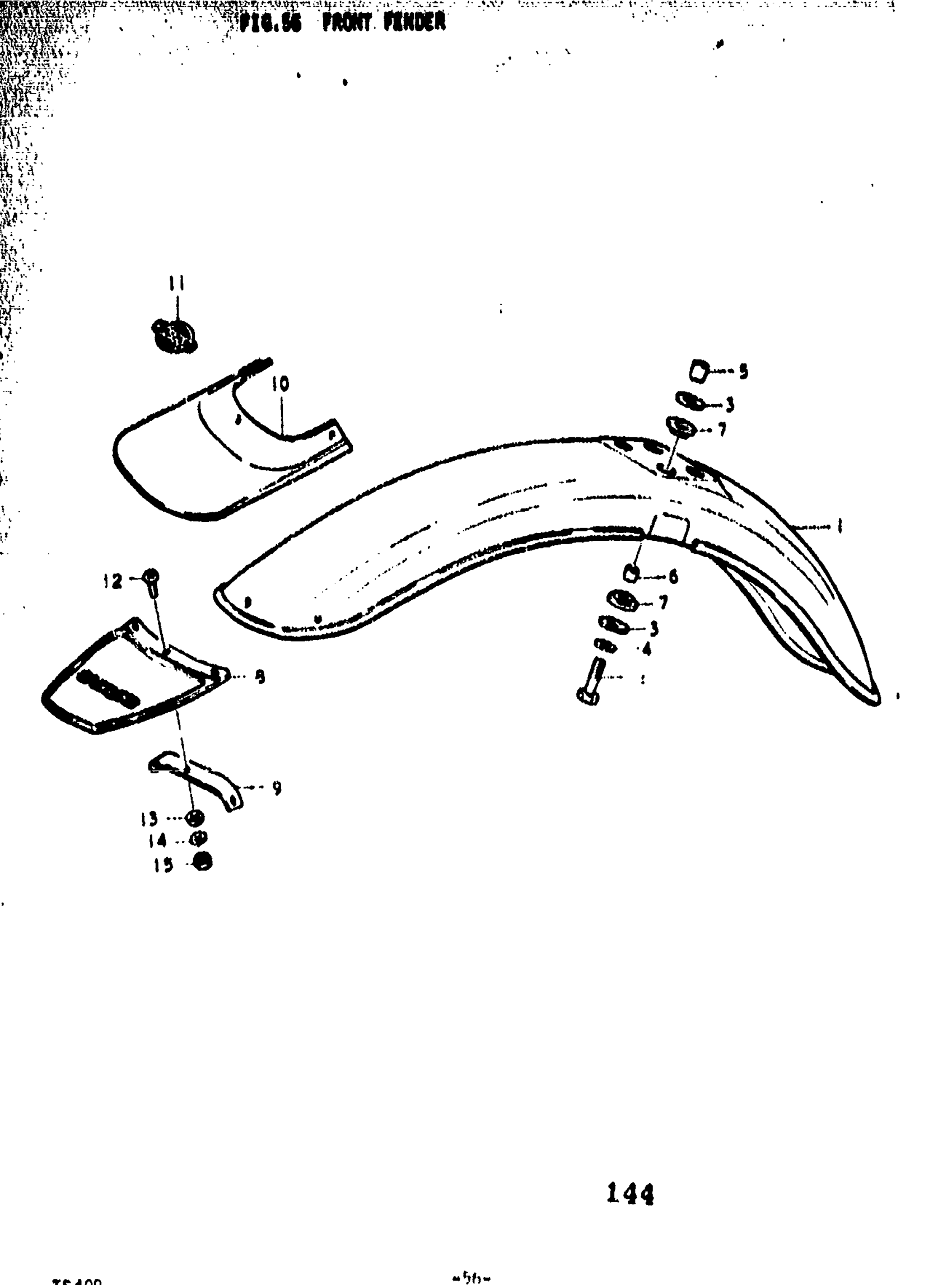

Suzuki TS400 (1977) FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K; TO 53111-28300-279 This part replaces 53111-30600-279.

53111-30600-737

Unavailable

1

NO DESCRIPTION AVAILABLE | L This part replaces 53111-32200-714.

53111-32202-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | M This part replaces 53111-32200-737.

53111-32202-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | A; TO 53111-32200-189 This part replaces 53111-32600-189.

53111-32202-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | B This part replaces 53111-32200-189.

53111-32202-13L

Unavailable

2

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

3

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

$2.03

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

SPACER | K,L,M,A

09180-08058

Unavailable

5

SPACER,8.5X12X1 | B This part replaces 09180-08048.

09180-08302

$2.19

6

SPACER This part replaces 09180-06046.

09180-06292

$2.47

7

CUSHION

09320-10003

$2.38

8

FLAP, MUD | K,L,M; OPT

53411-30000

Unavailable

9

PLATE, MUD FLAP | K,L,M; OPT

53421-28600

Unavailable

10

FLAP, MUD | A,B; OPT STD

53411-28600

Unavailable

11

EMBLEM | A,B; OPT STD

99801-08810

Unavailable

12

SCREW | K,L,M; OPT STDA,B; OPT STD This part replaces 02111-04127.

02112-0412A

$1.49

13

WASHER | K,L,M; OPT STDA,B; OPT STD This part replaces 08322-21048.

08322-01047

$1.86

14

LOCK WASHER | K,L,M; OPT STDA,B; OPT STD This part replaces 08321-21048.

08321-0104A

$1.84

15

NUT | K,L,M; OPT STDA,B; OPT STD This part replaces 08311-11048.

08310-00047

$2.23
