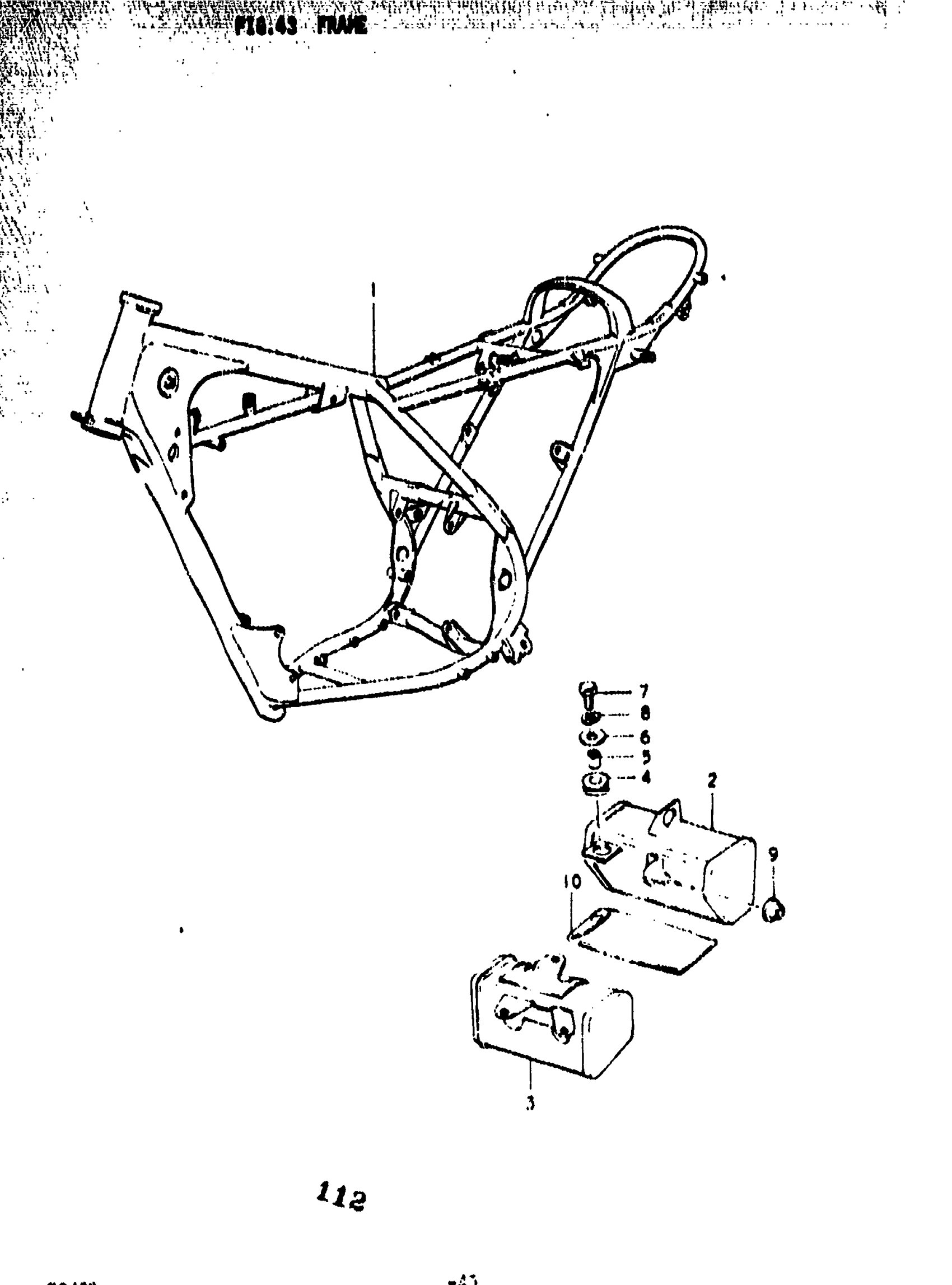

Suzuki TS400 (1977) FRAME Diagram

#

Description
Price

1

FRAME | K

41100-32000-019

Unavailable

1

FRAME | L,M; TO 41100-32201-019

41100-32200-019

Unavailable

1

FRAME | A

41100-32201-019

Unavailable

1

FRAME | B

41100-32701-019

Unavailable

2

BOX, TOOL | K

41550-32002

Unavailable

3

BOX, TOOL | L,M,A,B

41550-32200

Unavailable

4

CUSHION (8.5X20X8) | K This part replaces 09320-08007.

09320-08510

$1.97

5

CUSHION (8.5X20X8) | L,M,A,B This part replaces 09320-08007.

09320-08510

$1.97

5

SPACER (6.5X9X7) | KL,M,A,B; 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

6

WASHER (6.5X20X1.2) | KL,M,A,B; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

7

BOLT | KL,M,A This part replaces 09128-06006.

09128-06057

$1.65

7

BOLT | B This part replaces 01112-06208.

01500-06207

$2.28

7

LOCK WASHER | K This part replaces 08321-21068.

08321-01067

$2.13

8

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

9

CUSHION | K

09320-05005

Unavailable

10

TOOL ASSY | FROM 09800-00123 This part replaces 09800-00146.

09800-21028

$33.02
