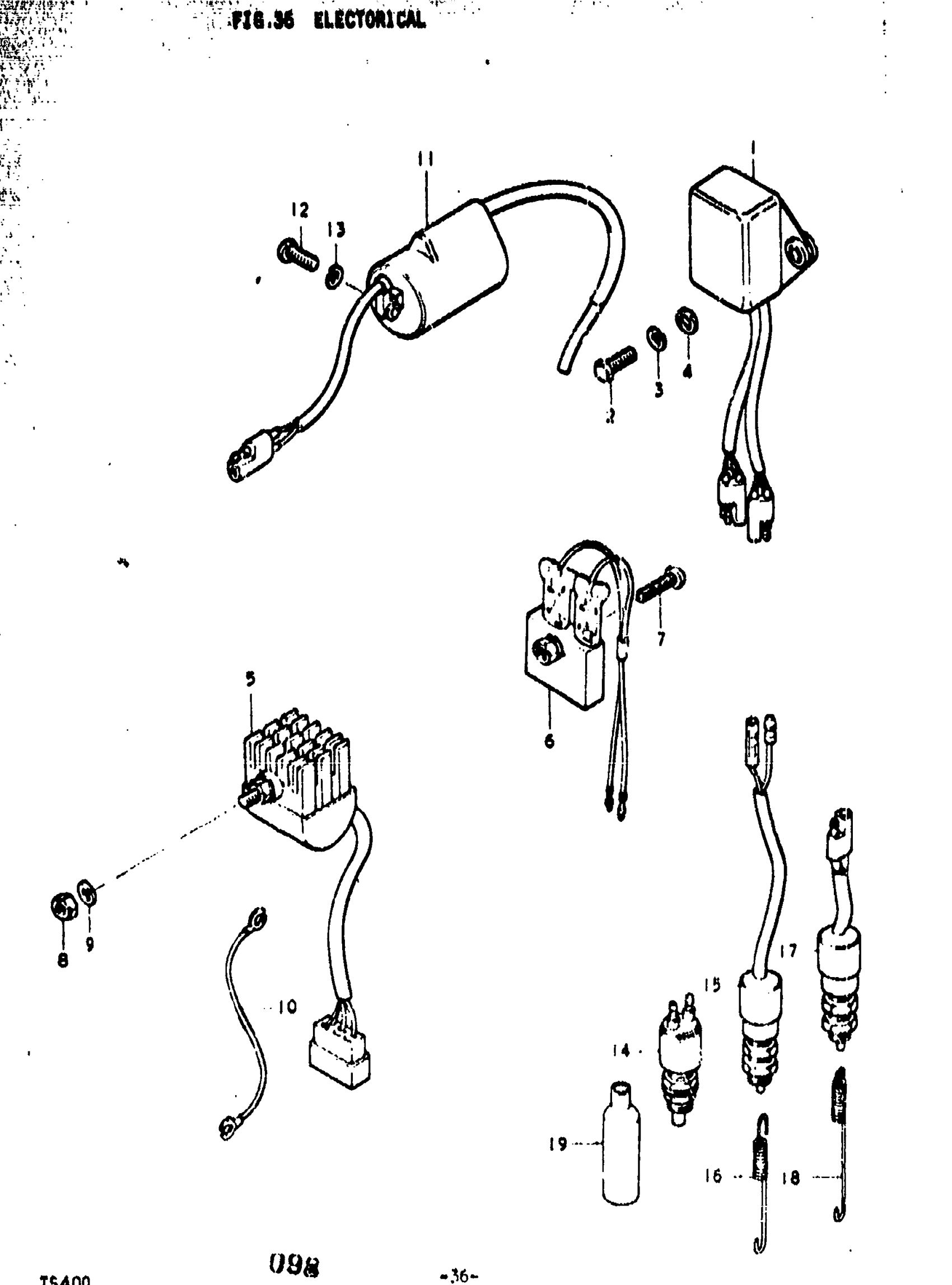

Suzuki TS400 (1977) ELECTRICAL Diagram

#

Description
Price

1

UNIT, C.D.IGNITION

31900-32020

Unavailable

2

BOLT This part replaces 09128-06006.

09128-06057

$1.65

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

WASHER | (WITH 36852-26600) This part replaces 08322-21068.

08322-01067

$2.13

5

RECTIFIER ASSY | K,L,M; FROM 32800-31010

32800-31021

Unavailable

6

DIODE | AM,B This part replaces 32800-19062.

32800-16A00

$23.07

7

SCREW | AM,B This part replaces 02112-05168.

02112-05167

$1.97

8

.NUT | K,L,M This part replaces 08311-11068.

08310-00067

$2.13

9

LOCK WASHER | K,L,M

08321-11068

Unavailable

10

LEAD WIRE, ENGINE (-) | K,L,M This part replaces 36852-26600.

36851-02331

Unavailable

11

COIL ASSY, IGNITION This part replaces 33410-30020.

33410-14120

$115.17

12

SCREW This part replaces 02111-05207.

02112-05207

$1.97

13

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

14

SWITCH ASSY, BRAKE LAMP | AM,B

37610-53011

$30.75

15

SWITCH ASSY, BRAKE LAMP | K

37740-37051

Unavailable

16

SPRING | K

09443-06016

$3.30

17

SWITCH, REAR BRAKE LAMP | L; TO 37740-19051 This part replaces 37740-27051.

37740-48071

$19.18

17

SWITCH, REAR BRAKE LAMP | M This part replaces 37740-19051.

37740-48071

$19.18

18

SPRING | L,M,AM,B

09443-06019

$3.42

19

BOOT | AM,B

36618-37000

Unavailable
