CRANKSHAFT

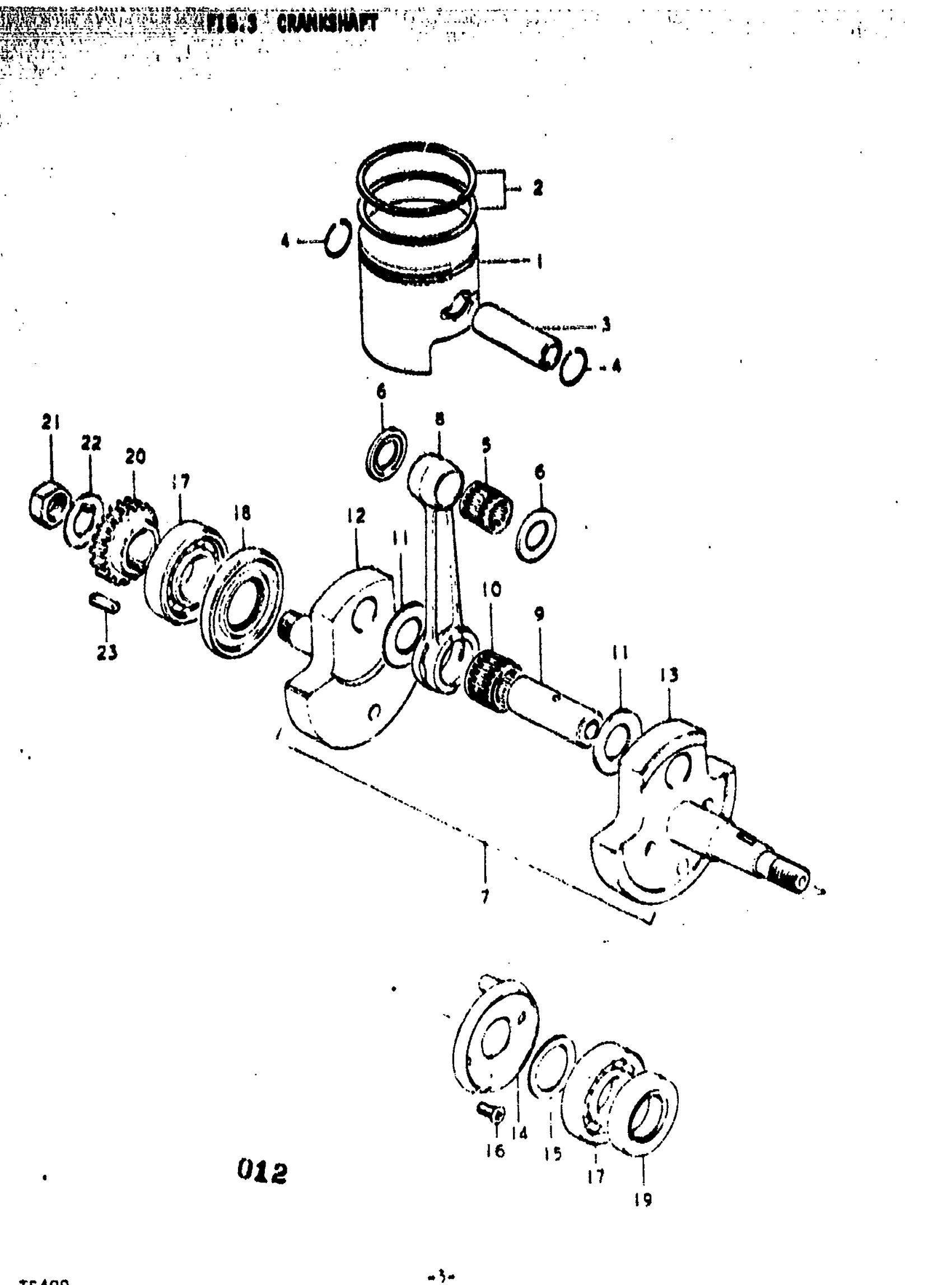

Suzuki TS400 (1977) CRANKSHAFT Diagram
#
Description
Price
1
PISTON | K; TO 12110-16501 This part replaces 12110-32000.
12110-16501
Unavailable
1
PISTON | L; TO 12110-16501 This part replaces 12110-32200.
12110-16501
Unavailable
1
PISTON | M,A,B
12110-16501
Unavailable
1
PISTON | K; OS:0.5 TO 12110-16730
12110-16720
Unavailable
1
NO DESCRIPTION AVAILABLE | L,M,A,B; OS:0.5 This part replaces 12110-16730.
12110-16501-050
Unavailable
2
RING SET, PISTON
12140-16510
Unavailable
2
NO DESCRIPTION AVAILABLE | OS:0.5 This part replaces 12140-16700.
12140-16510-050
Unavailable
3
PIN This part replaces 12151-16500.
12151-32400
Unavailable
7
CRANKSHAFT SET | K
12001-32803
Unavailable
7
CRANKSHAFT SET | L,M,A,B; Includes Item(s) 8 - 13
12200-32810
Unavailable
8
CONNECTING ROD | K
12161-16500
Unavailable
8
CONNECTING ROD | L,M,A,B
12161-32200
Unavailable
9
PIN, CRANK
12211-16500
Unavailable
10
BEARING | K
09263-26002
Unavailable
10
BEARING | L,M,A,B
09263-26003
Unavailable
11
THRUST WASHER | K; 26x44x1
09160-26001
Unavailable
11
THRUST WASHER | L,M,A,B
09160-26004
Unavailable
12
CRANKSHAFT, RH | K
12221-32000
Unavailable
12
CRANKSHAFT, RH | L,M,A,B
12221-32200
Unavailable
13
CRANKSHAFT, LH | K
12261-32000
Unavailable
13
CRANKSHAFT, LH | L,M,A,B
12261-32200
Unavailable
14
PLATE, OIL GUIDE
12511-16500
Unavailable
18
OIL SEAL, RH | K; TO 09289-40004 This part replaces 09283-40004.
09289-40004
Unavailable
18
OIL SEAL, RH | L,M,A,B
09289-40004
Unavailable
20
GEAR, PRIMARY DRIVE | NT:23
21111-32000
Unavailable
21
NUT
09140-20007
Unavailable
22
WASHER | 20.5x43x1
09166-20004
Unavailable
23
KEY
09421-07001
Unavailable
