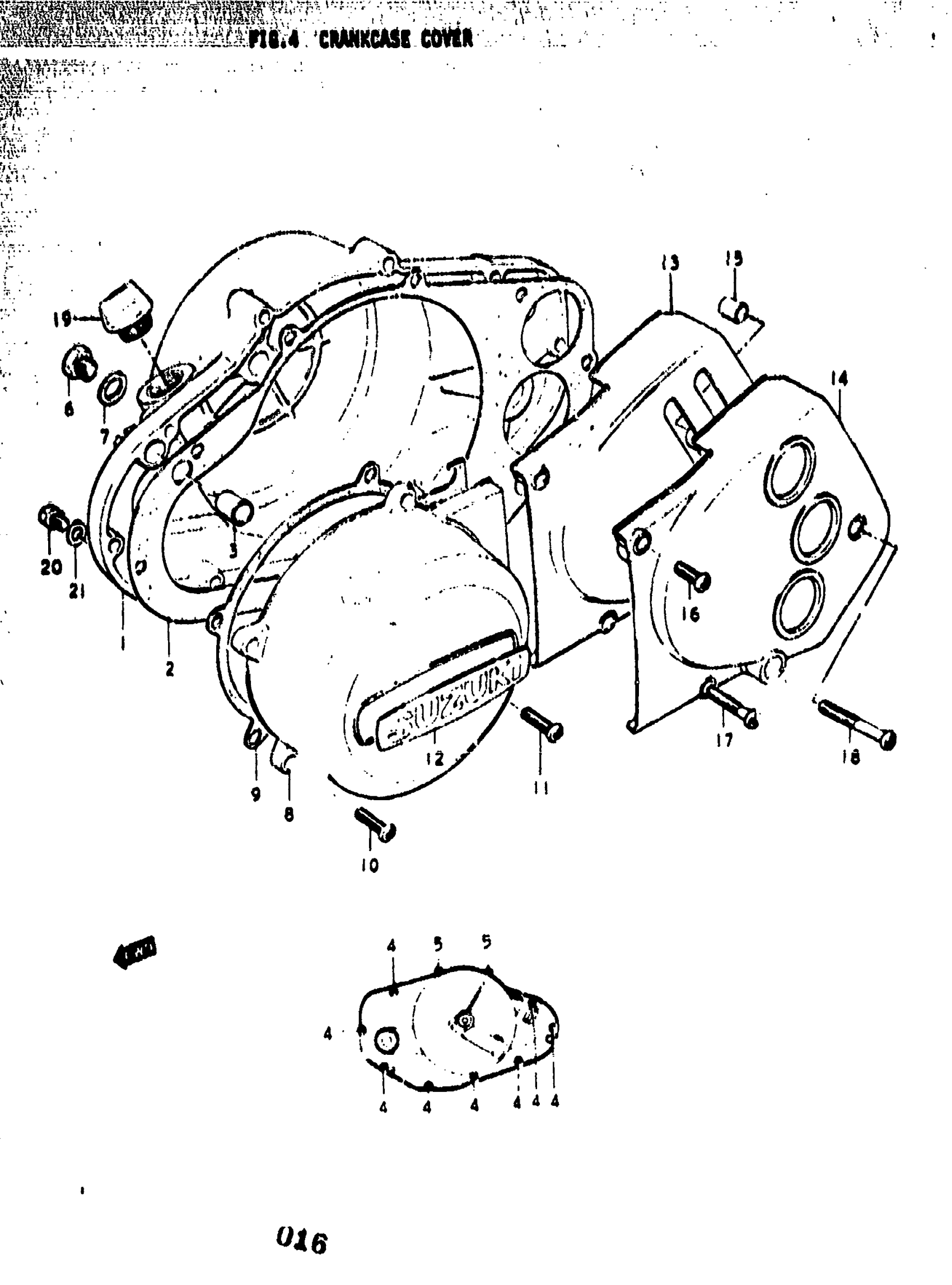

Suzuki TS400 (1977) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | K,A,B; BLACK

11341-16500

Unavailable

1

COVER, CLUTCH | L,M; WHITE

11341-32200

Unavailable

2

GASKET

11482-16500

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW

02112-06307

$1.97

5

SCREW This part replaces 02112-06358.

02112-06357

$1.78

6

PLUG, OIL DRAIN

09247-10001

$2.20

7

GASKET | 10x14.2x2

09168-10002

$2.13

8

COVER, MAGNETO | K,A,B; BLACK

11351-16500

Unavailable

8

COVER, MAGNETO | L,M; WHITE

11351-32200

Unavailable

9

GASKET

11483-16500

Unavailable

10

SCREW This part replaces 02112-06208.

02112-06207

$1.78

11

SCREW This part replaces 02112-06258.

02112-06257

$1.78

12

EMBLEM, MAGHETO COVER | K,L,M; TO 68233-32000

68233-16500

Unavailable

12

EMBLEM, MAGHETO COVER | A,B

68233-32000

Unavailable

13

COVER, ENGINE SPROCKET | K

11361-16500

Unavailable

14

COVER, ENGINE SPROCKET | L,M; WHITE

11361-32200

Unavailable

14

COVER, ENGINE SPROCKET | A,B; BLACK

11361-32300

Unavailable

15

DOWEL PIN

04211-09129

$1.65

16

SCREW This part replaces 02112-06258.

02112-06257

$1.78

17

SCREW This part replaces 02112-06358.

02112-06357

$1.78

18

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

19

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

20

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

21

GASET | 6.2x11x1

09168-06001

$1.49
