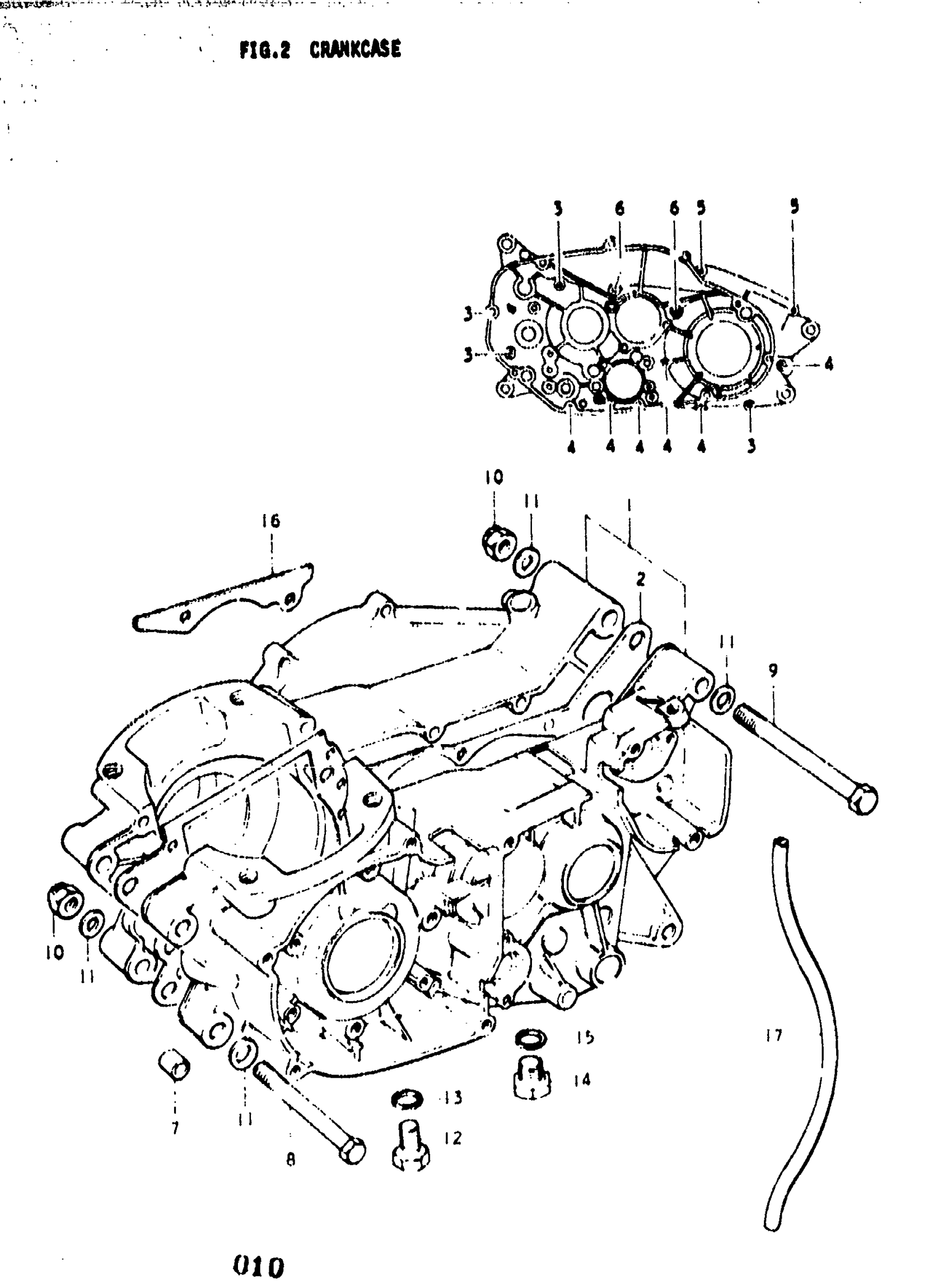

Suzuki TS400 (1977) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K,A; BLACK TO 11300-32821 This part replaces 11300-32820.

11300-32822

Unavailable

1

CRANKCASE SET | L,M; WHITE

11300-32810

Unavailable

1

NO DESCRIPTION AVAILABLE | B; BLACK; Includes Item(s) 2 - 7 This part replaces 11300-32821.

11300-32822

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-16500.

11481-16501

Unavailable

3

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

4

SCREW This part replaces 02112-06608.

02112-06607

$2.57

5

SCREW This part replaces 02112-06708.

02112-06707

$2.53

6

SCREW This part replaces 02112-06808.

02112-06807

$2.57

7

PIN This part replaces 09206-13001.

04211-13189

$2.19

8

BOLT This part replaces 01122-10908.

01550-10907

$6.05

9

NO DESCRIPTION AVAILABLE | 10x130 This part replaces 09100-10070.

09100-10280

Unavailable

10

NUT

09159-10011

$3.23

11

WASHER This part replaces 08322-11108.

08322-01107

$2.15

12

PLUG, DRAIN | K,L

09247-10001

$2.20

13

GASKET | K,L

09168-10002

$2.13

14

PLUG, DRAIN | K This part replaces 09247-14007.

09247-14025

$2.79

14

PLUG (MAGNETO) | L,M,A,B This part replaces 09247-14001.

09247-14002

$5.24

15

GASKET | 15.7x19.5x2

09168-14004

$1.83

16

PLATE, OIL RESERVOIR

24871-16500

Unavailable

17

HOSE

09344-05015

Unavailable
