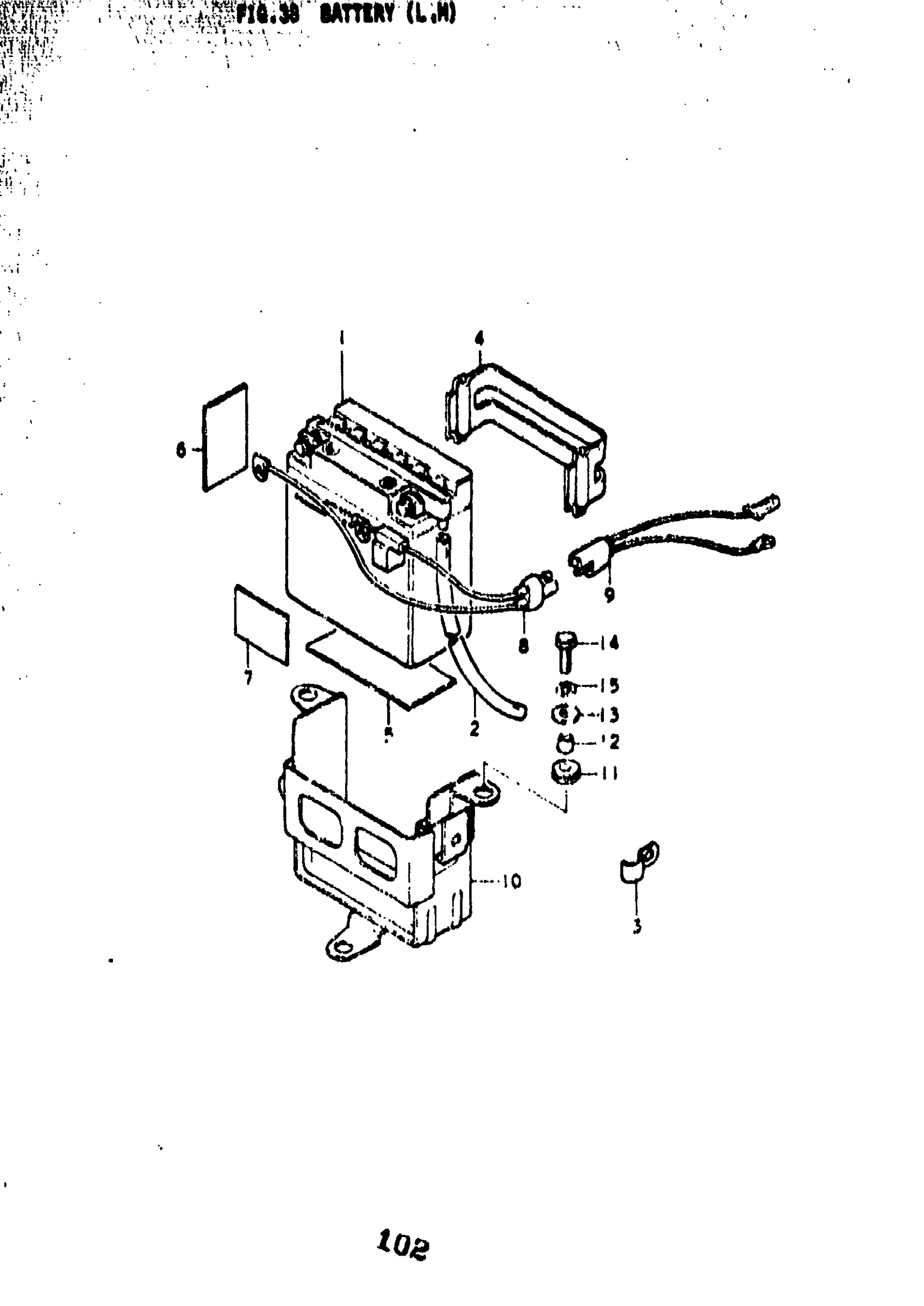

Suzuki TS400 (1977) BATTERY (L Diagram

#

Description
Price

1

BATTERY | 12V,5AH TO 33610-18010

33610-32210

Unavailable

2

HOSC, EXHAUST | TO 33680-31003

33680-31002

Unavailable

3

CLAMP

09403-09306

Unavailable

4

BNAD

09462-00028

Unavailable

5

PROTECTOR, BATTERY NO. 1

33652-32200

Unavailable

6

PROTECTOR, BATTERY NO. 2

33651-04100

Unavailable

7

PROTECTOR, BATTERY NO. 3

33652-37000

Unavailable

8

LEAD WIRE, BATTERY NO. 1

36860-32000

Unavailable

9

LEAD WIRE, BATTERY NO. 2

36870-36000

Unavailable

10

HOLDER, BATTERY

41540-32200

Unavailable

11

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

12

SPACER (6.5X9X7) | 8.1x10.5x9 This part replaces 09180-07005.

09180-06259

$2.48

13

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

14

BOLT This part replaces 01112-06208.

01500-06207

$2.28

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
